Derby's Street Lighting PFI Contract
Abbey Yard, Darley Abbey
The equipment being removed consisted of the following items in 1997:
Unique Number: | 22935 | Location: | 1ST FROM NEW RD | ||||
Postcode: | CC1 1RL | Road: | ABBEY YD | ||||
Road Number: | Parish: | DARLEY ABBEY | |||||
Sequence Number: | 1 | Patrol: | Z04 | ||||
Lamp Type: | SONE | Wattage: | 70 Watt | Control Type: | TS | ||
Lamps/Lantern: | 1 | Lanterns/Unit: | 1 | Control Setting: | 1 | ||
Lantern Type: | PT | Lantern Manuf: | Control Gear: | ||||
Height: | 5 m | Support Type: | CI | CAST IRON COLUMN/PILLAR | |||
Bracket Proj'n.: | m | Support Finish: | P | PAINTED COL/SIGN/PILL/GANTRY | |||
Bracket Type: | U/G or O/H: | ||||||
Board Code: | E76 | Status Code: | 0 | USUAL / NORMAL | |||
Service Owner: | B | Is this lamp/sign an Isolation Point ?: | N | ||||
EB Order number: | |||||||
No-supply sheet: | 0 | Isol Pt: | / Circuit: | / Seq: | |||
Unique Number: | 22936 | Location: | O/S NO 5 | ||||
Postcode: | CC1 1RL | Road: | ABBEY YD | ||||
Road Number: | Parish: | DARLEY ABBEY | |||||
Sequence Number: | 2 | Patrol: | Z04 | ||||
Lamp Type: | SONE | Wattage: | 70 Watt | Control Type: | TS | ||
Lamps/Lantern: | 1 | Lanterns/Unit: | 1 | Control Setting: | 1 | ||
Lantern Type: | PT | Lantern Manuf: | Control Gear: | ||||
Height: | 5 m | Support Type: | CI | CAST IRON COLUMN/PILLAR | |||
Bracket Proj'n.: | m | Support Finish: | P | PAINTED COL/SIGN/PILL/GANTRY | |||
Bracket Type: | U/G or O/H: | ||||||
Board Code: | E76 | Status Code: | 0 | USUAL / NORMAL | |||
Service Owner: | B | Is this lamp/sign an Isolation Point ?: | N | ||||
EB Order number: | |||||||
No-supply sheet: | 0 | Isol Pt: | / Circuit: | / Seq: | |||
The following photographs were taken on Sunday, 11th March 2012.
As the above records suggest, only two columns existed on this road; this is how it would remain after the PFI relighting scheme. Here, the two cast iron Revo 'Moseley' columns were set to be replaced with new specially-made cast iron columns supporting SUGG Camberwell lanterns.

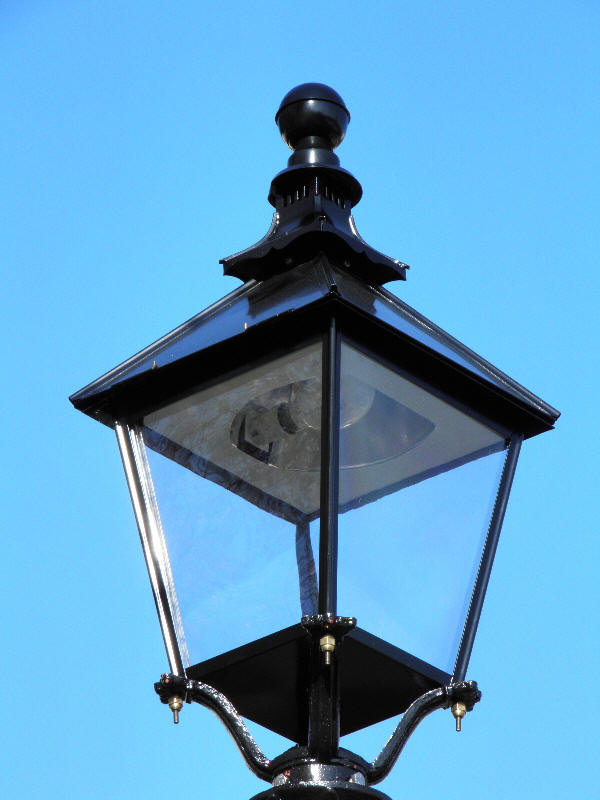

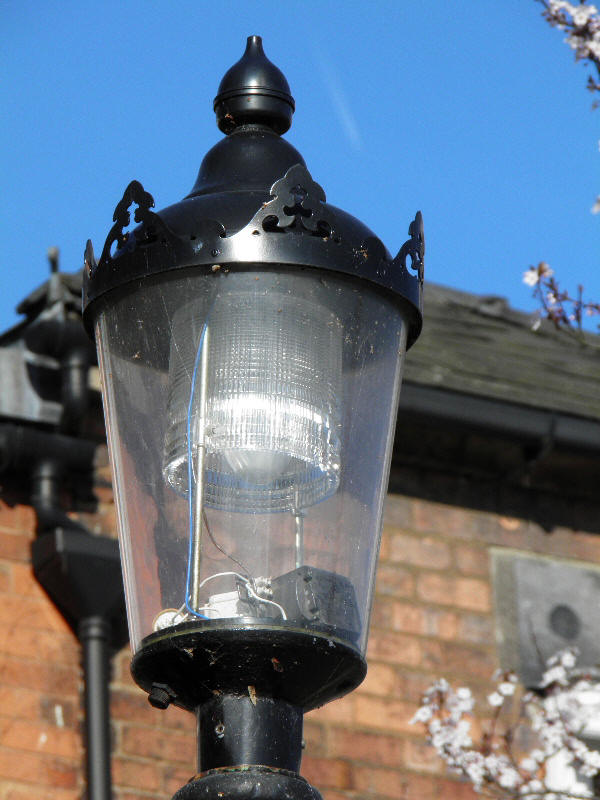

The new lantern runs a 70 Watt CDO-ET lamp; the Revo column supported a Phosco P111 running a 70 Watt SON lamp. Notice in the P111, how a replacement Philips ballast has been crudely placed alongside the (presumably) original Tridonic ballast. Given that the P111 is clearly fitted with a miniature photocell, and the above records suggest a time switch controlled installation, the likelihood is that the lantern fitted here in 1997 was not the P111.
The following Revo column supported an example of the P111's big brother - the imposing P109.
The copper securing finial was missing from atop the P109's canopy. Its bowl had also become cloudy through age.
