Derby's Street Lighting PFI Contract

Chester Green Road, Darley Ward

The equipment being removed consisted of the following items in 1997:

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
2 25860 OPP 14 SXPL2 35
3 25861 O/S 28 SXPL2 35
4 25862 OS 44 SXPL2 35
5 25863 OPP MARCUS ST SXPL2 35
6 25864 OPP 68/70 SXPL2 35
7 25865 OPP 82 SXPL2 35
8 25866 OPP 98/100 SXPL2 35
9 25867 NEAR 108 SXPL2 35
10 102070 SPLIT OPP B/MAKERS FL 11
11 102071 ON SPLITTER OPP NO 8 FL 11
12 102072 ON SPLITTER OPP NO 8 FL 8
13 102073 ON PARK OPP NO 8 FL 8

The following photographs were taken on Saturday, 11th June 2011.

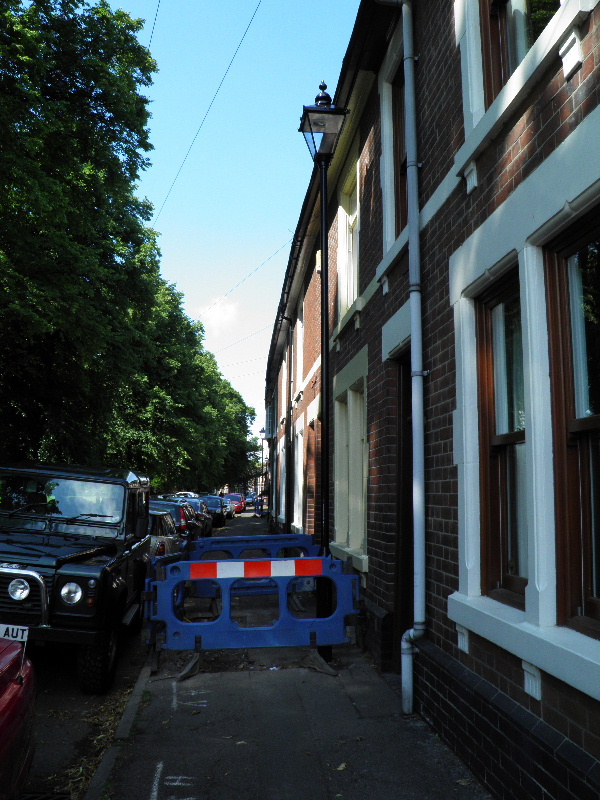

As this road falls within the Chester Green Conservation Area, the new lighting here was a little different to the normal equipment installed on the PFI's relighting schemes - the columns are 5 m in height; painted black, and each was fitted with a Metcraft Victoria post-top lantern running a 45 Watt CPO-TW lamp.

Only two columns were due for removal here - the rest had been replaced in the late 1990s with similar 'heritage' lanterns fitted to Abacus base-hinged columns. The first of these two columns was located within the branches of an adjacent tree; unsurprisingly, its replacement was situated on the opposite side of the road.



A Thorn Beta 5 35 Watt SOX lantern was fitted to this column. The presence of the branches made seeing the lantern quite difficult!



Additional new columns had been installed along the road.

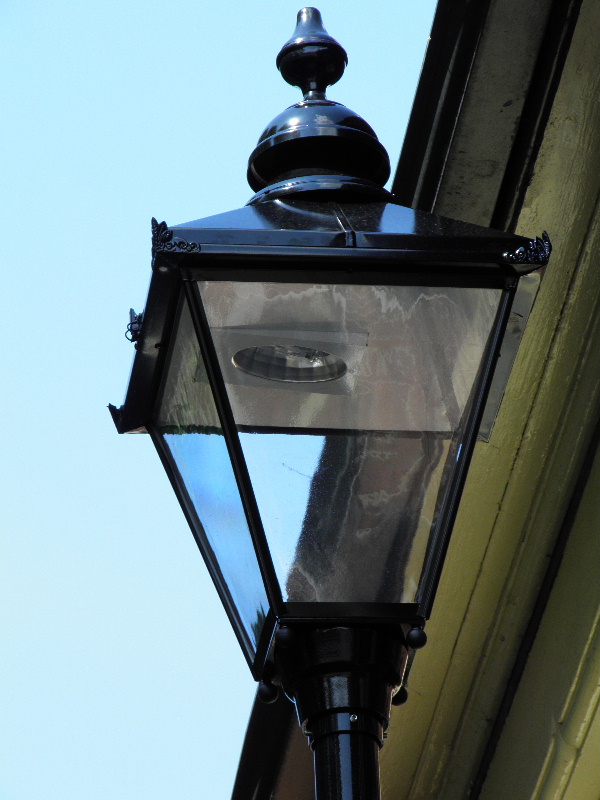

The reflector in the new lanterns is tilted by five degrees, in order to allow a better distribution across the entire carriageway.




The second outgoing column also supported a Beta 5. albeit an older, top-entry version.




The lamp looked about ready for replacement anyway.
