Derby's Street Lighting PFI Contract

Prescot Close, Mickleover

Columns being removed on this road were:

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 60479 OS NO 1 SXPL3 35
2 60480 OS NOS 8/10 SXPL3 35
3 60481 OS NOS 7/9 SXPL3 35
4 60482 O/S NOS 15/17 SXPL2 35
5 60483 ADJ NO 27 SXPL3 35 Y - Isolates 60485, 60486 and 60487
6 60484 FP REAR OF NO 27 SXPL3 35
7 60485 F/PATH ADJ NO 319 LADYBANK ROAD SXPL3 35
8 60486 O/S NO 45 SXPL3 35
9 60487 O/S NOS 30/32 SXPL3 35
10 90633 OS NOS 30/32 SXPL3 35

The GEC Z9532 featured on the Local Z9530s page was the first column due for replacement on this road.

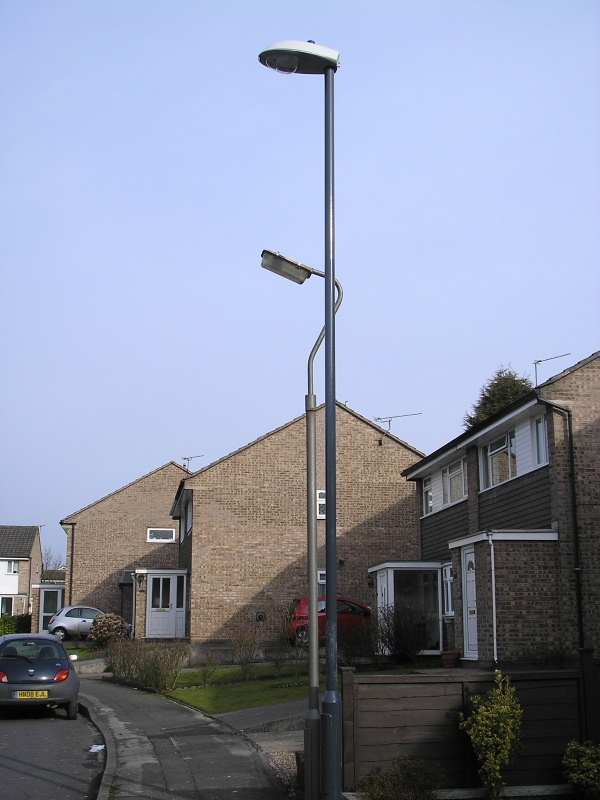

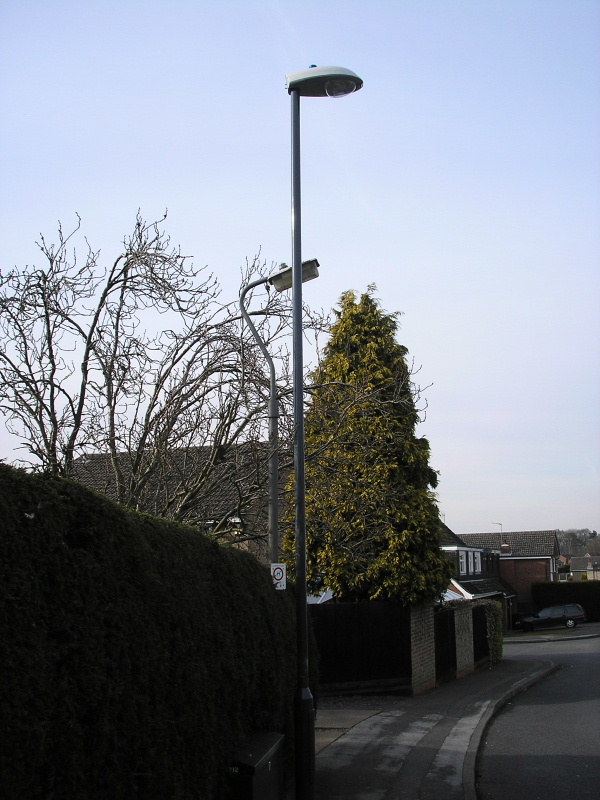

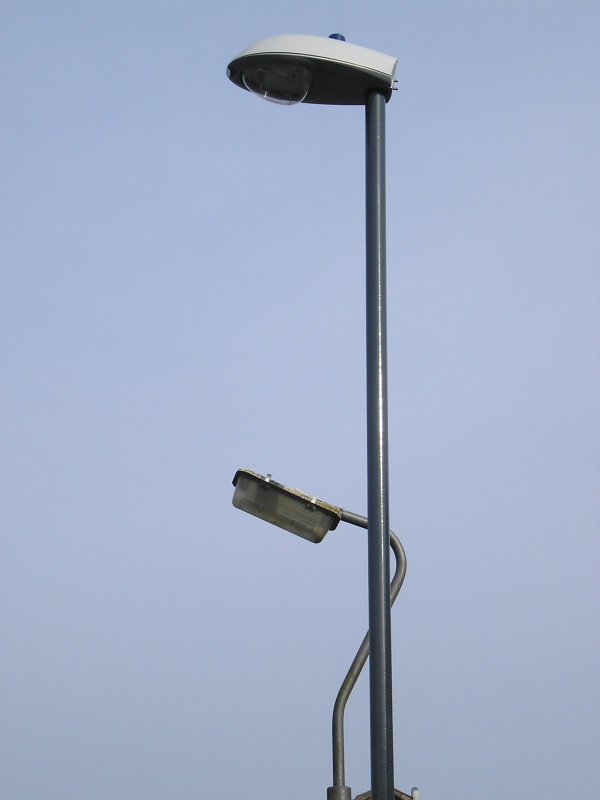

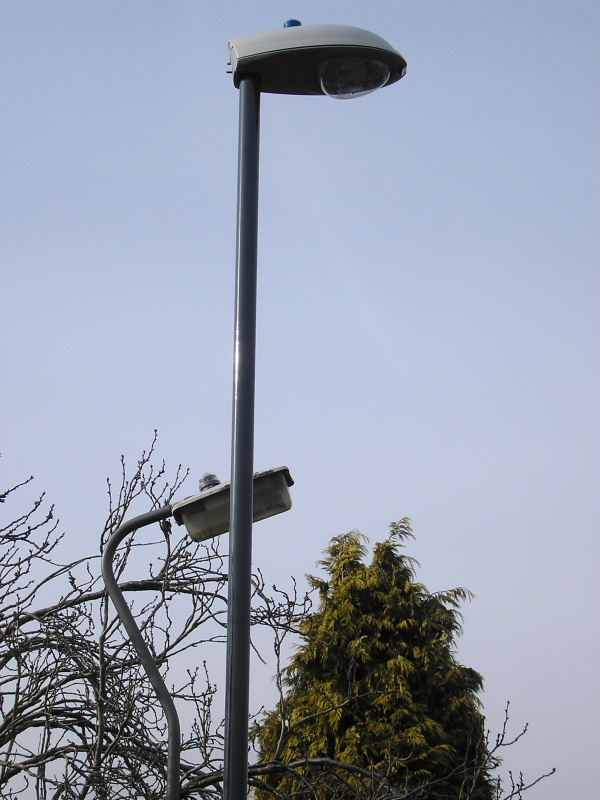

The difference in height between the old and new columns is evident here; even the tall overall height of the outgoing GEC Z5698U lantern is no match for the 6 m column.
