Derby's Street Lighting PFI Contract
Scropton Walk, Shelton Lock
The equipment being removed consisted of the following items in 1997:
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 34423 | ADJ 301 SINFIN AVE | SXPL1 | 35 | |
2 | 34424 | REAR OF 6/8 | SXPL1 | 35 | |
3 | 34425 | SIDE OF NO 10 | SXPL1 | 35 | Y |
4 | 34426 | FP O/S NO 5 | SXPL1 | 35 | |
5 | 34427 | SIDE OF NO 7 | SXPL1 | 35 |
The following photographs were taken on Sunday, 19th December 2010.

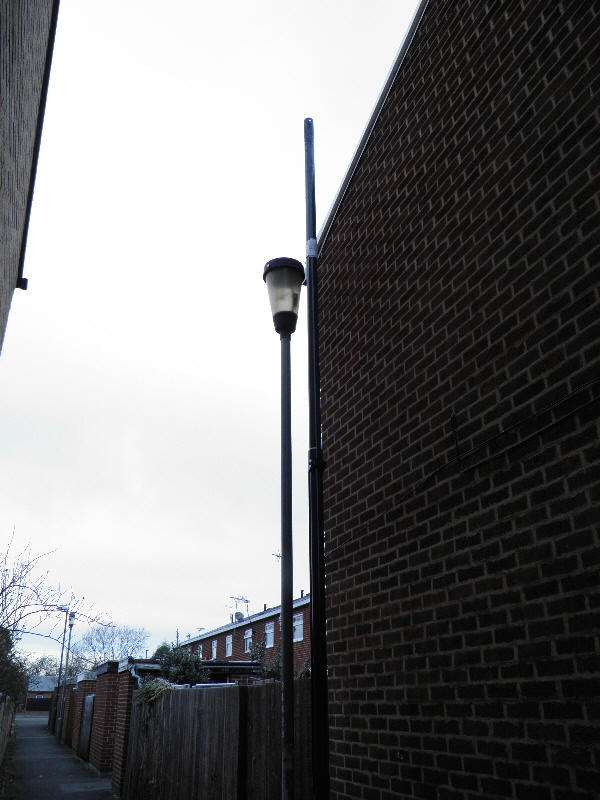

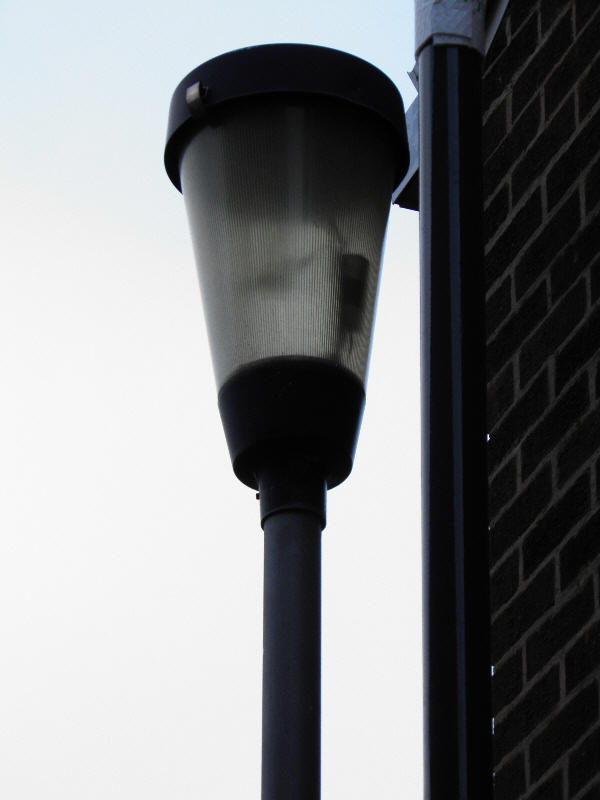

The first column supported a GEC Z5698U post-top lantern. A mystery component was visible within the lantern; this is possibly an ignitor. If this is what the device is, the ignition system built into the Z5698U's Z1616P ballast has failed, and the external ignitor has been installed instead.

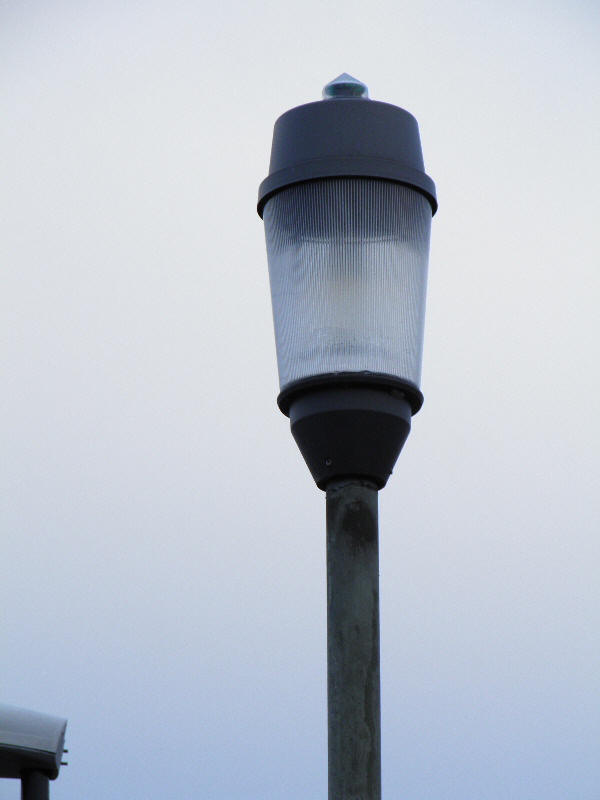

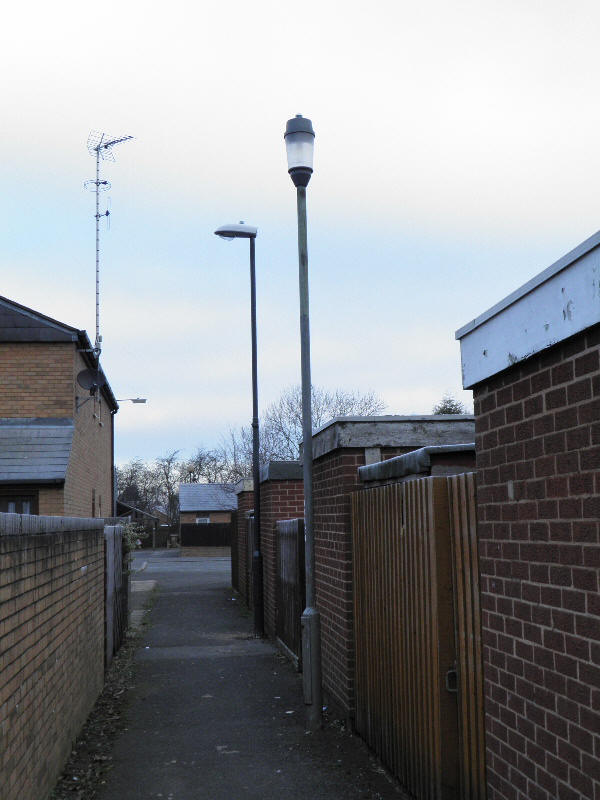

The second column supported a Thorn Gamma Basique - never a particularly common lantern in Derby. The extended 'plant pot' canopy on this lantern signifies that the lantern is fitted with a 35 Watt SOX lamp; the taller canopy being required due to the length of the lamp.

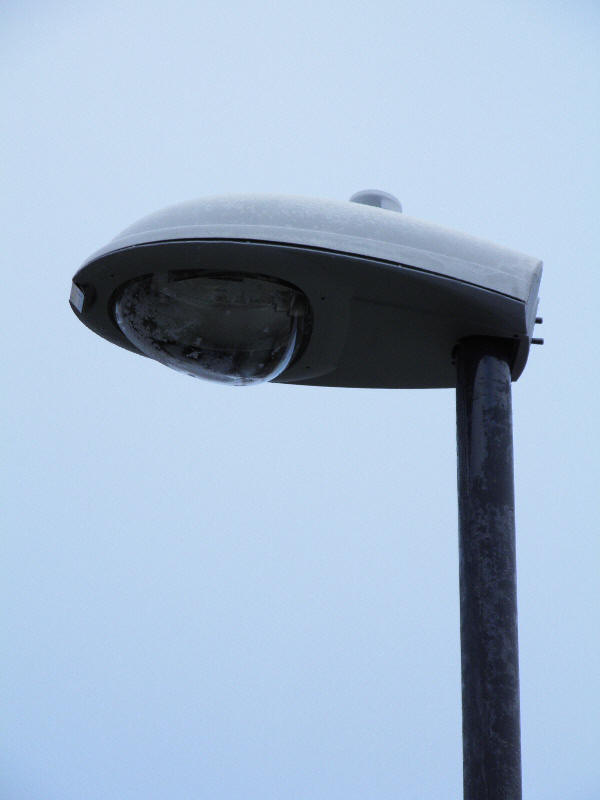

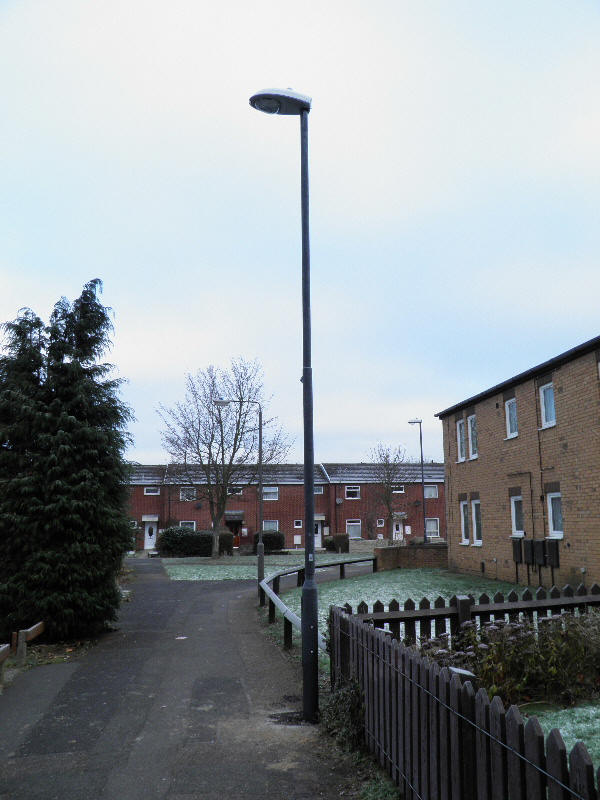

Nearby, the replacement column awaited a power supply.
