Derby's Street Lighting PFI Contract
Agard Street, City Centre
The equipment being removed consisted of the following items in 1997. Since then, construction Derby's Inner Ring Road has been completed; meaning that not all items listed here were still extant by the time that the PFI scheme commenced.
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 101556 | CNR OF FORD ST O/S CLUTCH CENTRE | SONT | 150 | Y |
2 | 101557 | 2 FROM FORD ST ON OLD BRIDGE SIT | SONT | 150 | |
3 | 101558 | 3RD FROM FORD ST - OPP NO 8 | SONT | 150 | |
4 | 101559 | 4 FROM FORD ST NEAR THE COTTAGE | SONT | 150 | |
5 | 101560 | 5 FROM FORD ST OS UNIVERSITY ACC | SONT | 150 | |
6 | 101561 | 6 FROM FORD ST O/S TAX OFFICE | SONT | 150 | |
7 | 101562 | 7 FROM FORD ST CNR SEARL ST | SONT | 150 | |
8 | 101563 | 8 FROM FORD ST - O/S NO 44 | SONT | 150 | |
9 | 101564 | 9 FROM FORD ST NEAR JUNC BRIDGE | SONT | 150 | |
10 | 106408 | SPLITTER JUNC FORD ST | FL | 11 | |
11 | 106409 | ON L101556 | FL | 8 | Y |
The following photographs were taken on Sunday, 7th August 2011:

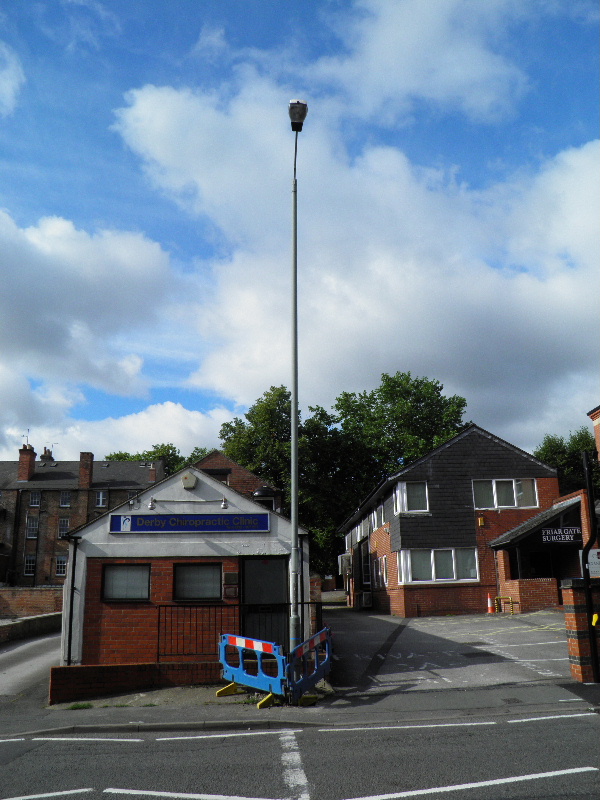

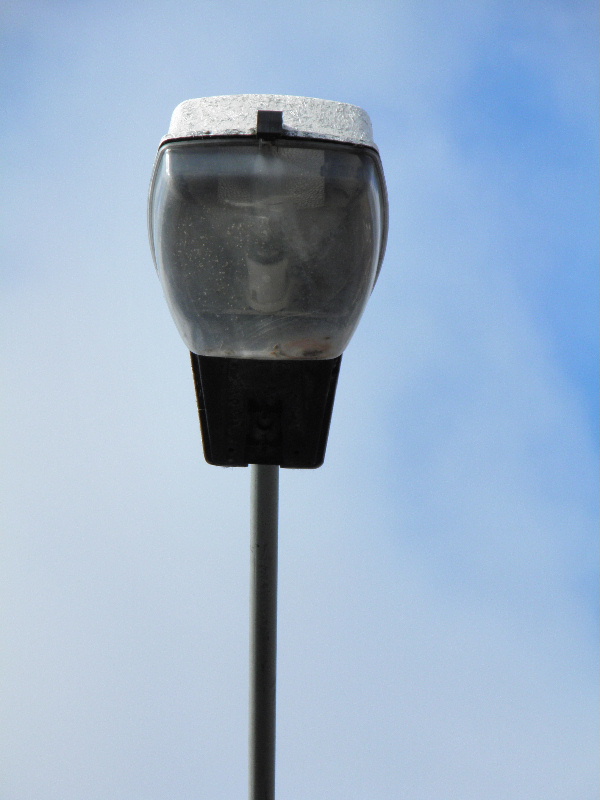

The first 'old' column to survive the Inner Ring Road scheme ended its days supporting a 1990s' Thorn Alpha 8 150 Watt SON-T lantern.
As a result of corrosion at the outgoing column's bracket joint, there was a noticeable difference in colour between the column and the bracket.
A Philips SGS 204 lantern was next.
The lantern's bowl was rather scorched immediately below the lamp.
Another Alpha 8 then followed.
This lantern's bowl showed signs of water ingress.

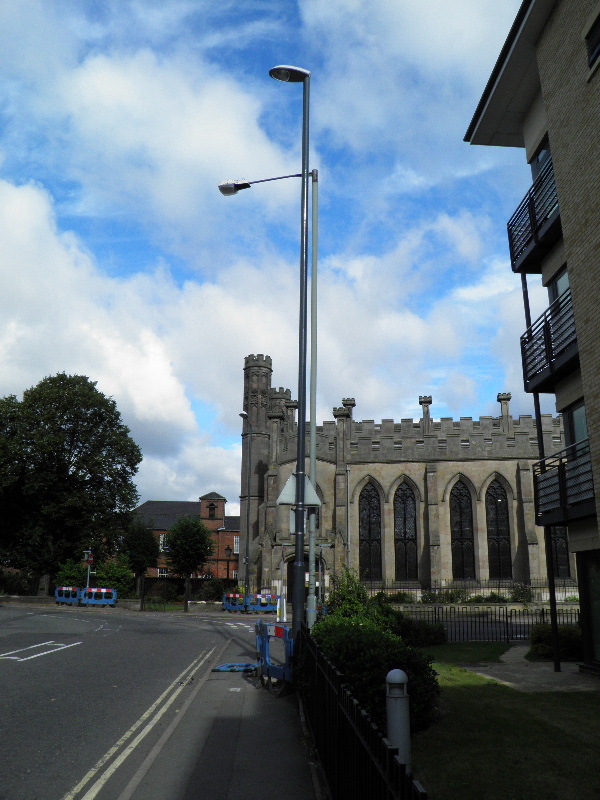

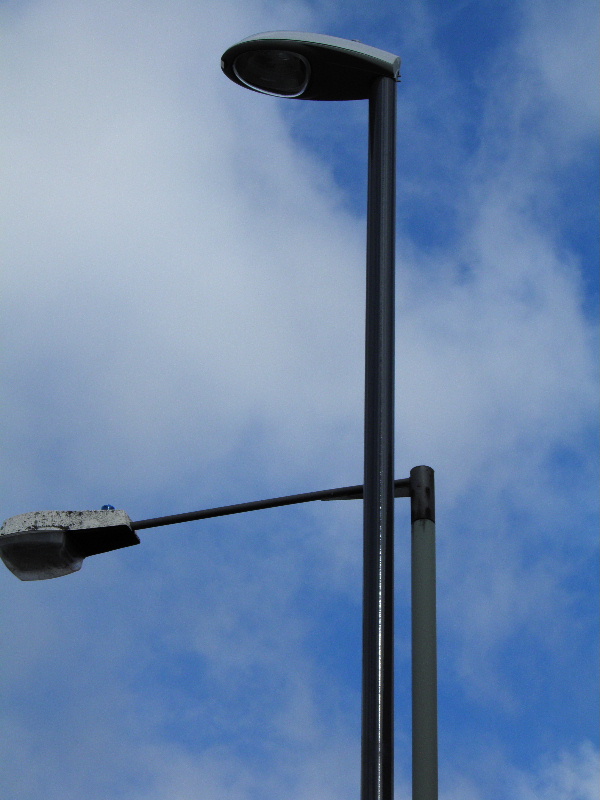

The new lanterns are the 'large' (SGS 254) version of the Philips Iridium; as these are internally sealed to IP66, and constructed in glass, rather than polycarbonate, they shouldn't (in theory, anyway!) show either of the two aging symptoms shown above.
Another equally-grubby Alpha 8 was situated alongside the pedestrian crossing. The fibres in the lantern's GRP canopy looked to be shedding rather heavily.
The final Alpha 8 ended its days fitted with a blue cone Royce Thompson SC1000 photocell.
