Derby's Street Lighting PFI Contract

Arleston Lane, Sinfin

The equipment being removed consisted of the following items in 1997:

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 115552 NR DISTRICT CENTRE N/A N/A Y
2 115556 CNR REDWOOD RD N/A N/A Y
3 115557 NEAR SUBWAY N/A N/A Y
4 115561 NEAR SCHOOL N/A N/A Y
5 115565 O/S NO 500 N/A N/A Y
6 72290 FIGHTING COCKS CPK SXPL1 90
7 72291 OS FIGHTING COCKS SXPL1 90
8 72292 NR SUBWAY/ OP F/P SXPL1 90 Y
9 72293 OS 11/13 RYAN CL SXPL1 90
10 72294 OPP REDWOOD RD SXPL1 90
11 72295 OS SOCIAL CLUB SXP1 90
12 72296 OP SOCIAL CLUB SXP1 90
13 72297 OS MOOR CHURCH SXP1 90
14 72298 OS CHURCH CAR PARK SXP1 90
15 72299 OS GATEWAY CAR PK SXP1 90
16 72300 OS SINFIN SCHOOL SXP1 90
17 72301 NEAR SCHOOL ENTRY SXP1 90
18 72303 OS SINFIN SCHOOL SXP1 90
19 72303 ISLAND/FRMHOUSE RD SXP2 135
20 72304 ADJ GATEWAY ACCESS SXP1 135
21 72305 OS 467/ON ISLAND SXP2 135
22 72306 ADJ HARRIER WAY SXP2 135
23 72307 O/S NO 473 SXPL1 90
24 72308 OS 502/504 SXPL1 90
25 72799 O/S NO 477/479 SXPL2 35
26 72800 O/S NO 485/487 SXPL1 35
27 72801 ADJ NO 493 SXPL1 35
28 102837 JUNC GRAMPIAN WY FL 11
29 102838 JUNC GRAMPIAN WY FL 11
30 115553 NEAR DISTRICT CENTRE FL 11
31 115554 NEAR DISTRICT CENTRE M3 80
32 155555 NR DISTRICT CENTRE FL 11
33 115558 NEAR SUBWAY FL 11
34 115559 NEAR SUBWAY M3 80
35 115560 NEAR SUBWAY FL 11
36 115562 NEAR SCHOOL FL 11
37 115563 NEAR SCHOOL M3 80
38 115564 NEAR SCHOOL FL 11
39 102839 JUNC FARMHOUSE RD FL 11
40 102840 JUNC FARMHOUSE RD FL 11
41 102841 OPP ARLESTON LN FL 8
42 102842 OPP FARMHOUSE RD FL 8
43 102843 OPP HARRIER WY FL 8
44 102844 OPP ARLESTON LN FL 8
45 102845 JUNC FARMHOUSE RD FL 11
46 102846 JUNC FARMHOUSE RD FL 11

The following photographs were taken on Sunday, 27th March 2011. The outgoing lighting had (only just) been removed by this date; however, what had been installed made for interesting viewing on its own...

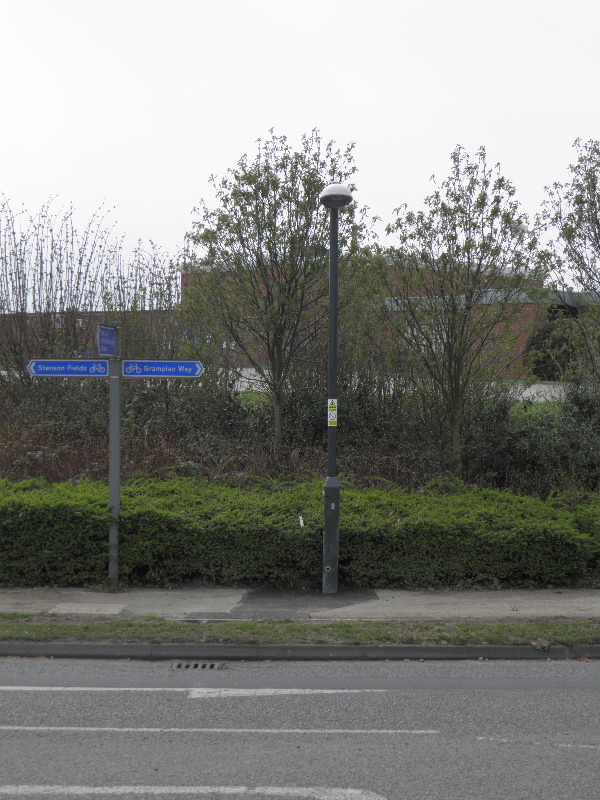

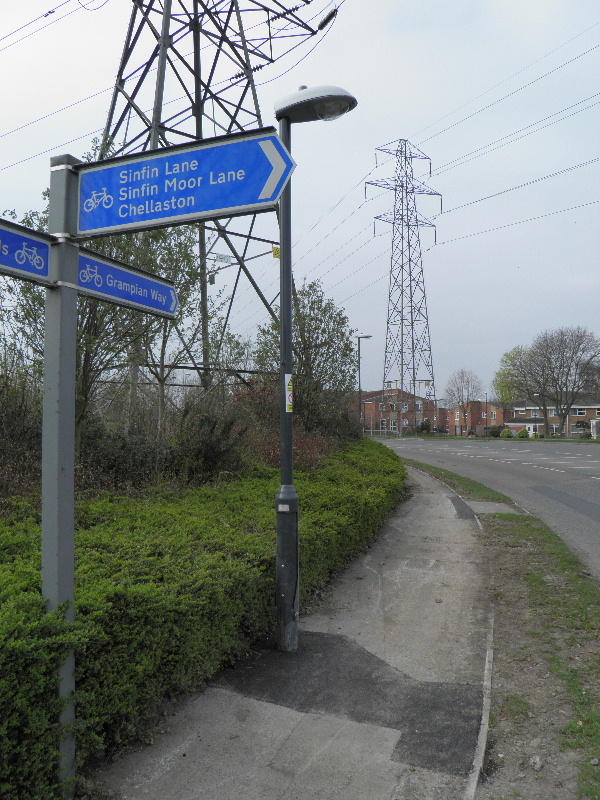

Owing to the proximity of overhead high voltage electricity transmission lines at this location, the columns located directly beneath the lines were base-hinged, for safety. The lines at one particular point were especially low; with the result that a very short (no more than 4 m as an absolute maximum) column had been installed.

The low mounting height meant that the lantern could be pictured with hardly any camera zoom at all!



This close-up of the lantern's Royce Thompson SC1000/SAV photocell revealed that the lantern was set to activate when the ambient light level fell below 35 Lux, and then to deactivate when ambient light levels surpassed 18 Lux the following morning.




Video

Day
