Derby's Street Lighting PFI Contract
Calver Close, Oakwood
The equipment being removed consisted of the following items in 1997.
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 6927 | OS 91 VESTRY RD | SXPL2 | 35 | |
2 | 6928 | OS NO 3 | SXPL2 | 35 | |
3 | 6929 | ADJ NO 15 | SXPL2 | 35 | |
4 | 6930 | ON FP. OPP NO 24 | SXPL2 | 35 |
The following photographs were taken on Sunday, 7th November 2010.

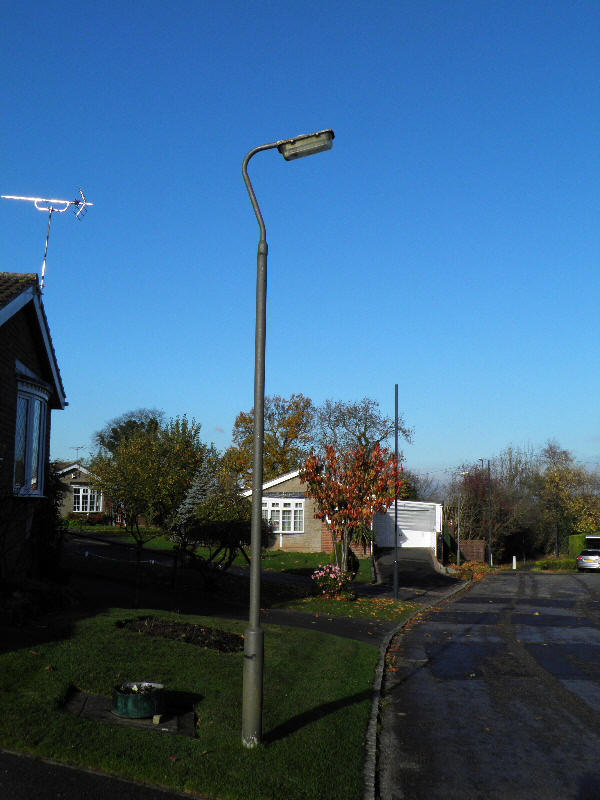

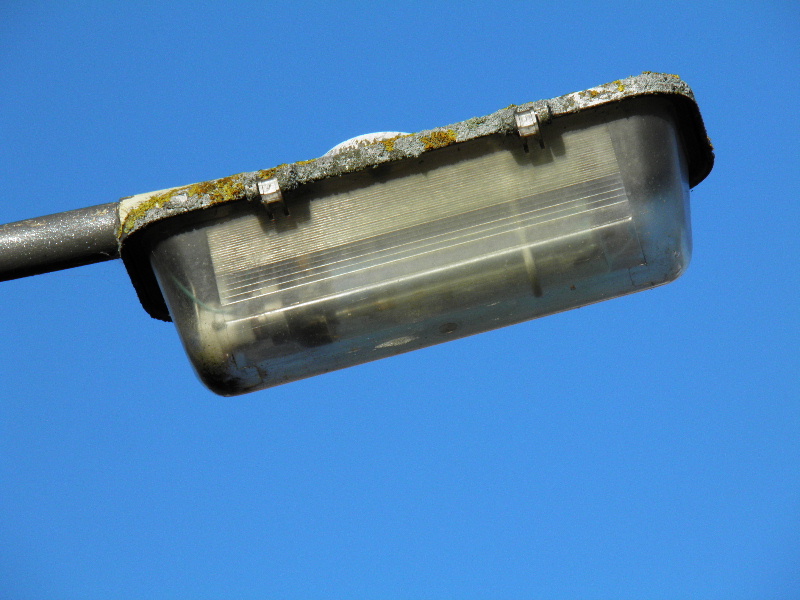

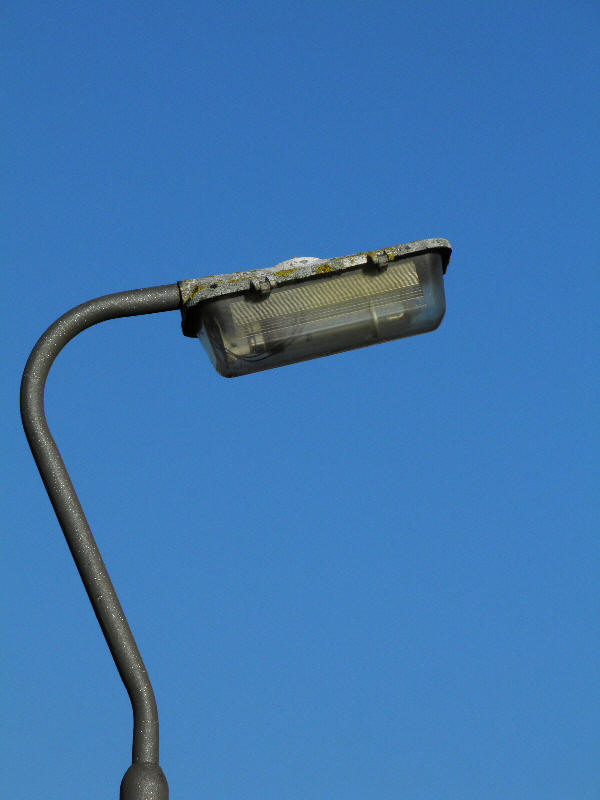

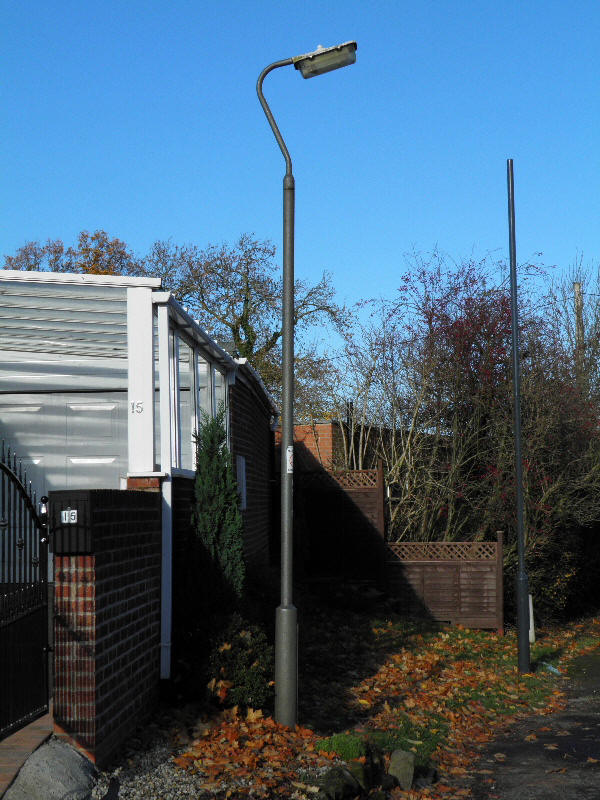

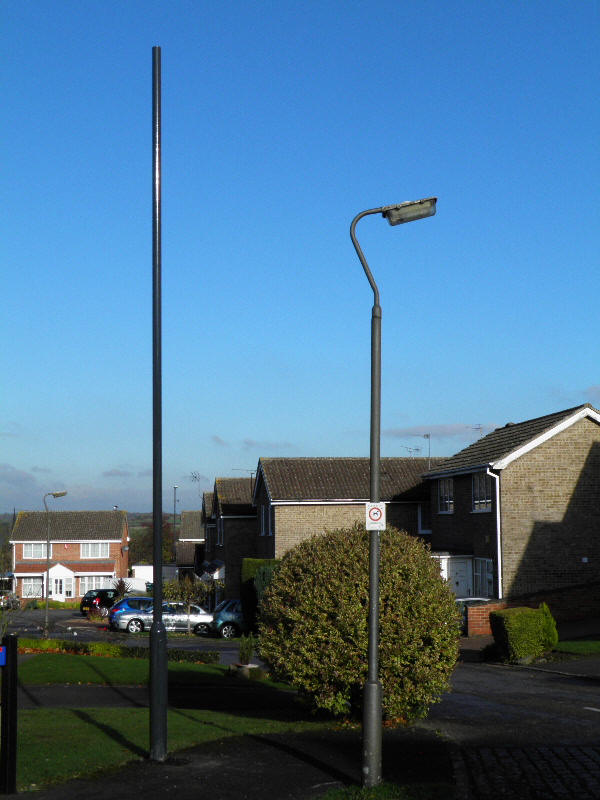

The three roadway columns all supported remotely-geared Simplex Aries 35 Watt SOX lanterns at the time of removal.

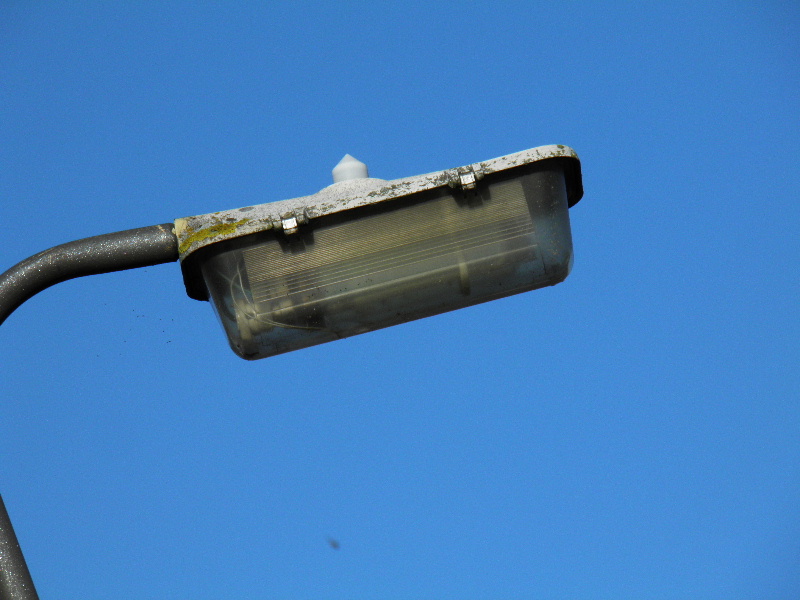

A Sirebeck S400 two-part cell detector was fitted to this lantern.

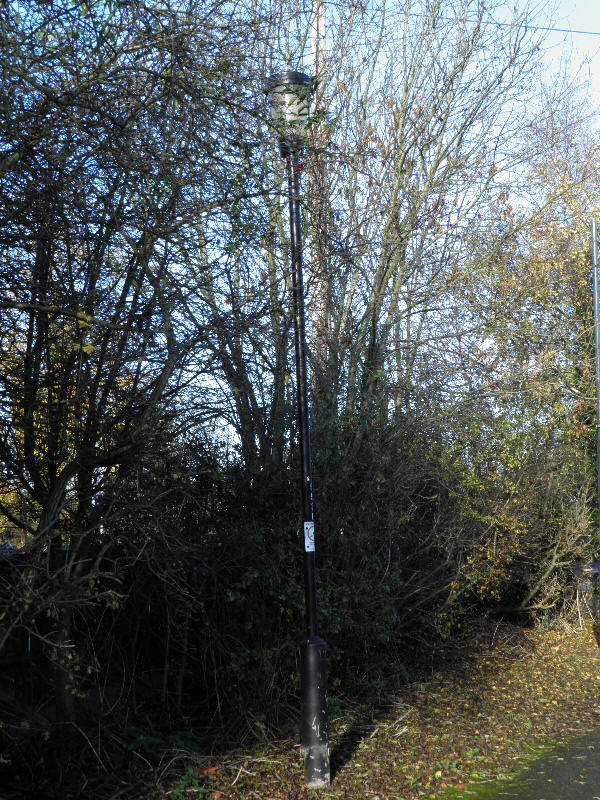

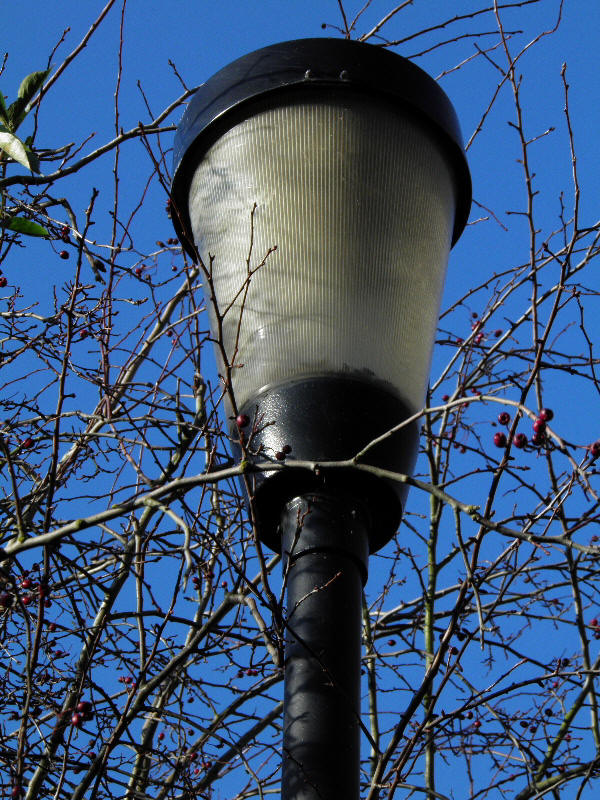

A GEC Z5698U post-top lantern attached to an Abacus base-hinged column provided illumination on the footpath leading to Mansfield Road.
