Derby's Street Lighting PFI Contract

Downing Road, City Centre (Part One)

The equipment being removed consisted of the following items in 1997:

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 26958 ADJ ENGMENT LTD SXPL2 55
2 26959 O/S BUILDER'S YARD SXPL2 55
3 26960 O/S BUILDER'S YARD SXPL2 55
4 26961 OPP A.H. ALLEN SXPL2 55
5 26962 O/S SUPERTORQUE LTD SXPL3 55
6 26963 OS DCA HEATING LTD SXPL2 55
7 26964 O/S A.H. ALLEN SXPL1 55
8 26965 OS E.M.C. OLIVETTI SXPL2 55
9 26966 OP E.M.C. OLIVETTI SXPL2 55
10 26967 OP J.F.H. HILL & CO SXPL2 55
11 26968 OPP A.E. HIBBS LTD SXPL2 55

The following photographs were taken on Saturday, 13th November 2010:

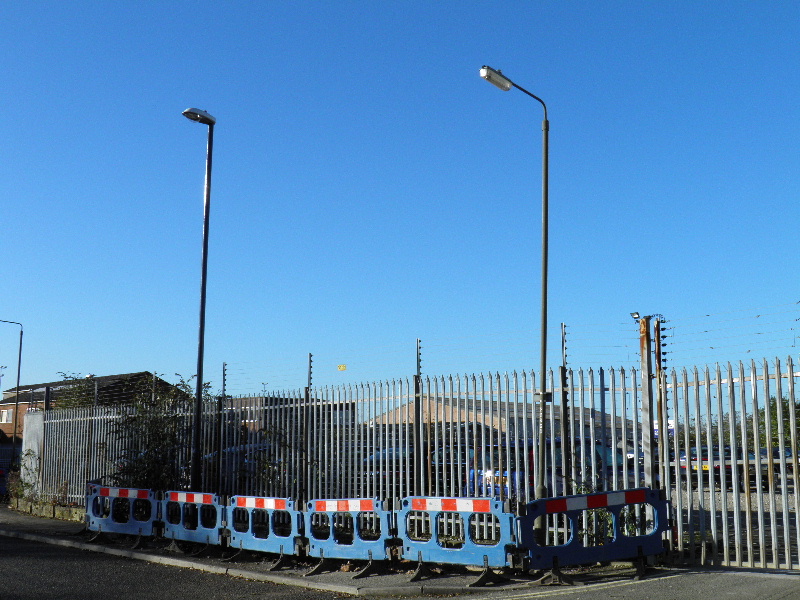

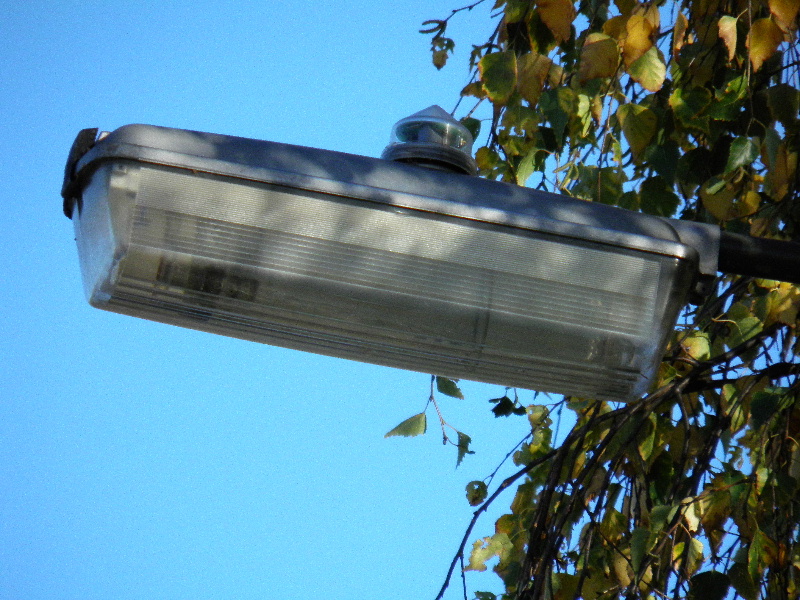

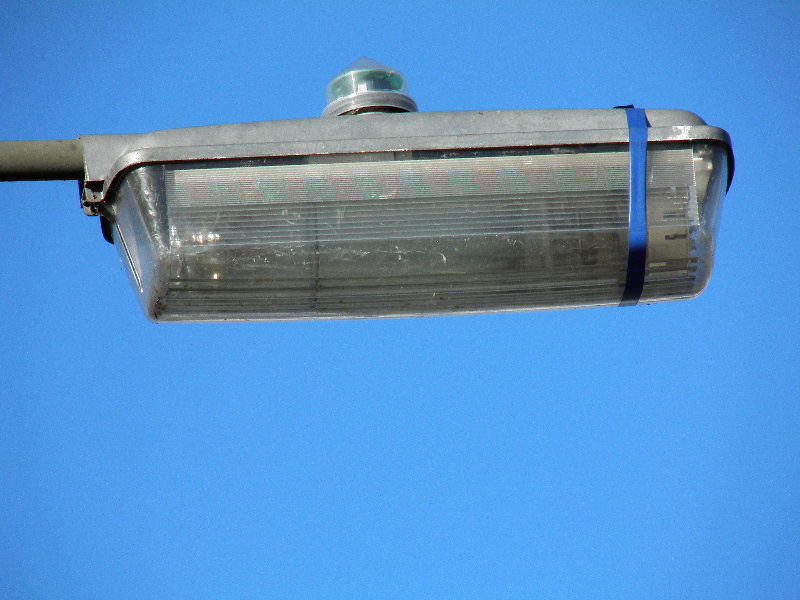

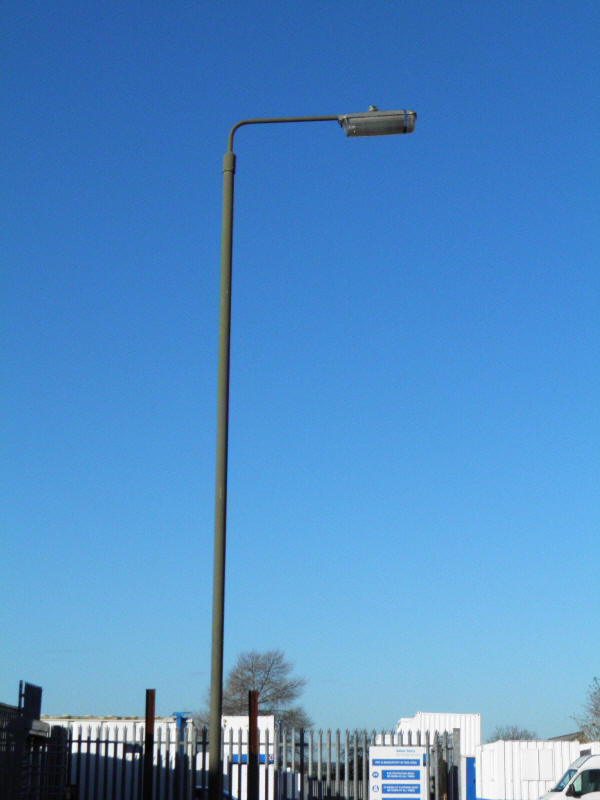

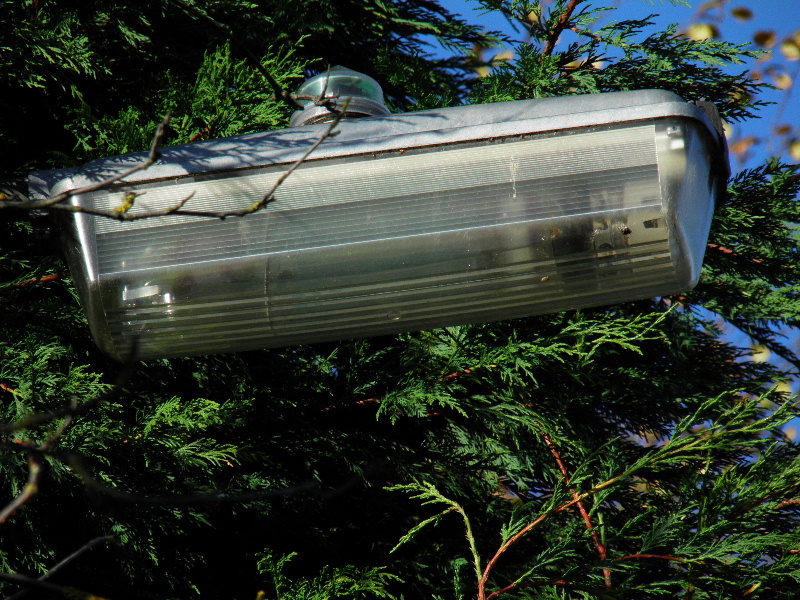

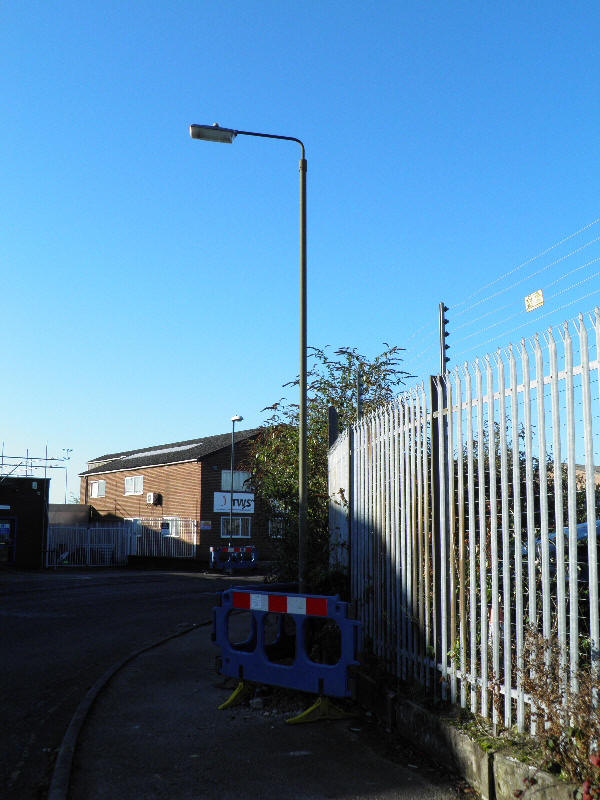

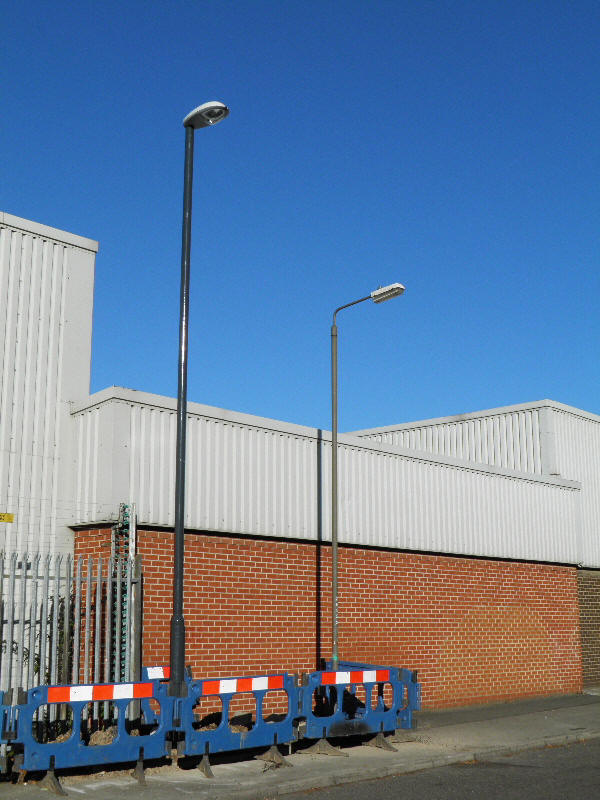

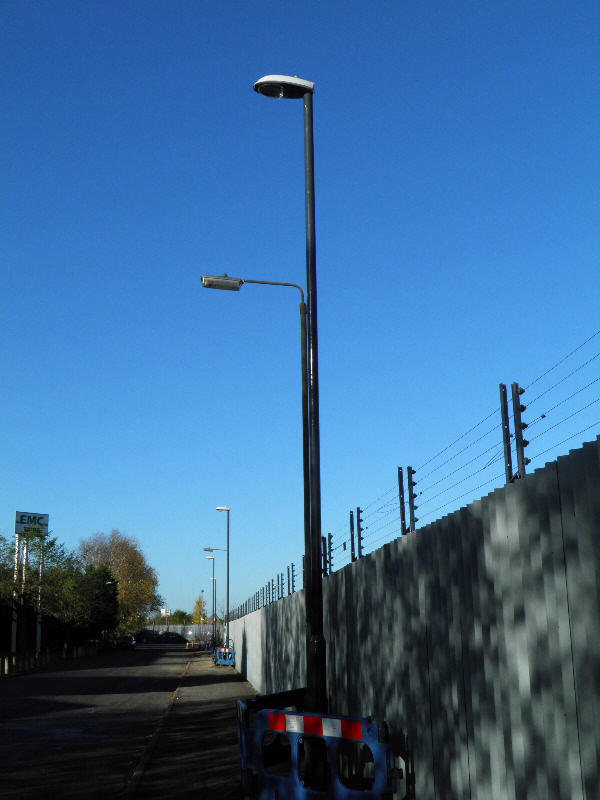

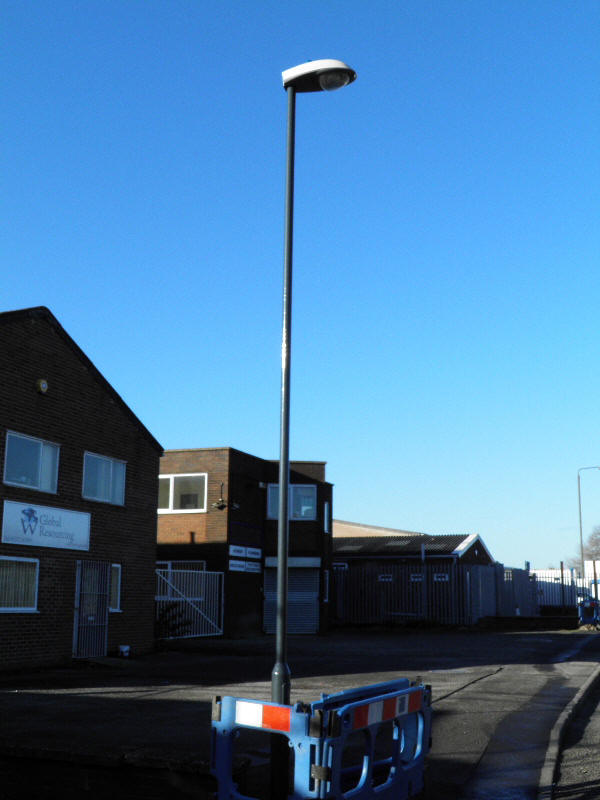

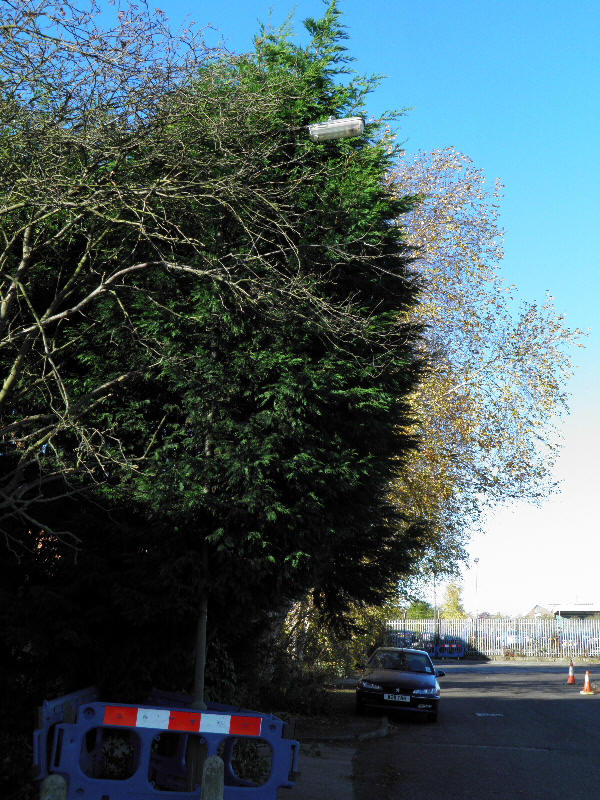

All but one of the outgoing columns along here were fitted with Thorn Beta 2 55 Watt SOX lanterns.

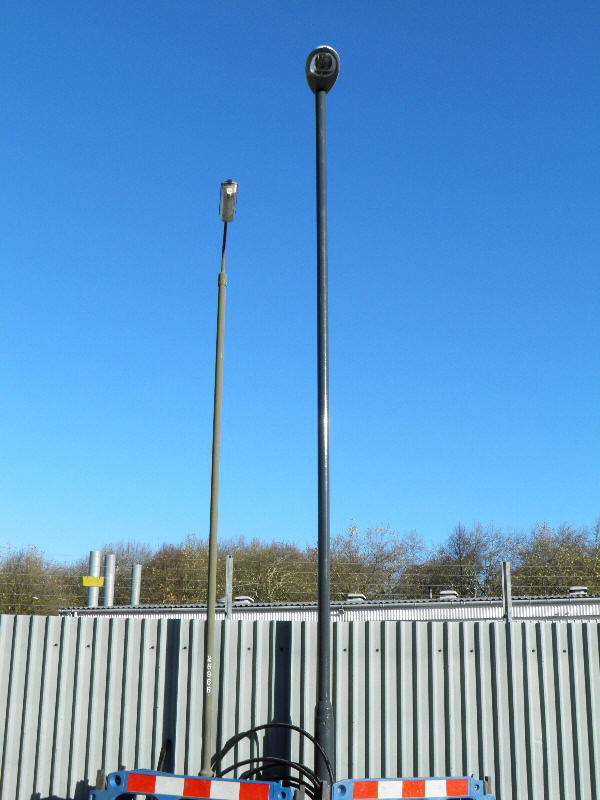

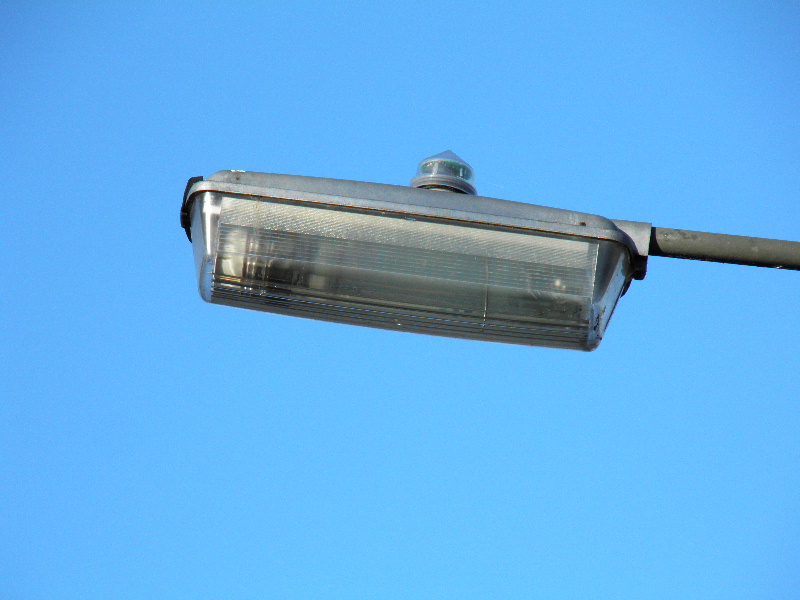

A Philips MI 36 was fitted to the second column.

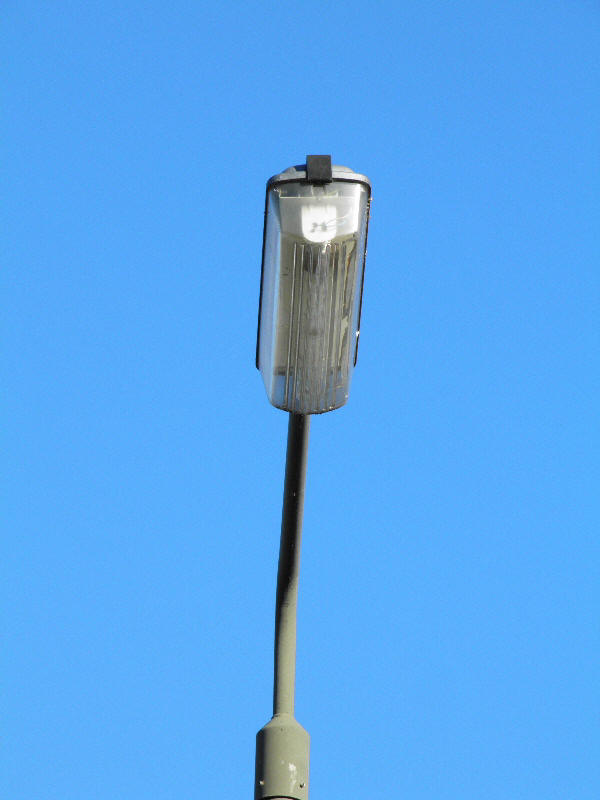

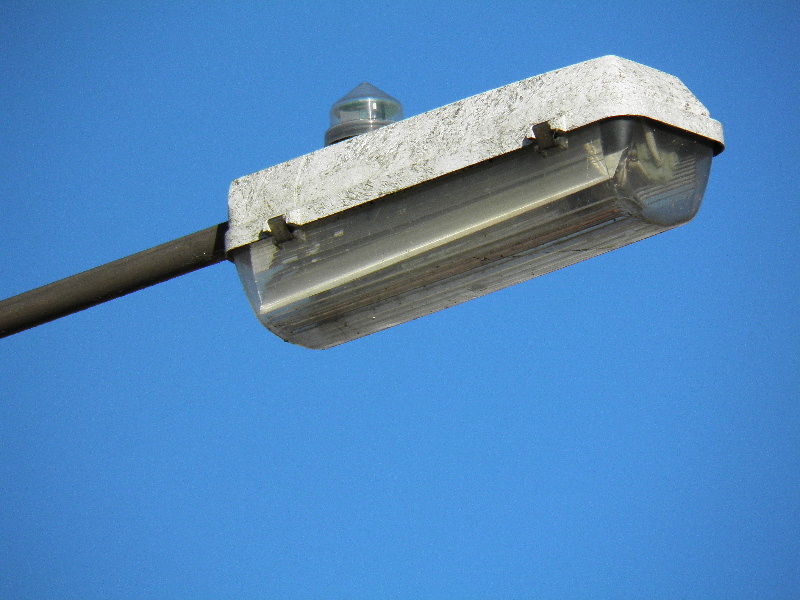

This close-up shot reveals that the MI 36's reflector had worked loose from its internal mountings.

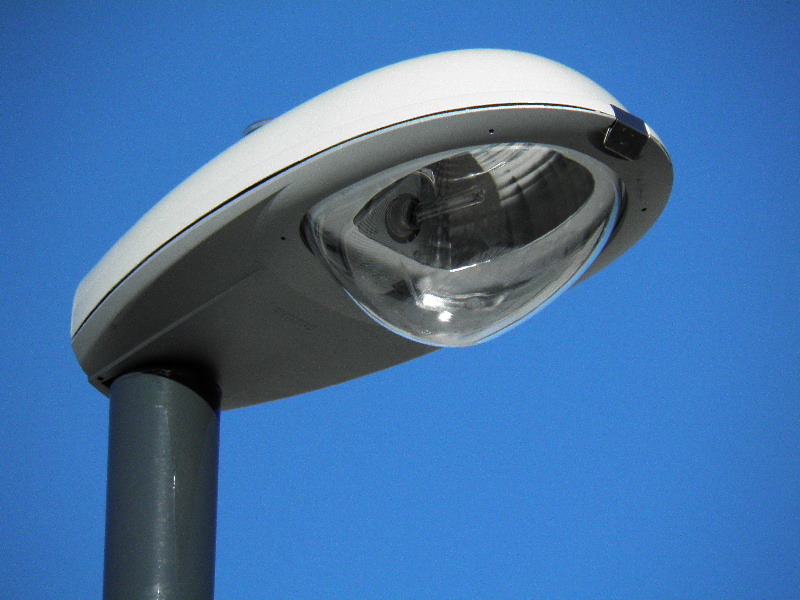

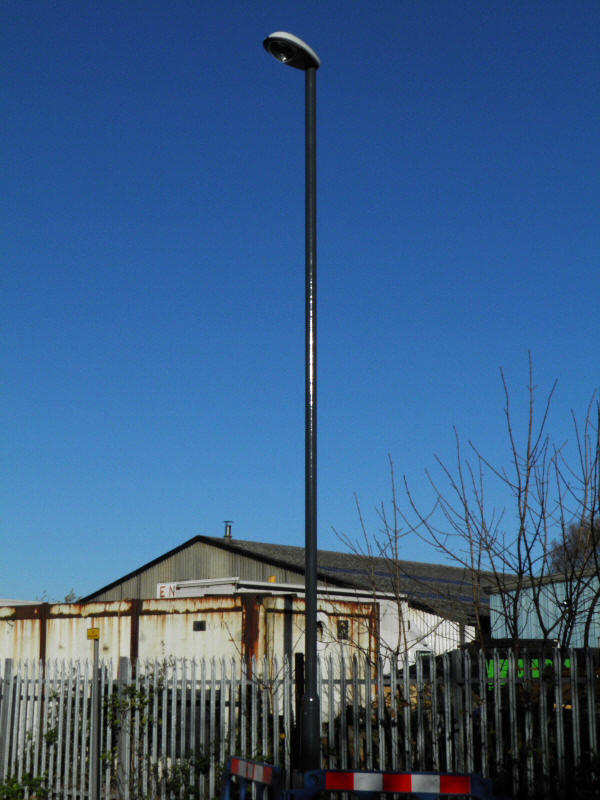

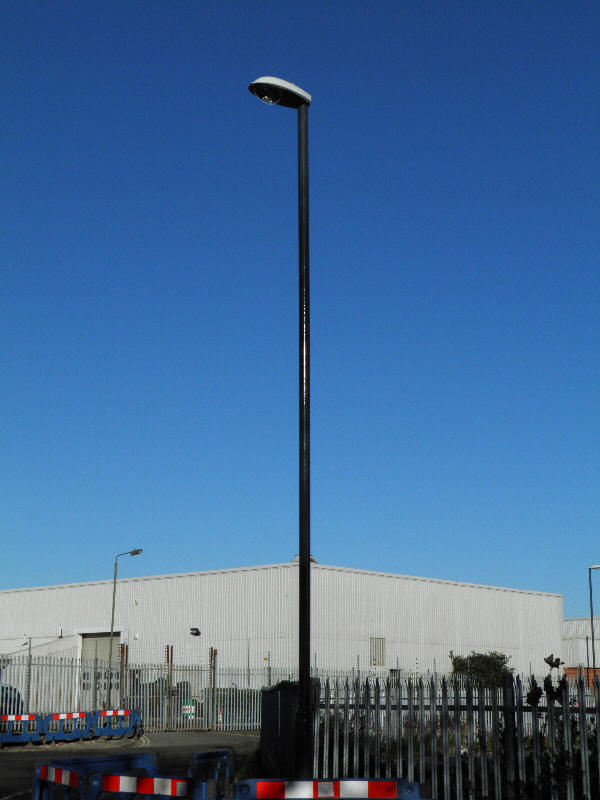

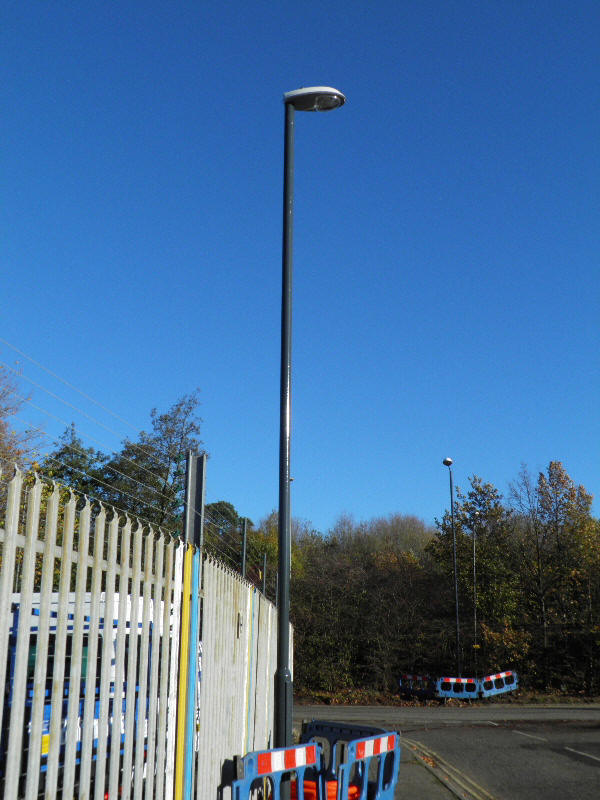

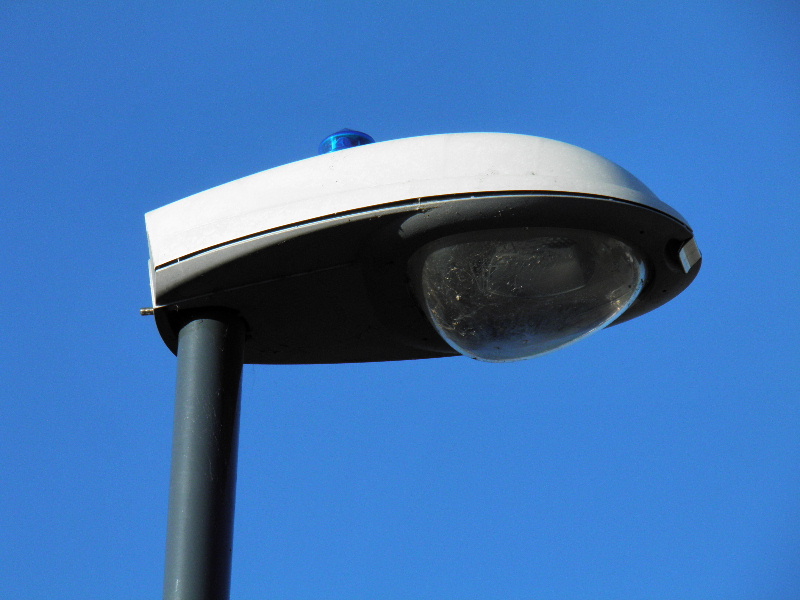

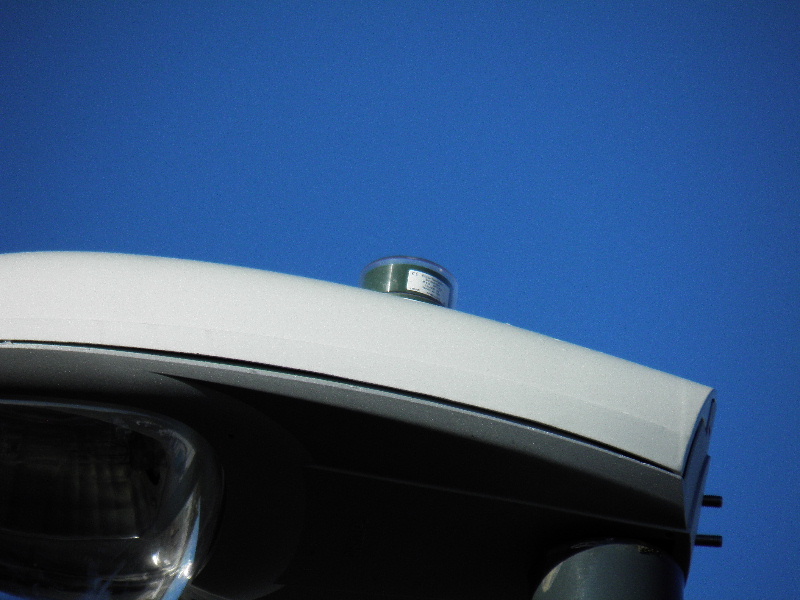

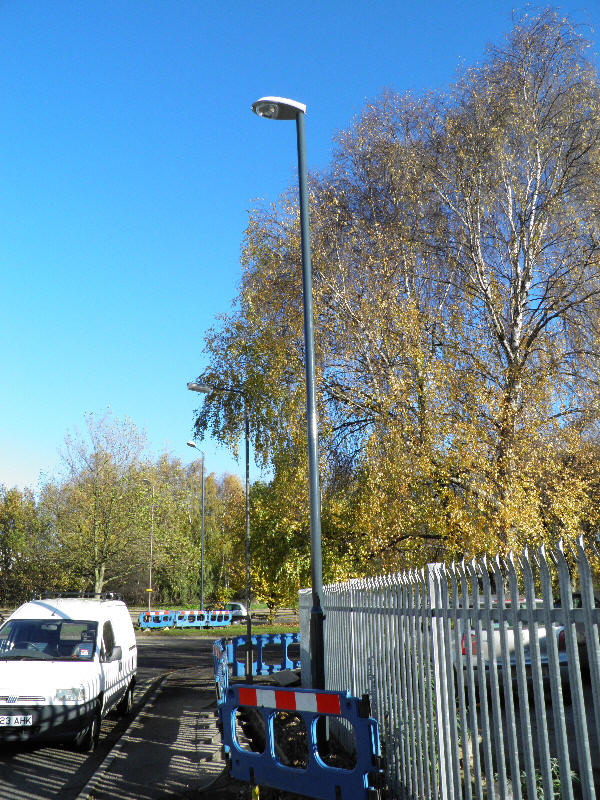

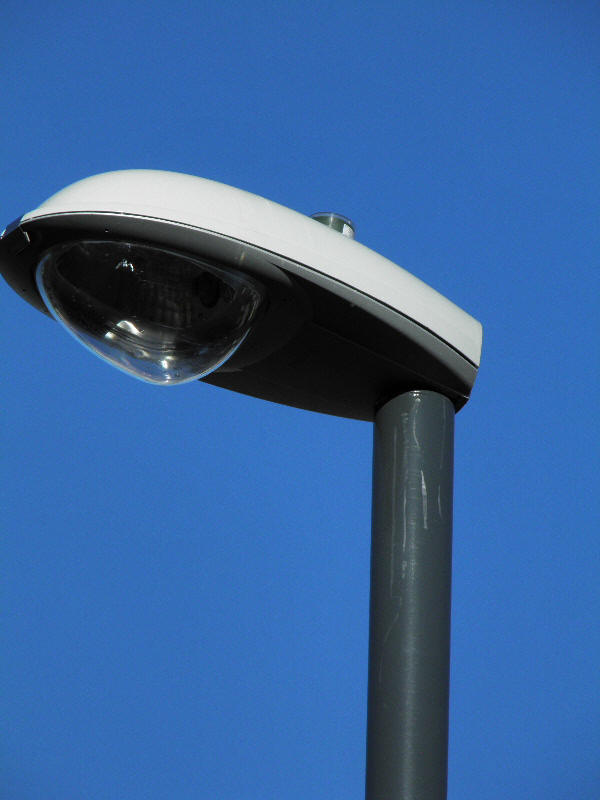

The blue (70 Lux) SC1000 photocell fitted to this Iridium suggests that this column and lantern may have been installed prior to this scheme commencing; perhaps the SOX column at this location was damaged and required complete replacement. The new lanterns installed on the rest of Downing Road are fitted with 35 Lux cells.

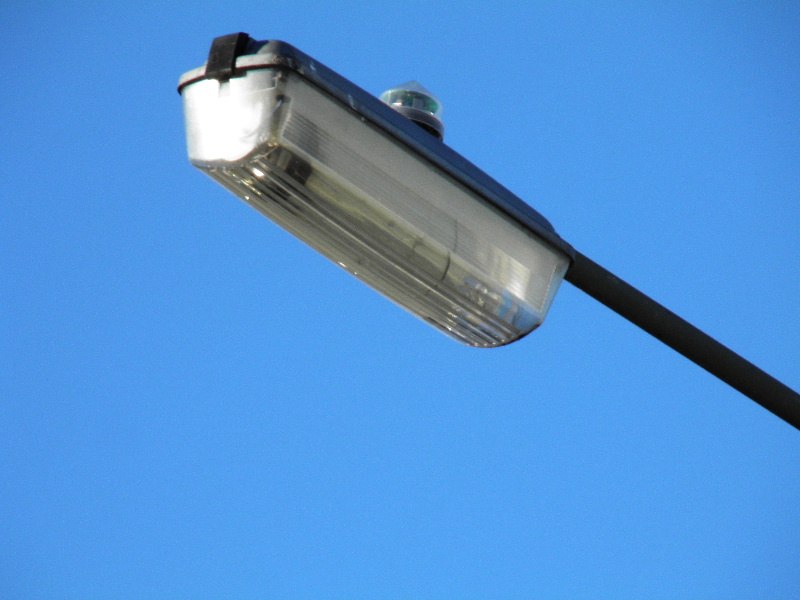

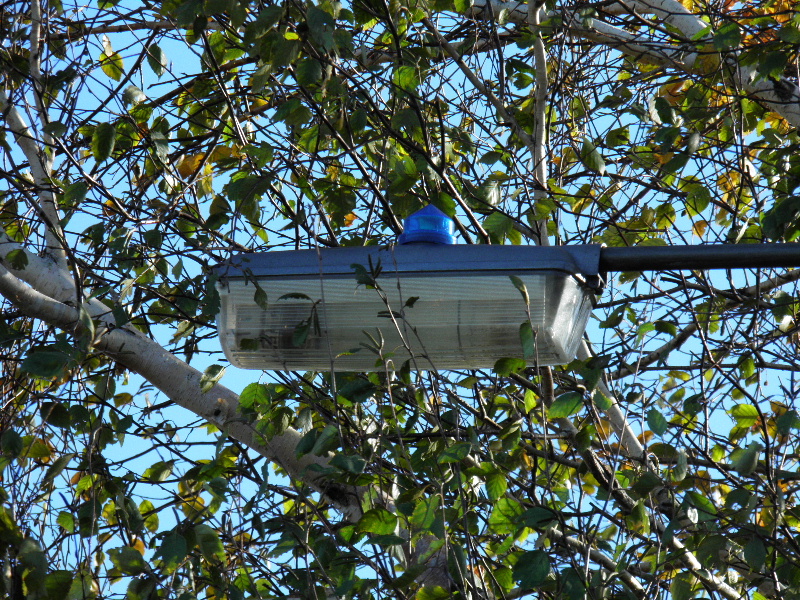

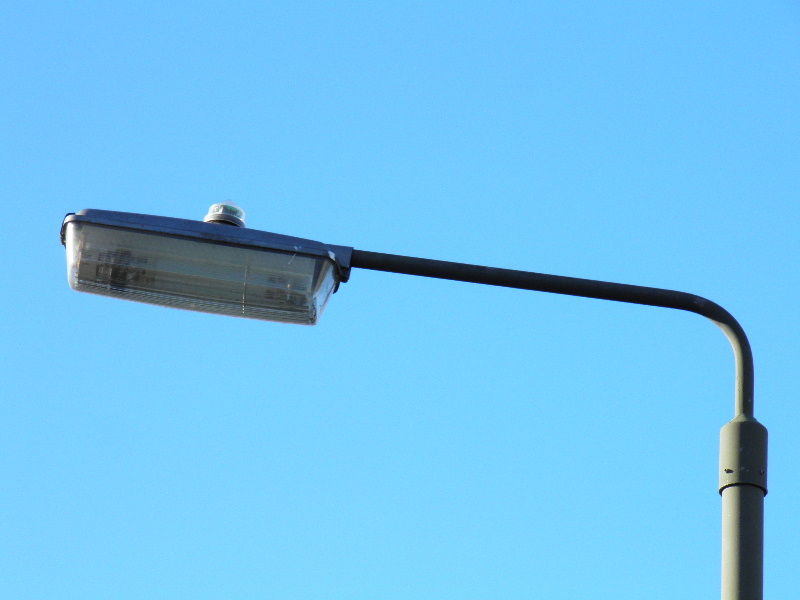

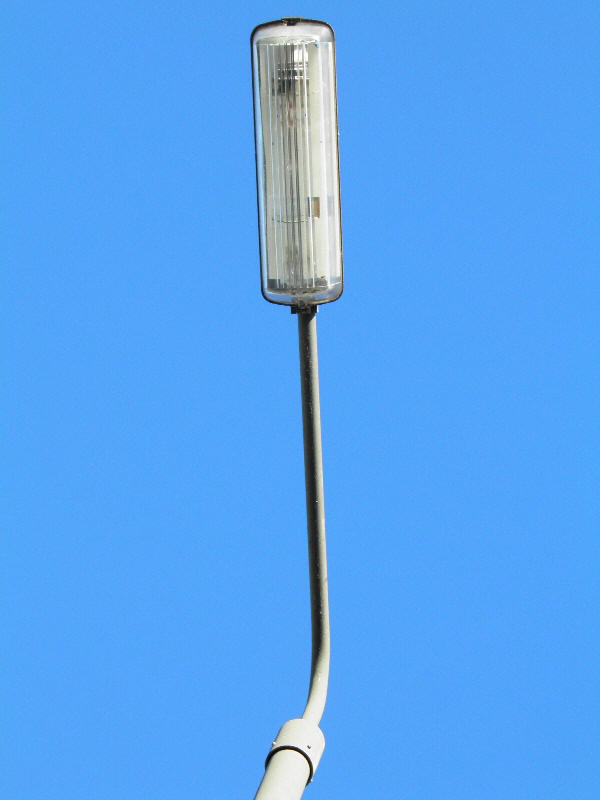

The GE SOX lamp fitted to this Beta 2 appears to have been fitted in 2007 - no wonder the arc tube looked worn in 2010!

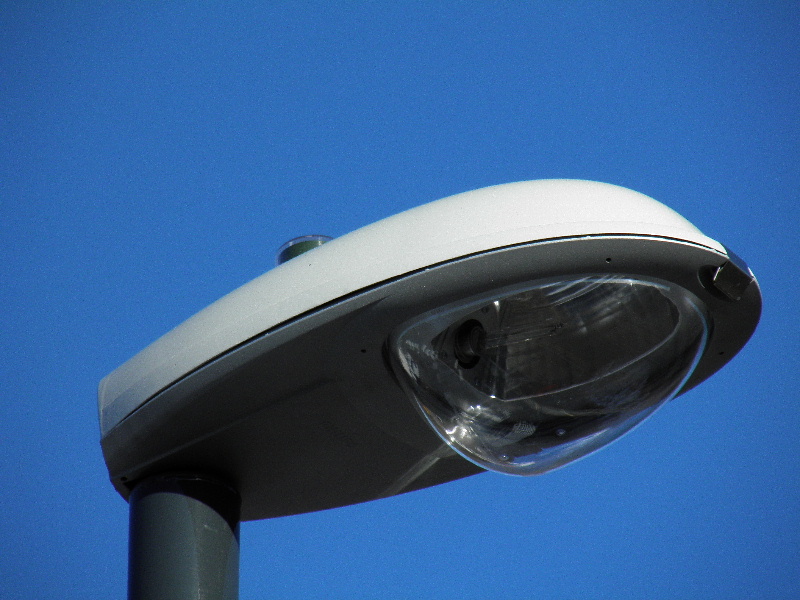

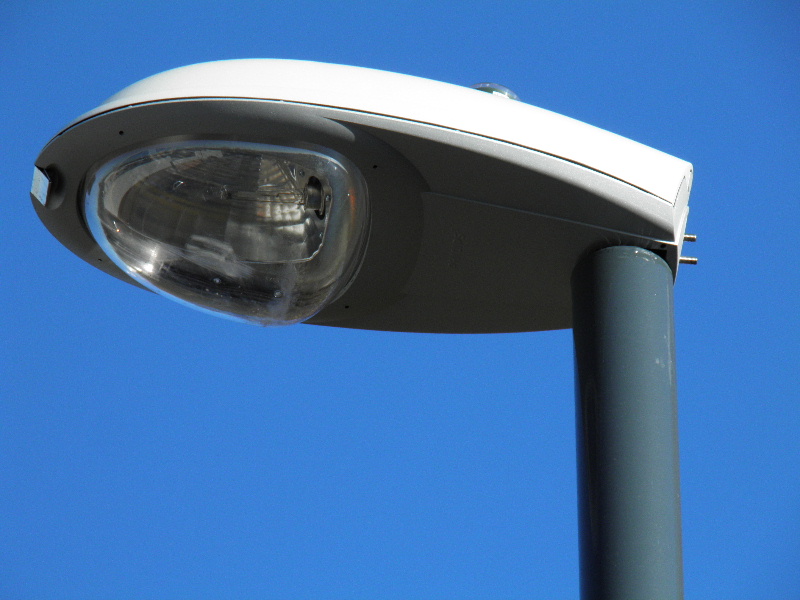

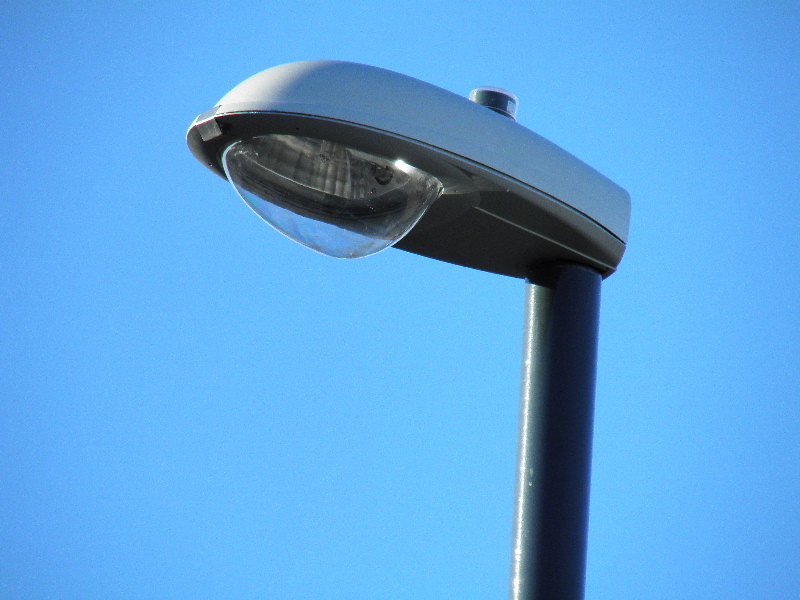

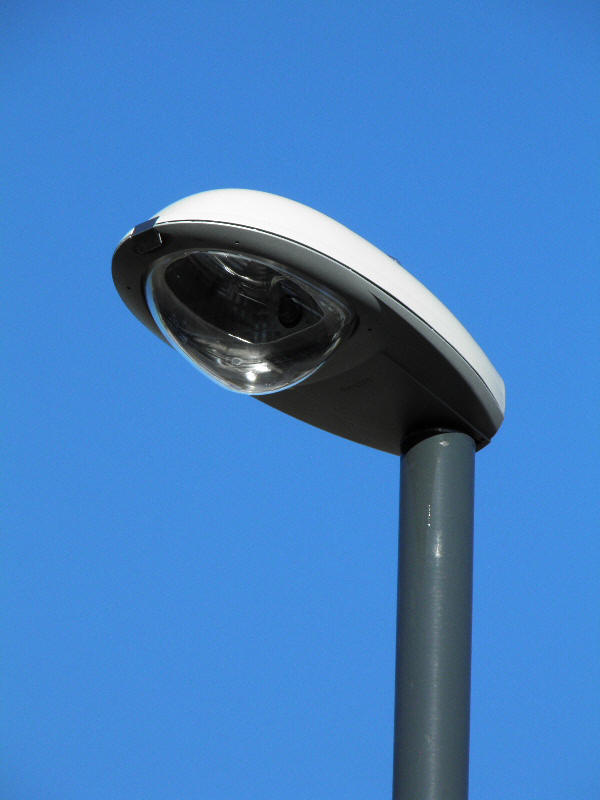

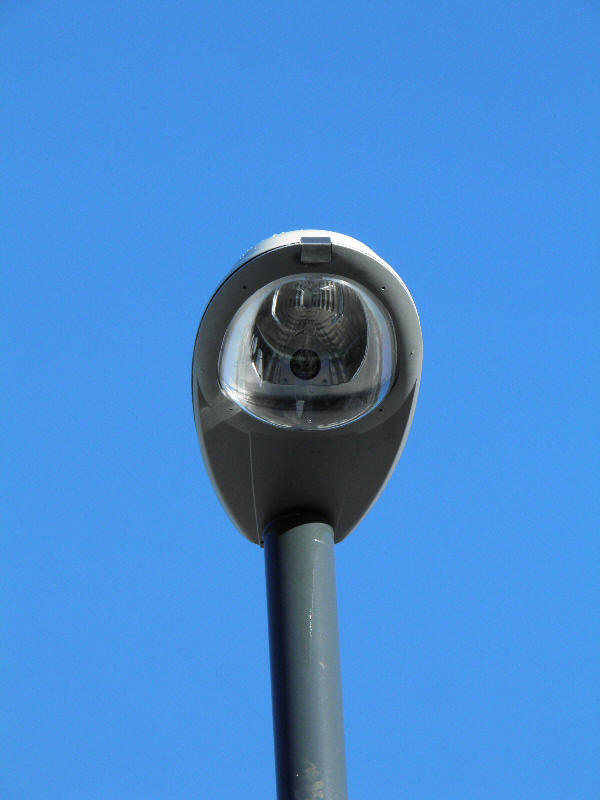

The full-sized version of the photograph below clearly shows "35 Lux" marked on the identification labels applied to the cells during manufacture.
