Derby's Street Lighting PFI Contract
Glenfield Crescent / Lambrook Close, Mickleover
Columns being removed on this road were:
(Glenfield Crescent)
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 28147 | OS NO 1 | SXPL3 | 35 | |
2 | 28148 | OS NO 7 | SXPL3 | 35 | |
3 | 28149 | OS NO 9 | SXPL3 | 35 | |
4 | 28150 | OS NO 16 | SXPL3 | 35 | |
5 | 28151 | O/S NO 25 | SXPL2 | 35 | |
6 | 28152 | OS NO 32 | SXPL3 | 35 | |
7 | 28153 | OS NOS 40/42 | SXPL3 | 35 | |
8 | 28154 | OS NO 42 | SXPL3 | 35 | |
9 | 28155 | ADJ 273 LADYBANK R | SXPL3 | 35 |
(Lambrook Close)
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 29848 | 1 FM GLENFIELD CR | SXPL3 | 35 | |
2 | 29789 | IN F/P BTW 11 & 12 | SXPL3 | 35 | |
3 | 29790 | IN F/P REAR OF 12 | SXPL3 | 35 |
The following photographs were taken on the 7th March 2010.

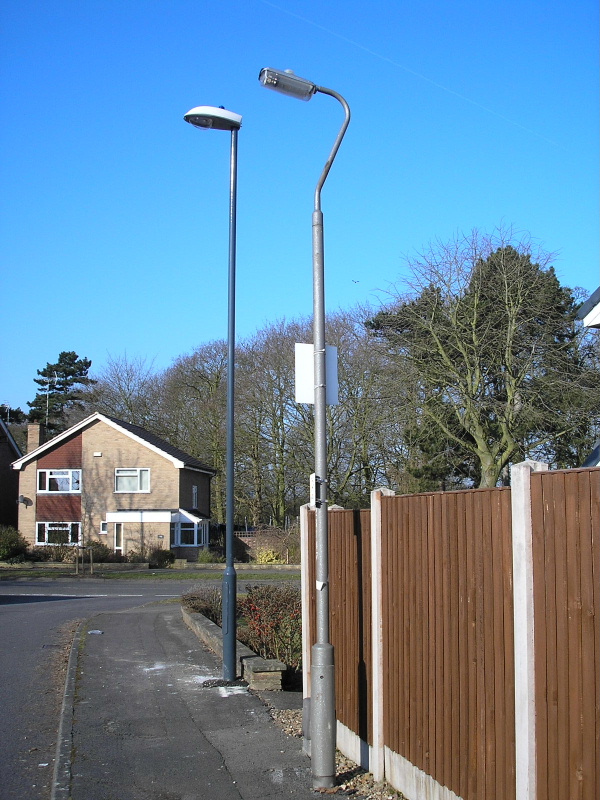

This Thorn Beta 5 replaced a Philips MI 26 in the early 2000s; the MI 26 having itself replaced a Thorn Beta 7 in the mid-1990s.

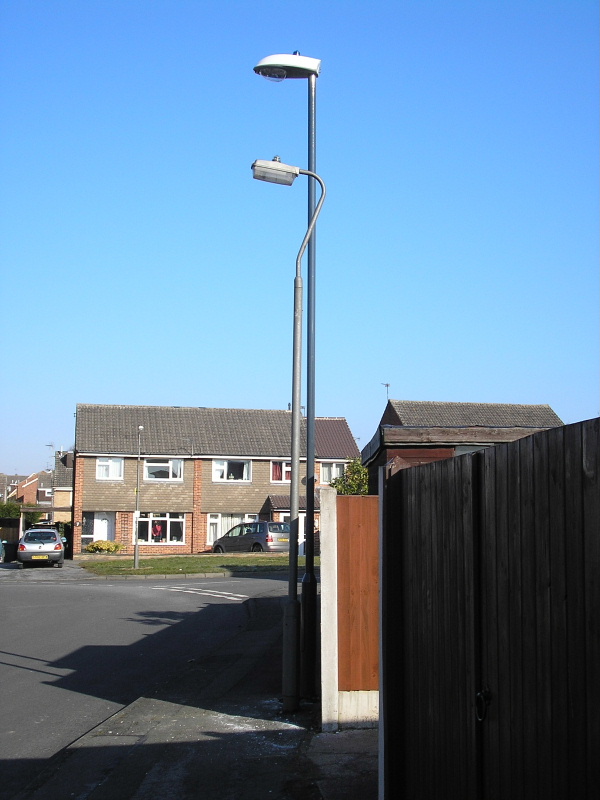

This 1980s' Beta 5 must have been an early Beta 7 replacement:
The next set of photographs are taken on Lambrook Close.

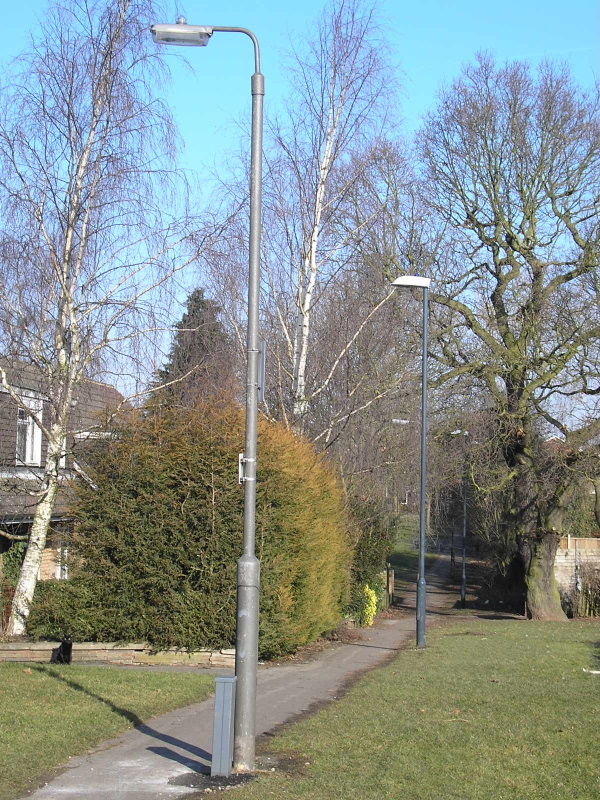

This Beta 5 attached to a Fabrikat 5 m base-hinged column is on the footpath located adjacent the Vicarage Road Recreation Ground. Back in 1982, a Thorn Gamma 5 35 Watt SOX post-top lantern was located here, along with on many of the footpaths on the estate; click the link to see a photograph taken at the time - the column fitted with the Gamma 5 is at the position of the Beta 5 in the background, by the trees.

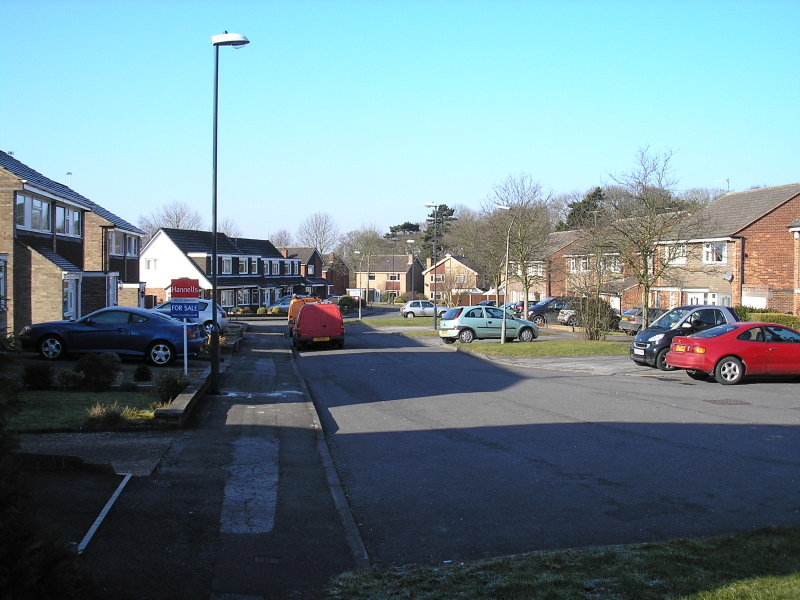

Looking back towards Glenfield Crescent, the first Iridium visible is fitted with the same 'wide' optic seen on the lantern on Brunton Close. A column opposite the example in the photograph is similarly equipped.
