Derby's Street Lighting PFI Contract
Sinfin Avenue, Shelton Lock (Part One)
The equipment being removed consisted of the following items in 1997:
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 34643 | O/S NO 1 | SXPL1 | 55 | |
2 | 34644 | OPP NO 7 | SXPL1 | 55 | |
3 | 34645 | O/S NOS 17/19 | SXPL1 | 55 | Y |
4 | 34646 | O/S NOS 4/6 | SXPL1 | 55 | |
5 | 34647 | O/S ST EDMUND'S CHURCH | SXPL1 | 55 | |
6 | 34648 | O/S THE VICARAGE | SXPL1 | 55 | |
7 | 34649 | O/S NO 10 | SXPL3 | 55 | |
8 | 34650 | O/S CROWN & ARROWS P.H. | SXPL1 | 55 | |
9 | 34651 | O/S NO 20 | SXPL1 | 55 | |
10 | 34652 | O/S NO 61 | SXPL1 | 55 | |
11 | 34653 | O/S NO 69 | SXPL1 | 55 | |
12 | 34654 | O/S NO 36 | SXPL1 | 55 | |
13 | 34655 | O/S NO 75 | SXPL3 | 55 | |
14 | 34656 | O/S NO 81 | SXPL1 | 55 | |
15 | 34657 | O/S NO 85 | SXPL1 | 55 | |
16 | 34658 | O/S NO 64 | SXPL1 | 35 | |
17 | 34659 | O/S NO 97 | SXPL1 | 35 | |
18 | 34660 | O/S NO 50 | SXPL1 | 35 | |
19 | 34661 | O/S NO 107 | SXPL3 | 35 | |
20 | 34662 | O/S NO 96/98 | SXPL1 | 35 | |
21 | 34663 | O/S NO 117 | SXPL1 | 35 | |
22 | 34664 | O/S NO 116 | SXPL1 | 35 | |
23 | 34665 | O/S NO 131 | SXPL1 | 35 | |
24 | 34666 | O/S NO 124 | SXPL1 | 35 | |
25 | 34667 | O/S NO 143 | SXPL1 | 35 | |
26 | 34668 | O/S NO 145 | SXPL1 | 35 | |
27 | 34669 | O/S NO 132/134 | SXPL1 | 35 | |
28 | 34670 | O/S NO 147 | SXPL1 | 35 | |
29 | 34671 | SIDE OF NO 153 | SXPL1 | 35 | |
30 | 34672 | O/S NO 169/171 | SXPL1 | 35 | |
31 | 34673 | O/S NOS 177/179 | SXPL1 | 35 | |
32 | 34674 | O/S NO 186 | SXPL1 | 35 | |
33 | 34675 | O/S NO 201/203 | SXPL1 | 55 | |
34 | 34676 | O/S NO 200 | SXPL1 | 55 | |
35 | 34677 | OPP NO 208 | SXPL1 | 55 | |
36 | 34678 | O/S NO 224/226 | SXPL1 | 55 | |
37 | 34679 | SIDE OF NO 230 | SXPL1 | 55 | |
38 | 34680 | JUNC SHIPLEY WK | SXPL1 | 55 | |
39 | 34681 | SIDE OF NO 276 | SXP1 | 55 | |
40 | 34682 | SIDE OF NO 278 | SXP3 | 55 | |
41 | 34683 | SIDE OF NO 290 | SXP1 | 55 | |
42 | 34684 | SIDE OF NO 312 | SXP1 | 55 | |
43 | 34685 | O/S NO 307/309 | SXPL1 | 55 | |
44 | 34686 | O/S NO 344 | SXP1 | 55 | |
45 | 34687 | NEAR NO 356 | SXP1 | 55 | |
46 | 34688 | ON GREEN NEAR 382 | SXP1 | 55 | |
47 | 34689 | O/S NO 386 | SXP1 | 55 | |
48 | 34690 | O/S NO 394 | SXP1 | 55 | Y |
49 | 34691 | O/S NO 274/276 | SXPL1 | 35 | |
50 | 34692 | B/W 262/264 | SXPL1 | 35 | |
51 | 34693 | CAR PARK ENTRANCE | SXP1 | 35 | Y |
52 | 34694 | O/S NOS 282/284 | SXPL1 | 35 | |
53 | 34695 | O/S NO 278 | SXPL1 | 35 | |
54 | 34696 | O/S NO 280/282 | SXPL1 | 35 | Y |
55 | 34697 | O/S NO 290/292 | SXPL1 | 35 | |
56 | 34698 | B/W 300/302 | SXPL1 | 35 | |
57 | 34699 | CAR PARK ENTRANCE | SXP2 | 35 | Y |
58 | 34700 | END OF CAR PARKING | SXP3 | 35 | |
59 | 34701 | NEAR NO 314 | SXPL1 | 35 | |
60 | 34702 | O/S NO 320 | SXPL1 | 35 | |
61 | 34703 | SIDE OF NO 336 | SXPL1 | 35 | Y |
62 | 34704 | REAR OF 350/352 | SXPL1 | 35 | |
63 | 34705 | SIDE OF NO 356 | SXPL3 | 35 | |
64 | 107989 | END OF CAR PARK AREA | SXPL3 | 35 |
The following photographs were taken on Friday, 24th December 2010.

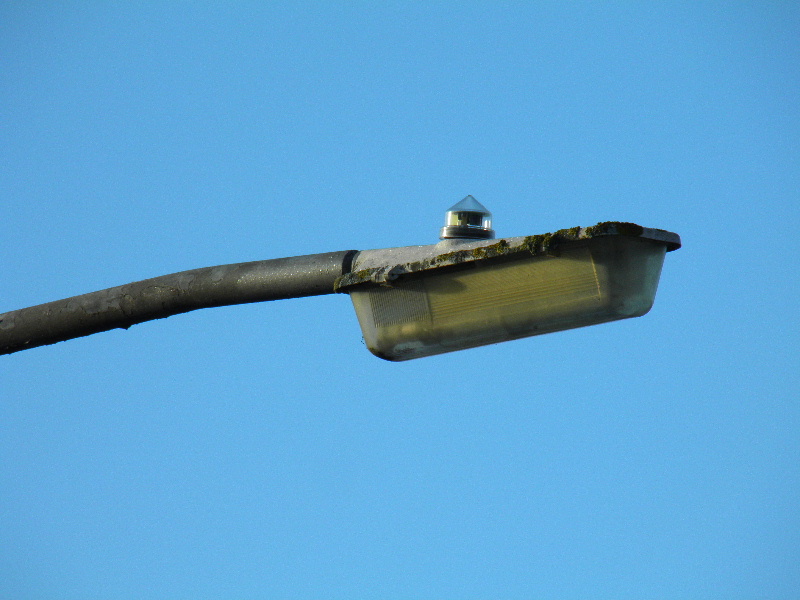

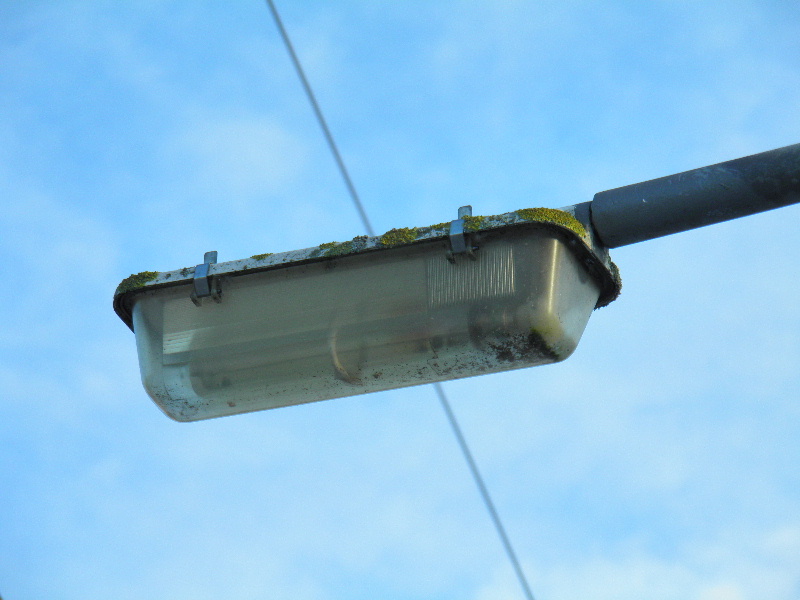

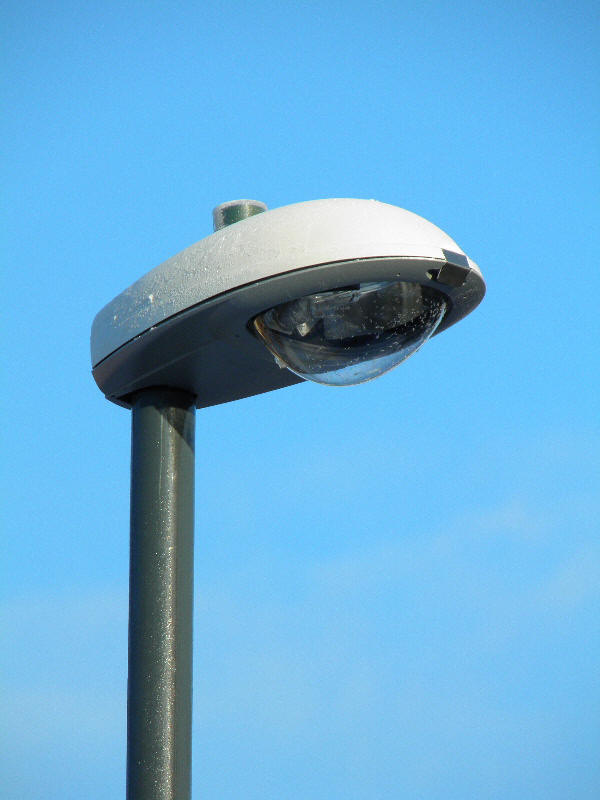

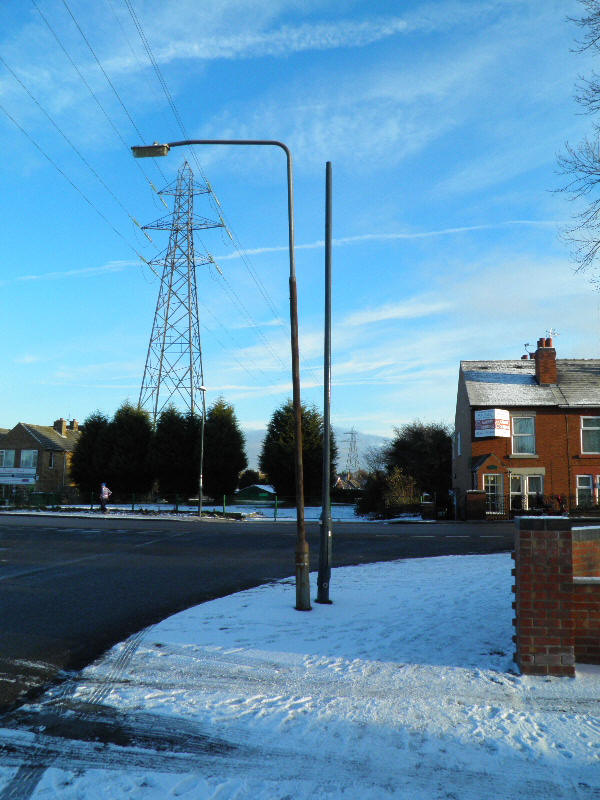

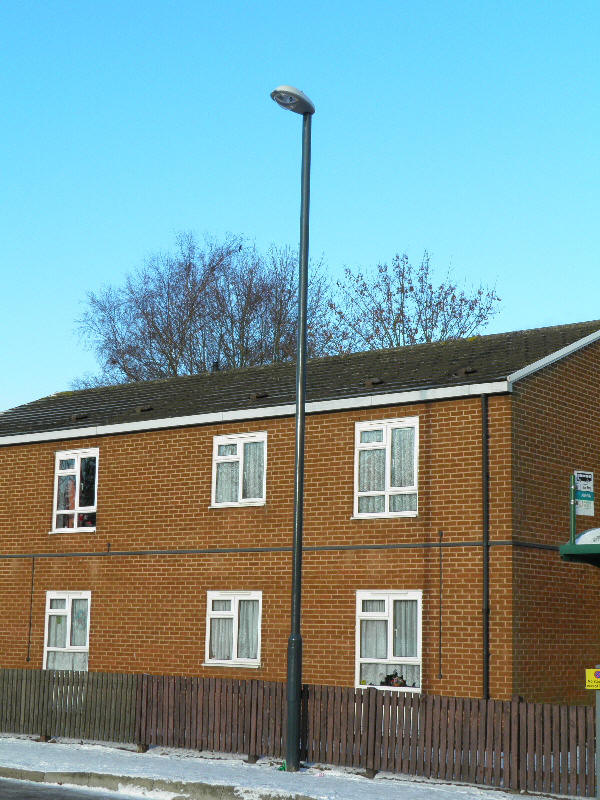

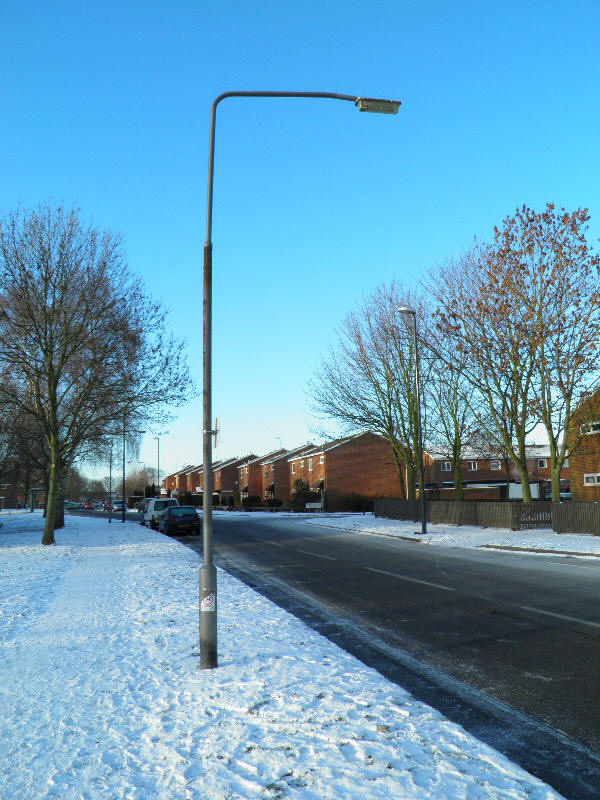

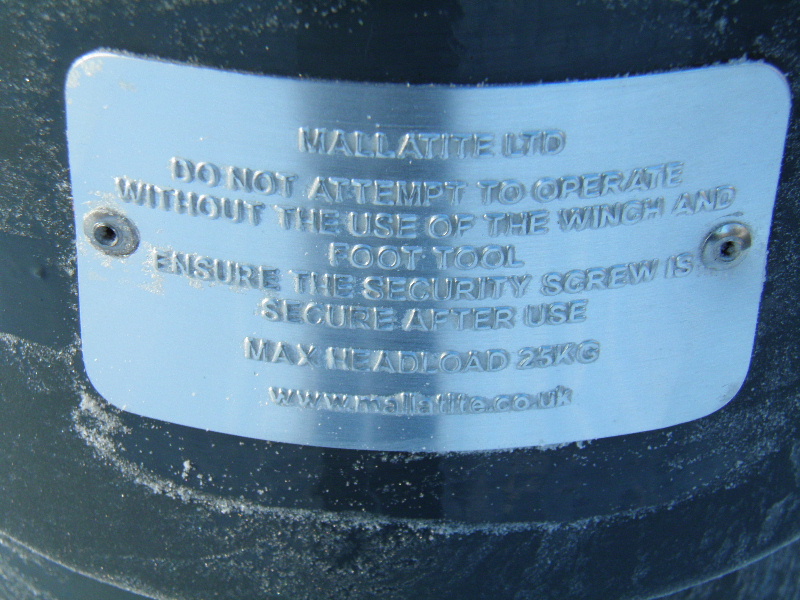

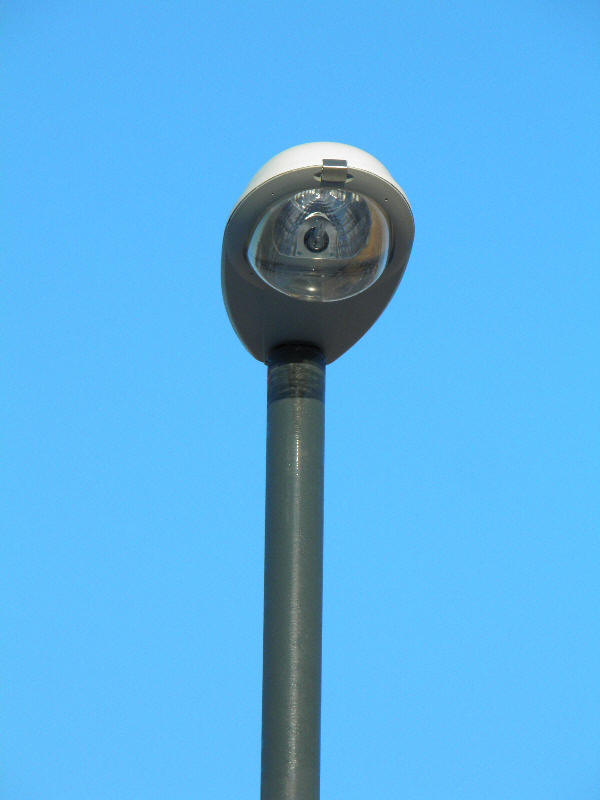

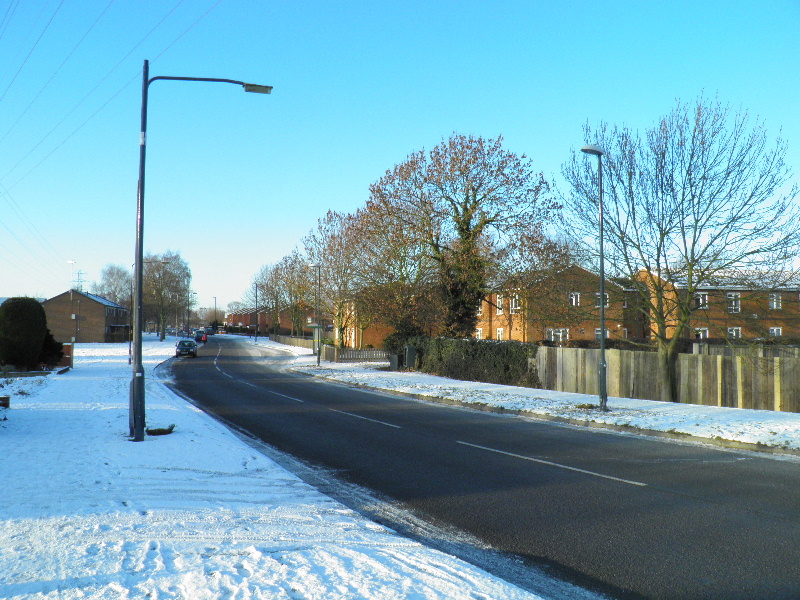

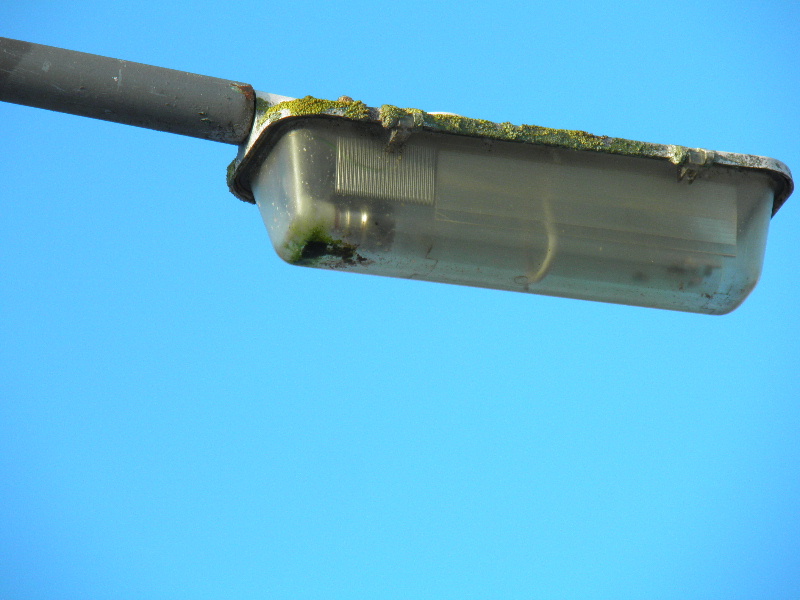

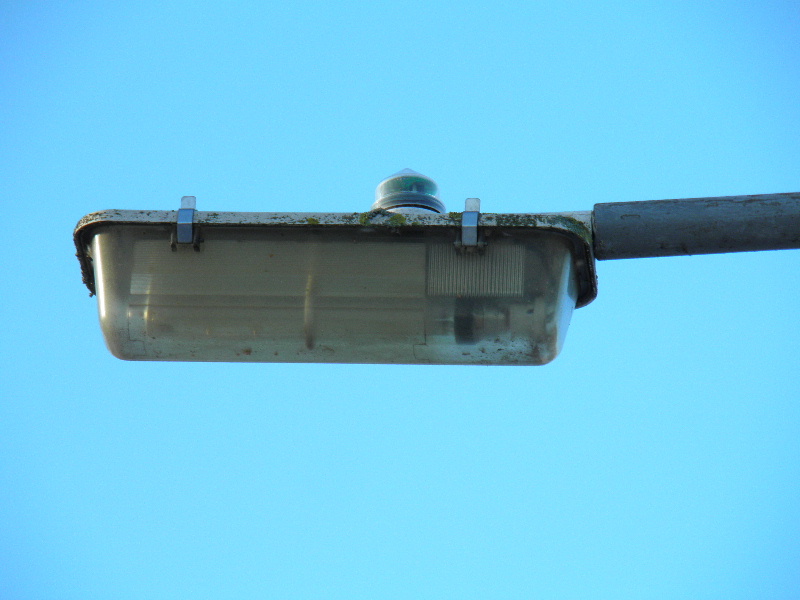

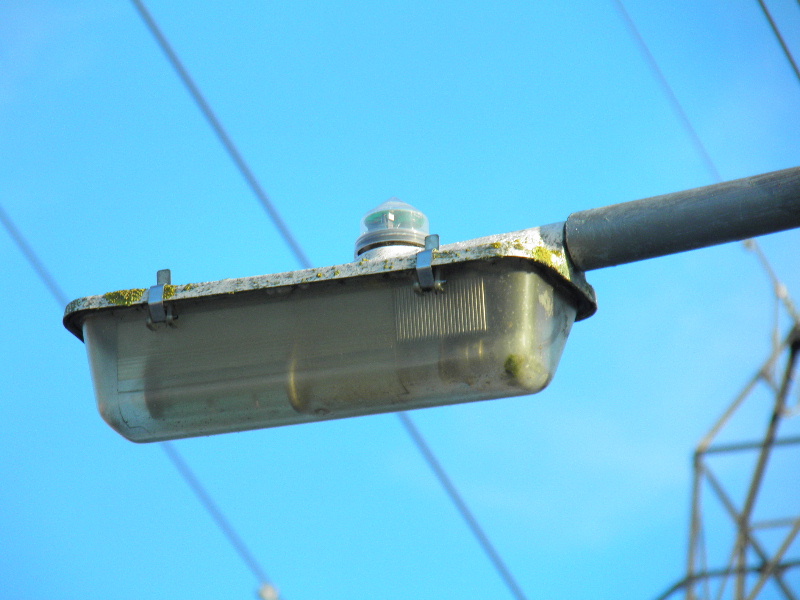

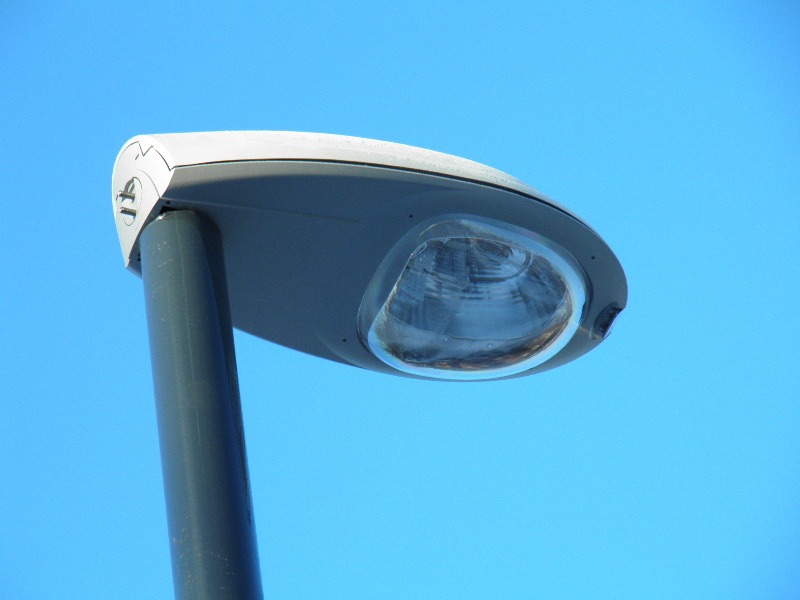

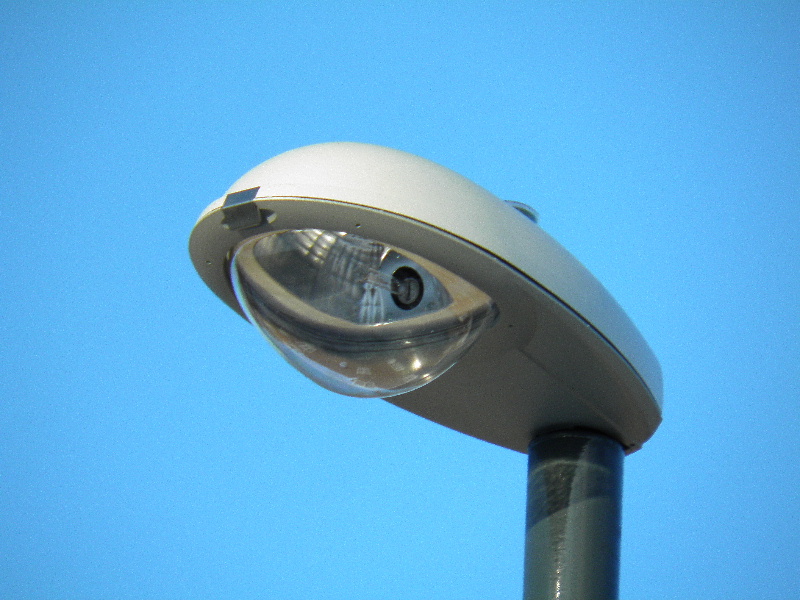

Most of the outgoing columns were made by Abacus, and mainly supported Simplex Aries 55 Watt SOX lanterns. When new, the columns may have supported 125 Watt MBF lanterns. Owing to the proximity of overhead electrical transmission wires, the first few new columns were 6 m Mallatite base-hinged products, in order to allow maintenance to be undertaken from ground level.

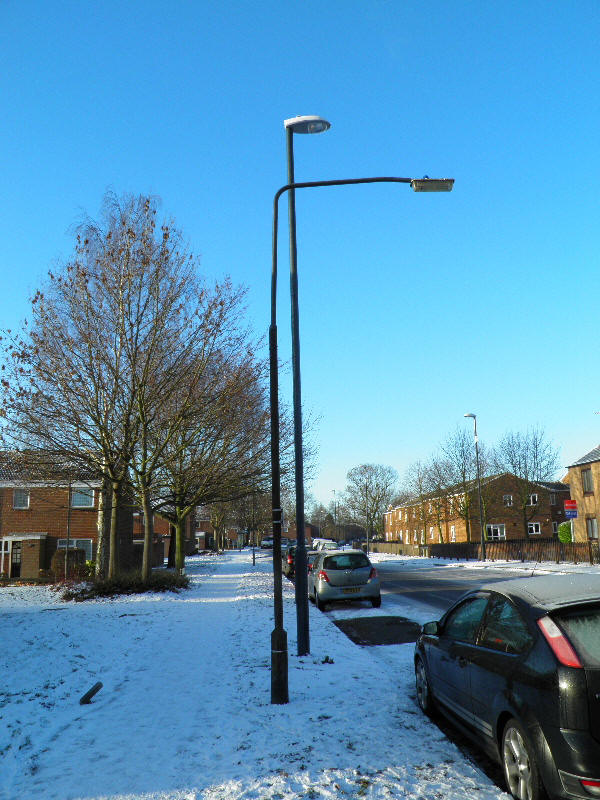

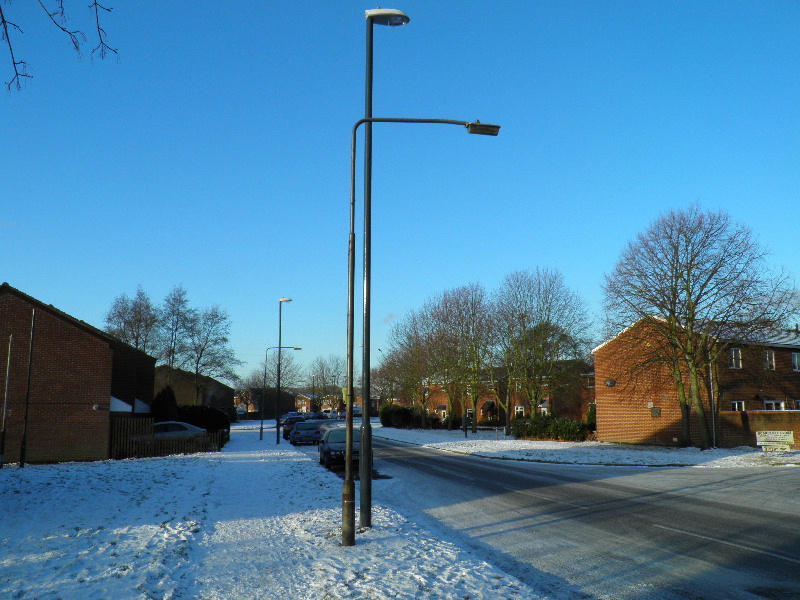

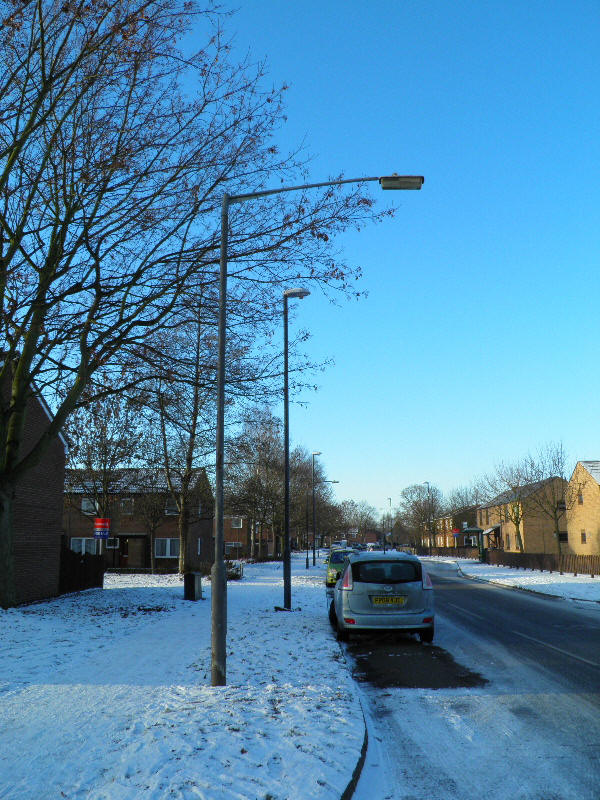

After the overhead lines were passed, the new columns became non-hinged, and the overall mounting height increased to 8 m.

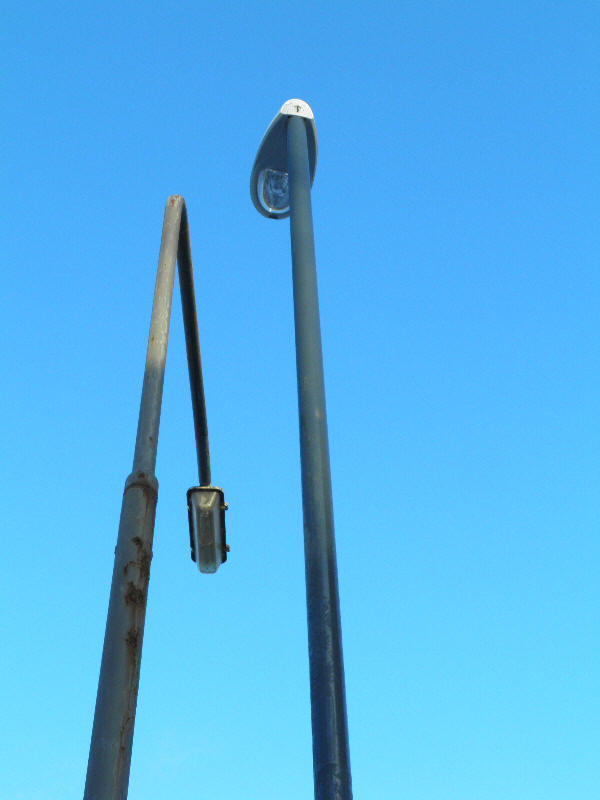

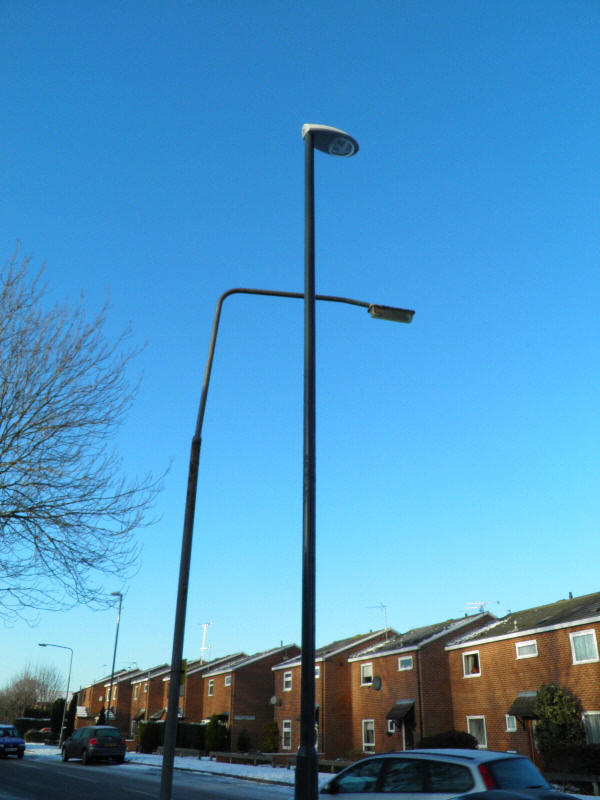

Many of the outgoing columns were well overdue replacement - the bracket on the example below really was leaning forwards as severely as it appeared to be!

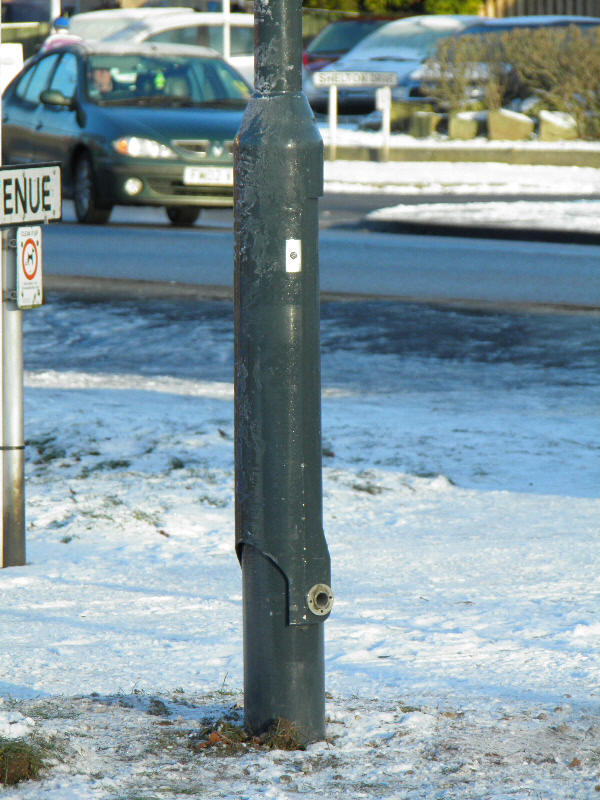

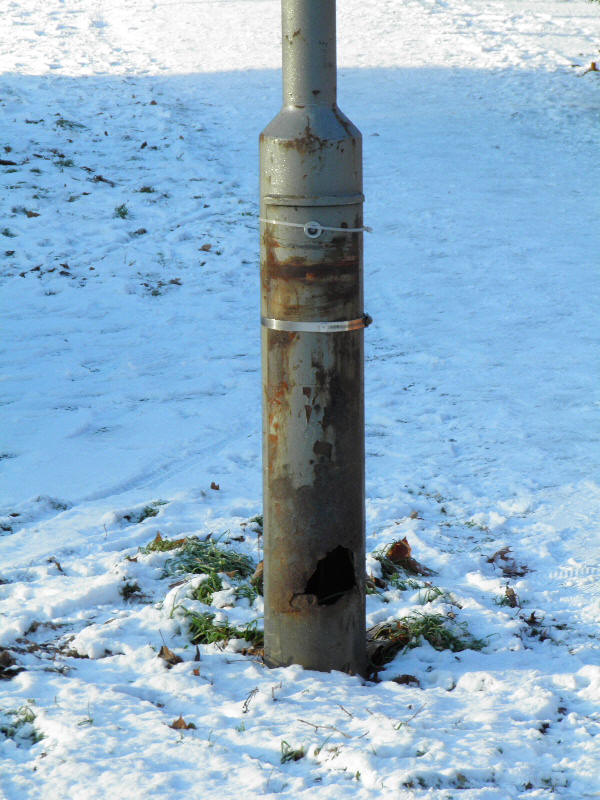

Owing to corrosion, a large hole had formed in the door of this column:

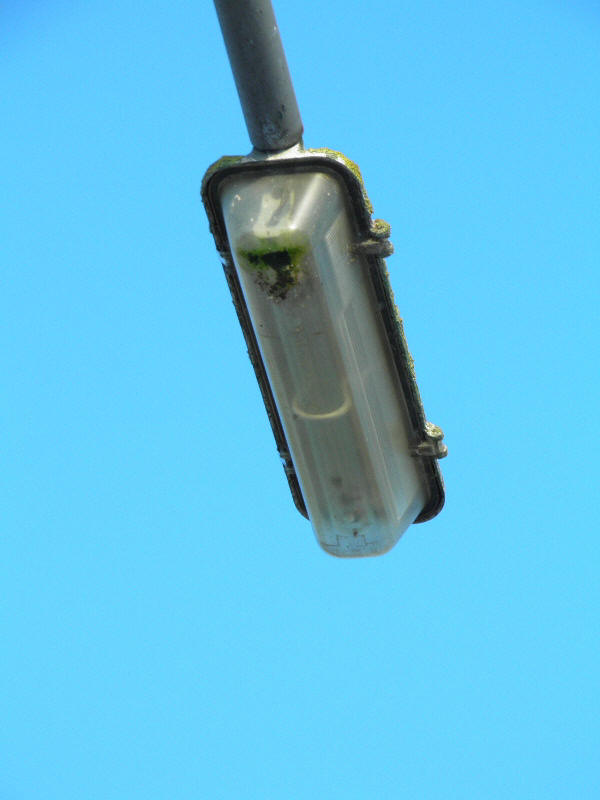

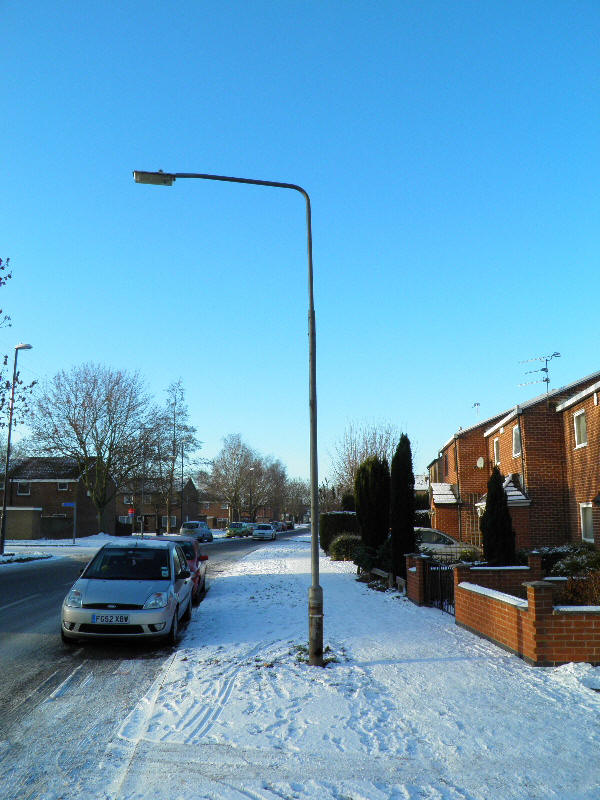

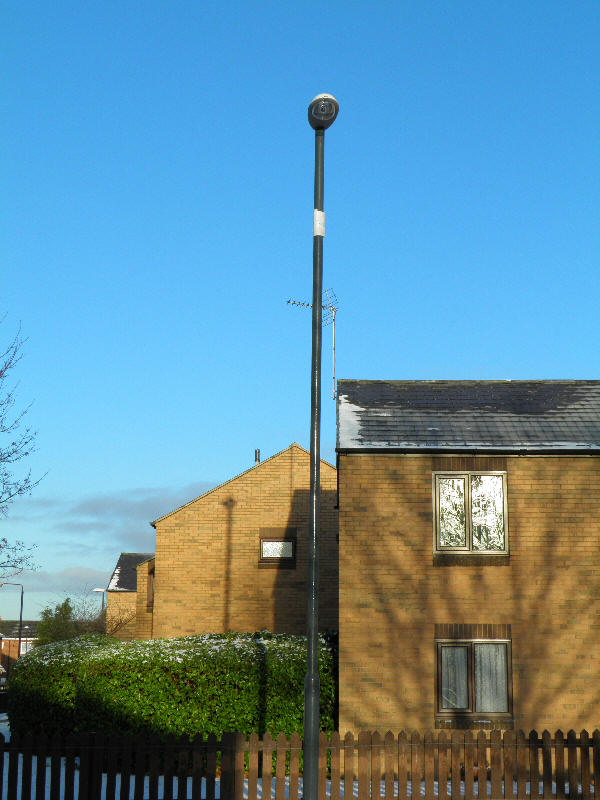

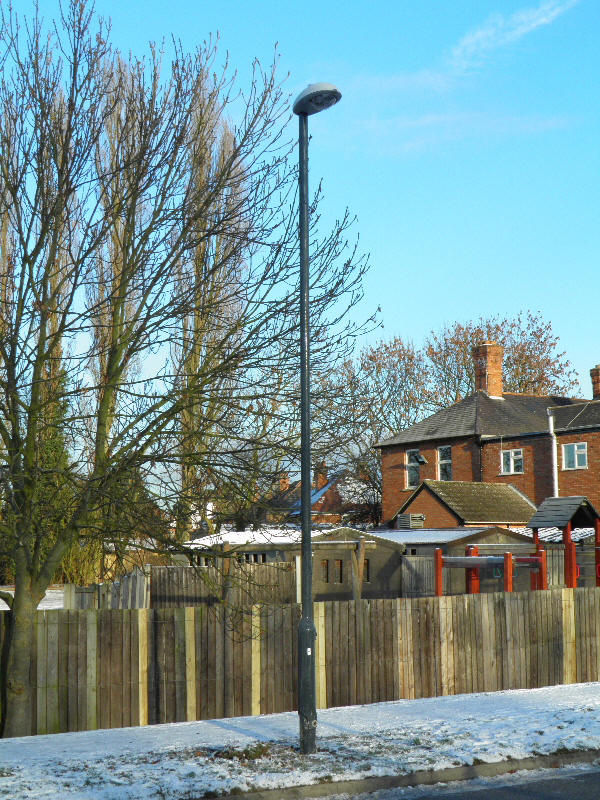

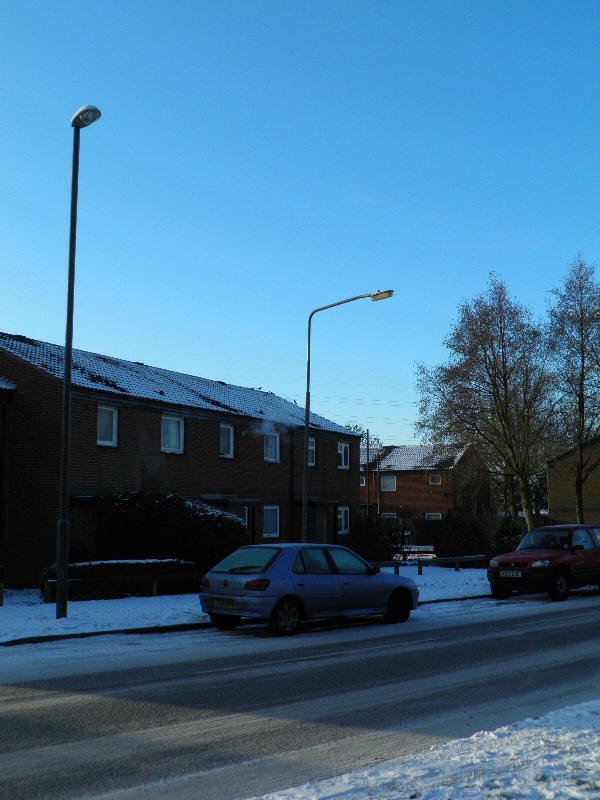

One column on this stretch was of a different style to the others, and a GEC Z9538 lantern was fitted. The column may have been an early replacement for a damaged Abacus column. The two column styles are compared below:
