Derby's Street Lighting PFI Contract
Alder Close, Oakwood
The equipment being removed consisted of the following items in 1997:
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 6790 | OPP NO 8 | SXPL2 | 35 | |
2 | 6791 | OS NOS 16/18 | SXPL2 | 35 | |
3 | 6792 | ON FP. OPP NO 20 | SXPL2 | 35 | |
4 | 6793 | ON FP. ADJ NO 31 | SXPL2 | 35 | |
5 | 6794 | OS NOS 30/32 | SXPL2 | 35 | |
6 | 6795 | O/S NO 47 | SXPL2 | 35 | |
7 | 6796 | ON FOOTPATH O/S NO 53 | SXPL1 | 35 |
The following photographs were taken on Sunday, 7th November 2010.

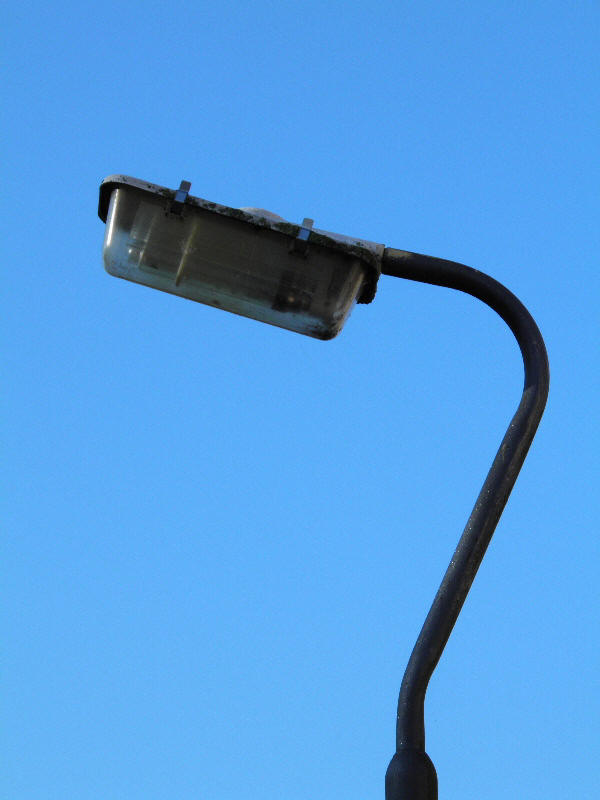

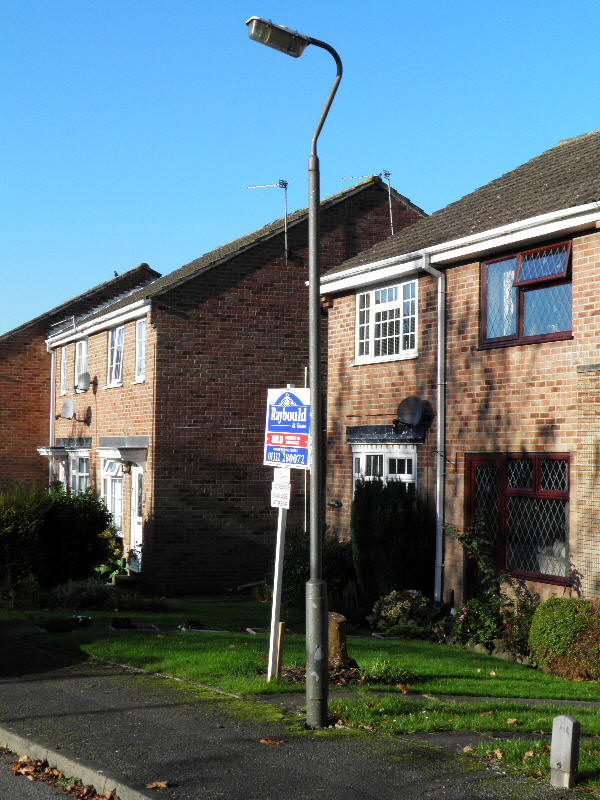

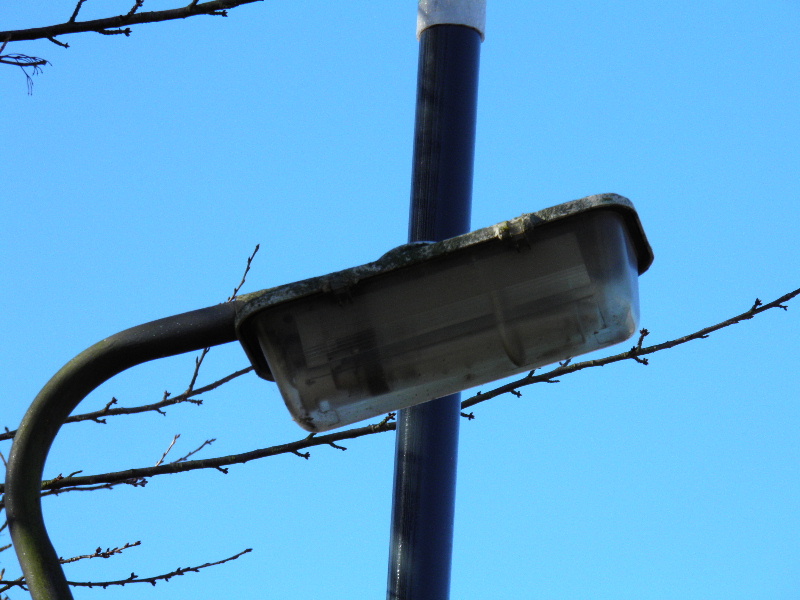

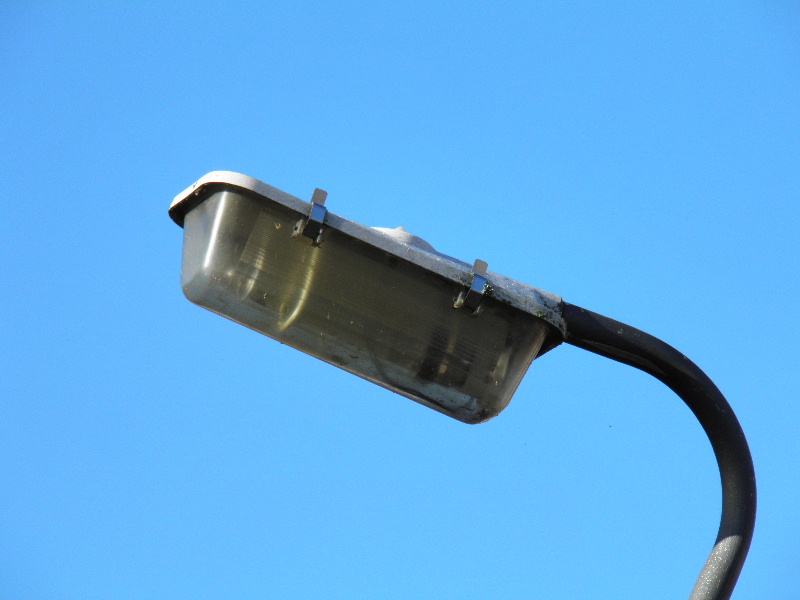

The first, second and third outgoing columns supported remotely-geared Simplex Aries 35 Watt SOX lanterns at the time of removal.

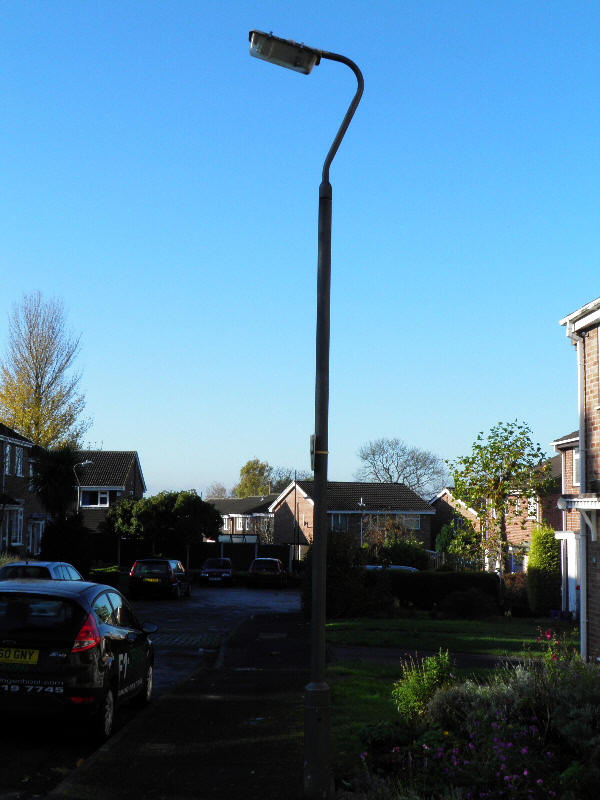

A Thorn Beta 5 followed; this would have replaced a failed Aries at some point.

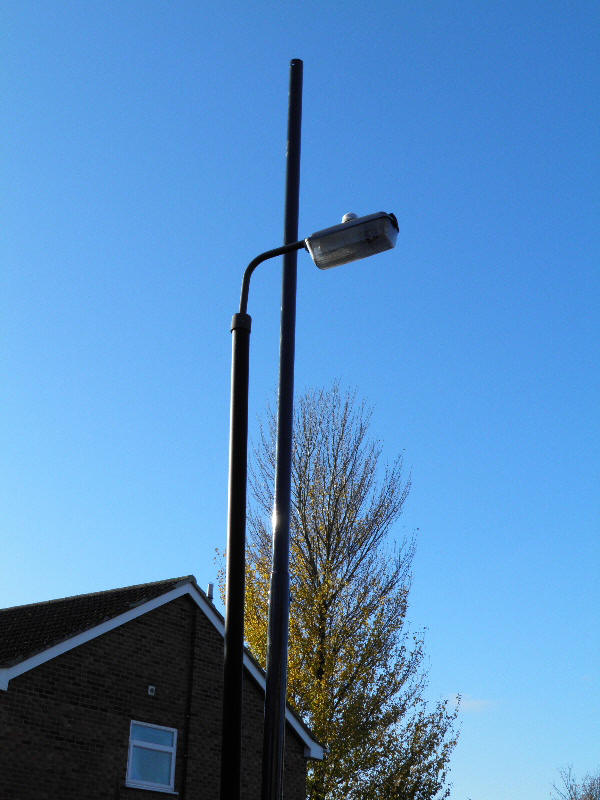

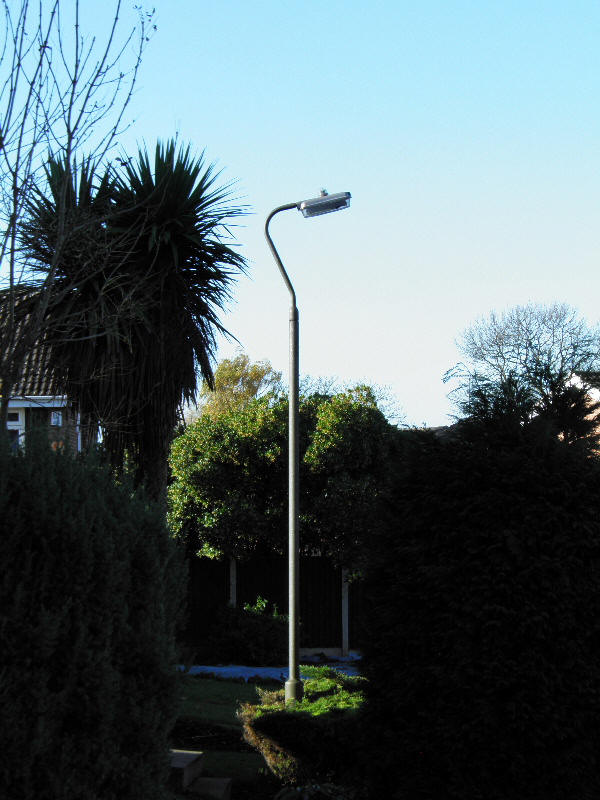

A second, albeit deep-bowled Beta 5 marked the opening of the footpath to Minster Road.

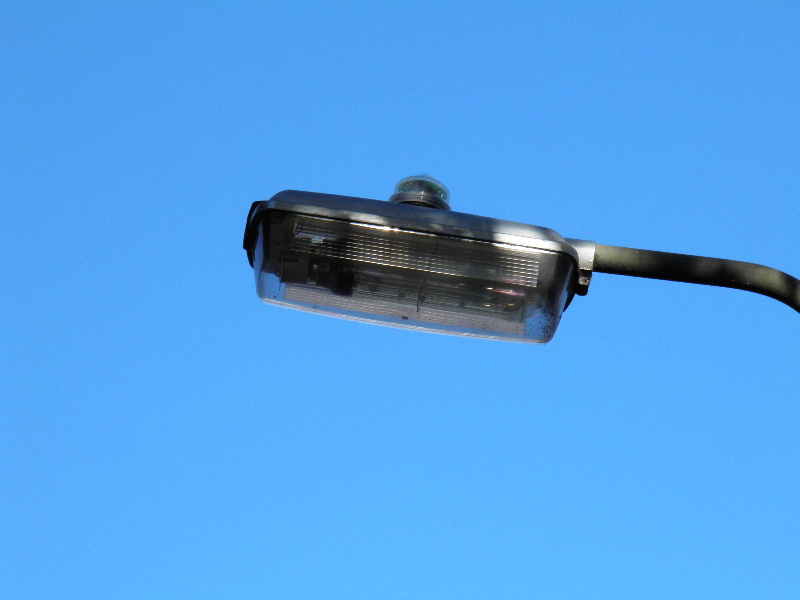

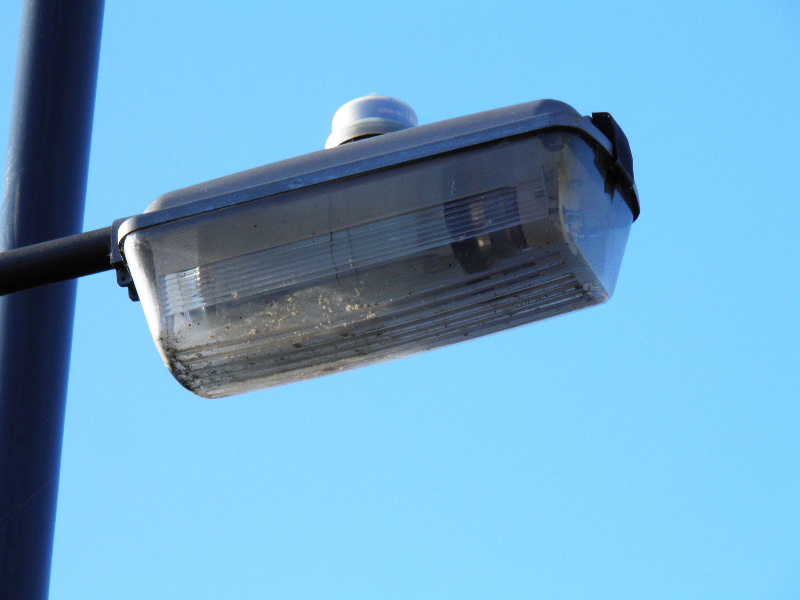

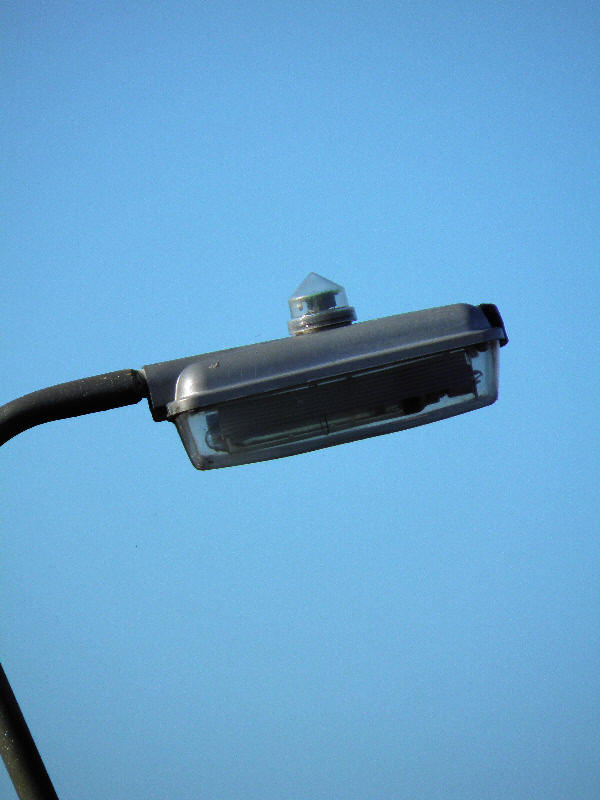

The Beta 5 was fitted with a late 1990s' Royce Thompson Oasis 2000 photocell.

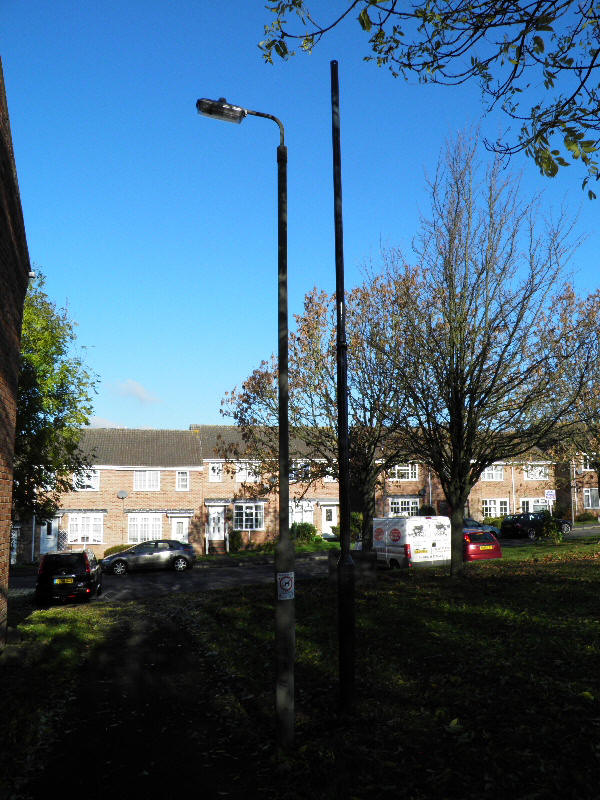

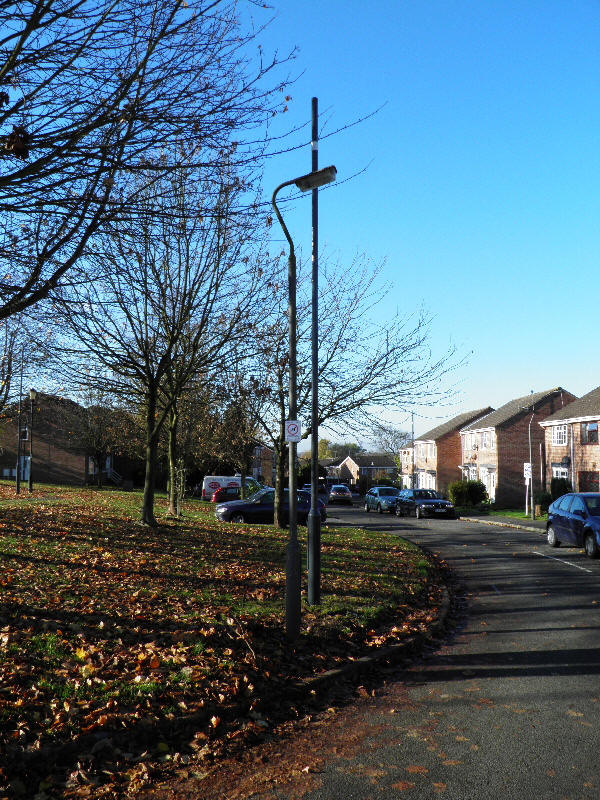

Another shallow-bowled Beta 5 could be seen fitted to a Fabrikat mid-hinged column on the adjacent footpath.

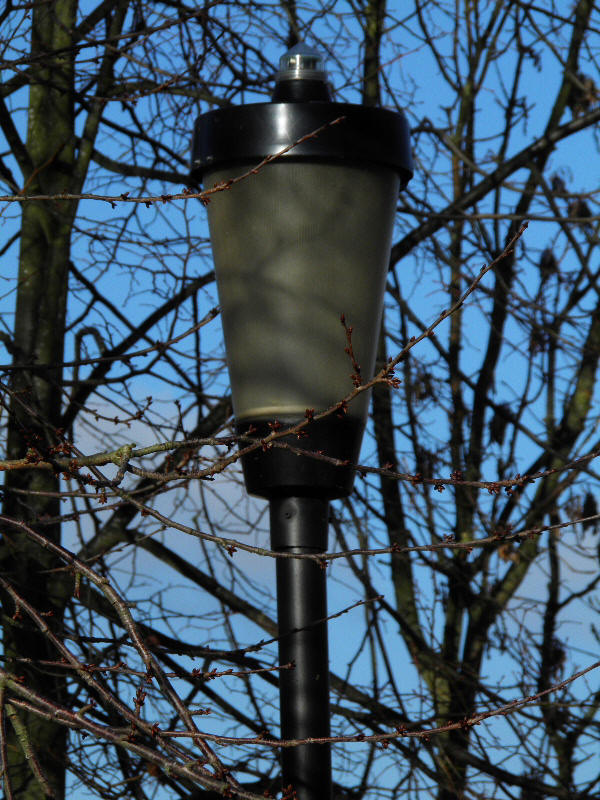

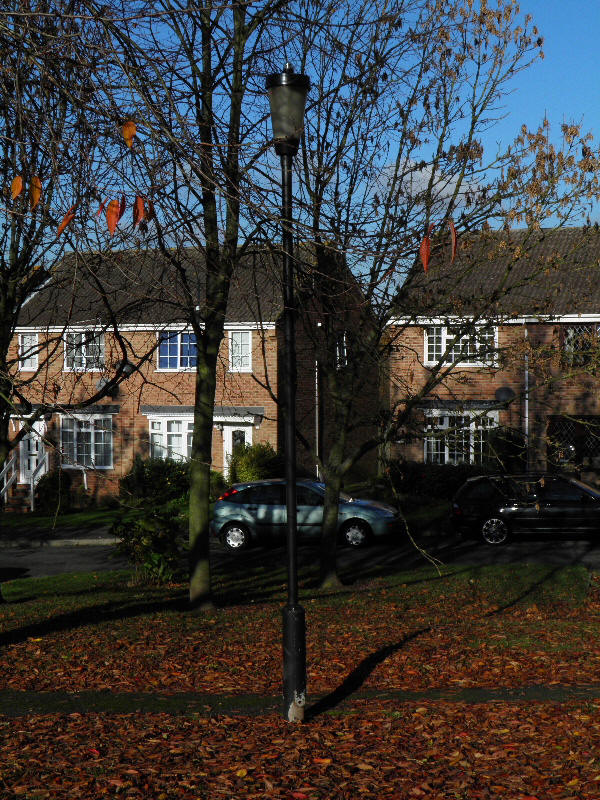

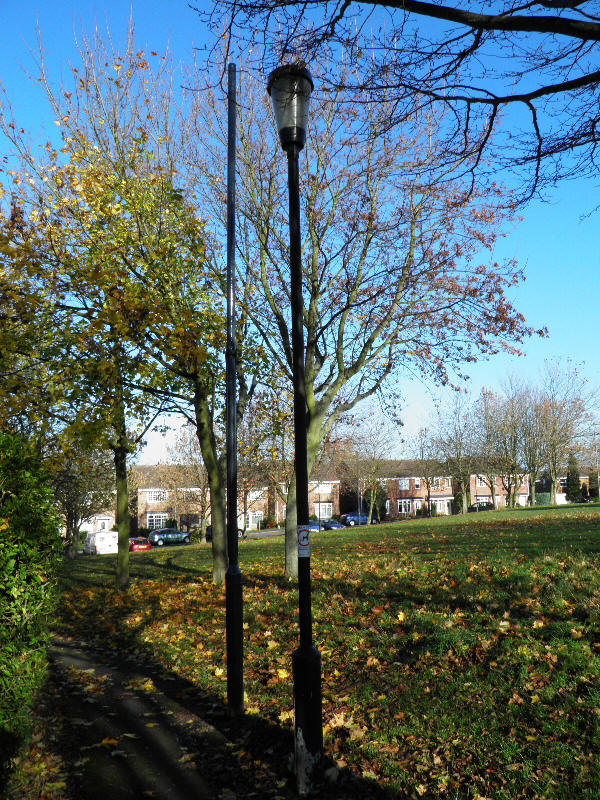

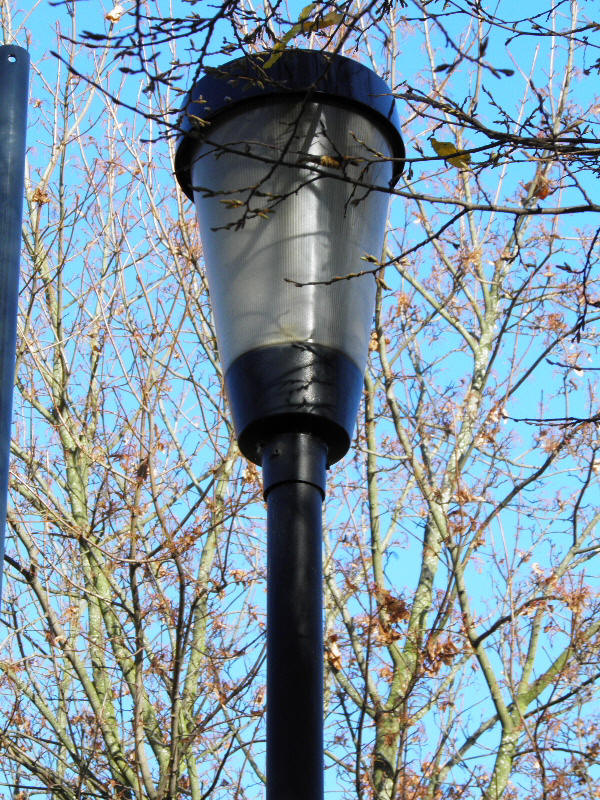

GEC Z5698U post-top lanterns made up the other two lanterns installed on the footpath. Both were fitted to Abacus base-hinged columns.
