Derby's Street Lighting PFI Contract

St. Mellion Close, Mickleover

This road was constructed in the late 1980s, and the current system of lighting also dates from then. I was surprised that this estate was not relit as part of the mass-replacement work in the early years of the PFI, as roads of a similar age in Oakwood were. Still, at least this ensured that the road was in virtually as-built condition.

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 107685 1 FM MUIRFIELD DR SXPL3 35
2 107686 OPP NOS 1/3 SXPL3 35
3 107687 IN C-D-S O/S NO 1 SXPL3 35
4 107688 OS NO 9 SXPL3 35
5 107689 F/P OPP NO 3 SXPL3 35
6 107690 F/P OPP NOS 9/11 SXPL3 35
7 107691 F/P SD 12 B/DALE C SXPL3 35
8 107692 IN FOOTPATH OPP NO 6 SXPL3 35
9 107693 F/P OPP NO 8 SXPL1 35
10 107694 F/PATH OPP NO 10 SXPL3 35

The following photographs were taken on Tuesday, 2nd May 2017.

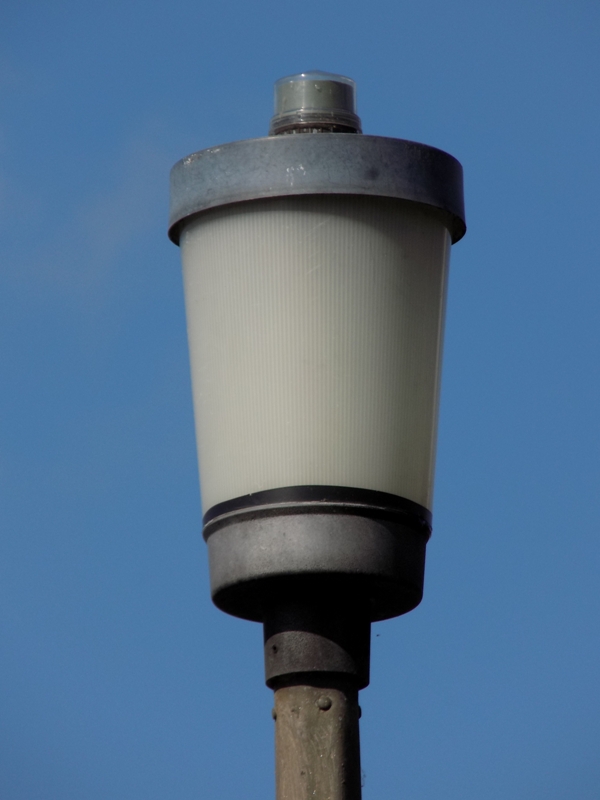

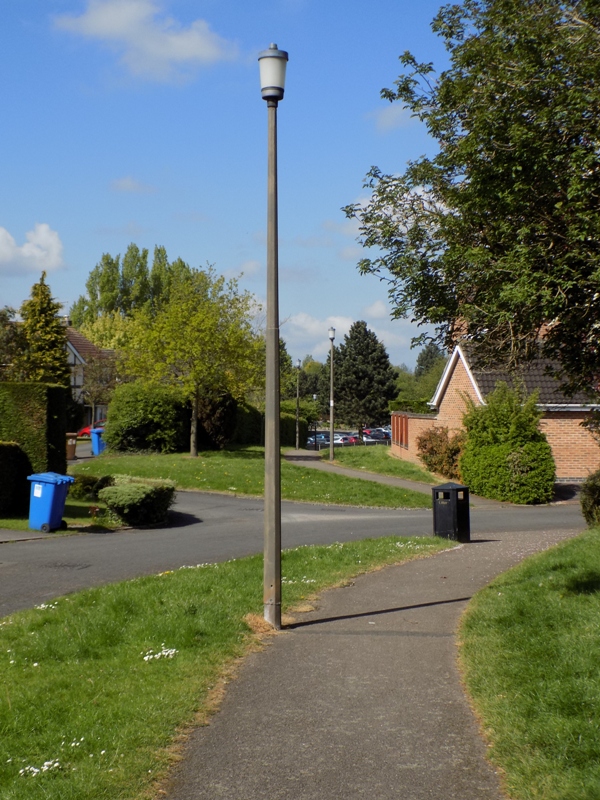

Whilst the roadway was lit with Thorn Beta 5 35 Watt SOX lanterns fitted to 5 m tubular steel columns, the footpath link was lit with Thorn Gamma 6 lanterns (also 35 Watt) attached to 5 m mid-hinged columns made by Fabrikat.

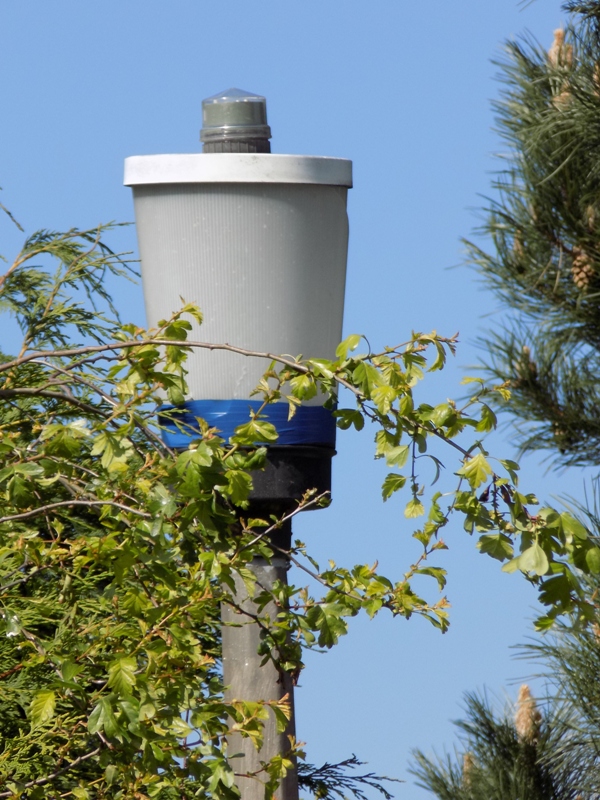

A little further along the footpath, and the tape repair to this 1990s' replacement Gamma 6 was somewhat more substantial in its nature!
