Derby's Street Lighting PFI Contract

Uttoxeter Old Road (Bridge), California

The existing lighting consisted of the following items in 1997.

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 107014 JUNC SOUTH ST N/A N/A
2 107015 JUNC UTTOX NEW RD N/A N/A
3 36270 OS NOS 5/7 CHEMIST SXPL1 90
4 36271 O/S NO 4 ASHBOURNE CT SXPL1 55
5 36272 O/S NO 23A SXPL1 55
6 36273 OPP REAR NO 16A SOUTH ST SXPL3 55
7 36274 OPPOSITE SOUTH STREET SXPL3 90
9 36275 ADJ STADIUM CAR PK SXPL3 90
10 36276 ADJ NO 60 SXPL3 55
11 36277 O/S STADIUM - NOW NEW DEVELOPMENT SXPL1 55
12 36278 O/S MOBICOM SXPL1 55
13 36279 O/S GEE JOINERY SXPL1 55
14 36280 OPP WILD ST SXPL1 55
15 36281 O/S NOS 130/132 SXPL3 55
16 36282 ADJ HANDI HIRE SXPL1 55
17 36283 CORNER SLACK LN SXPL3 55
18 36284 OPP SLACK LN SXPL1 55
19 36285 CORNER SLACK LN SXPL3 55
20 36286 ON BRIDGE SXPL1 55
21 36287 ON BRIDGE SXPL3 55
22 36288 ON BRIDGE SXPL1 55
23 36289 ADJ EMEB SUBSTN SXPL1 55
24 36290 ADJ LAKES SXPL1 55
25 36291 OPP PARCEL TERR SXPL1 55
26 36292 OS NO 57 SXPL1 55
27 36293 OS NO 150 SXPL1 55
28 36294 OS NOS 61/63 SXPL1 55
29 36295 OS NO 176 SXPL1 55
30 36296 O/S NO 91 SXPL3 55
31 98419 OS NOS 198A/200 SXPL1 55
32 98420 OPP BAPTIST CHURCH SXPL1 90
33 98421 O/S ROWDITCH RECREATION SXP1 135 Y
34 106578 JUNC ASHBOURNE RD FL 11
35 106579 JUNC ASHBOURNE RD FL 11

The following photographs were taken on Sunday, 18th December 2011. By this time, the only old lighting remaining on the road was across the former Great Northern Railway bridge; the rest had been removed through earlier schemes.

Additional to the assets listed above was an illuminated weight limit sign, installed at the approach to the bridge. The outgoing post appears to be a 5 m Fabrikat tubular steel column that had been cut down to a signpost size; the replacement post supports a Simmonsigns LUA LED signlight unit.



Five 6 m Abacus tubular steel columns were set for removal for this scheme.



Four of these columns ended their days supporting Simplex Aries 55 Watt SOX lanterns.



The new columns are 10 m in height.



A Thorn Beta 2 55 Watt SOX lantern was fitted to the outgoing column here. This was fitted on Tuesday, 8th March 2005, after the Aries lantern was damaged.

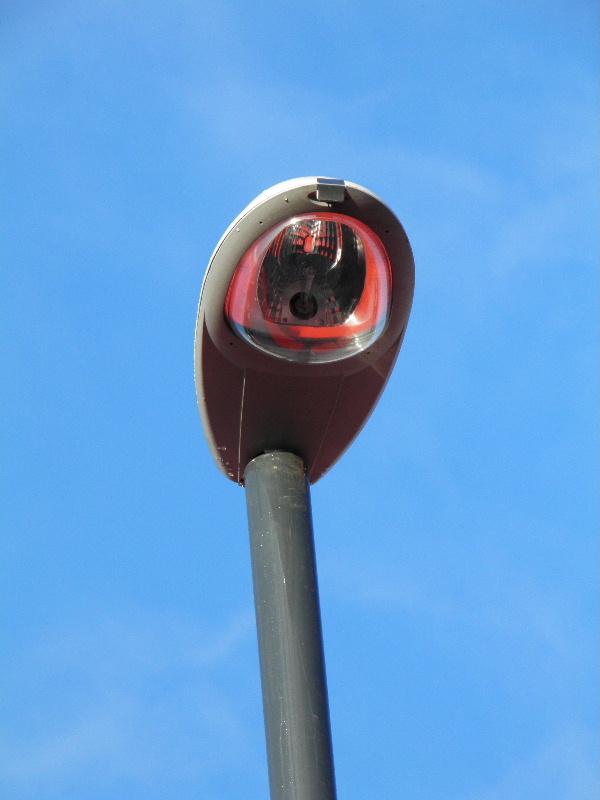

The new columns support 'medium' (SGS 253) Iridium lanterns.



The difference in height between the new and old columns is apparent here.



The door lock on this outgoing column had failed; the door having been secured by a stainless steel band.

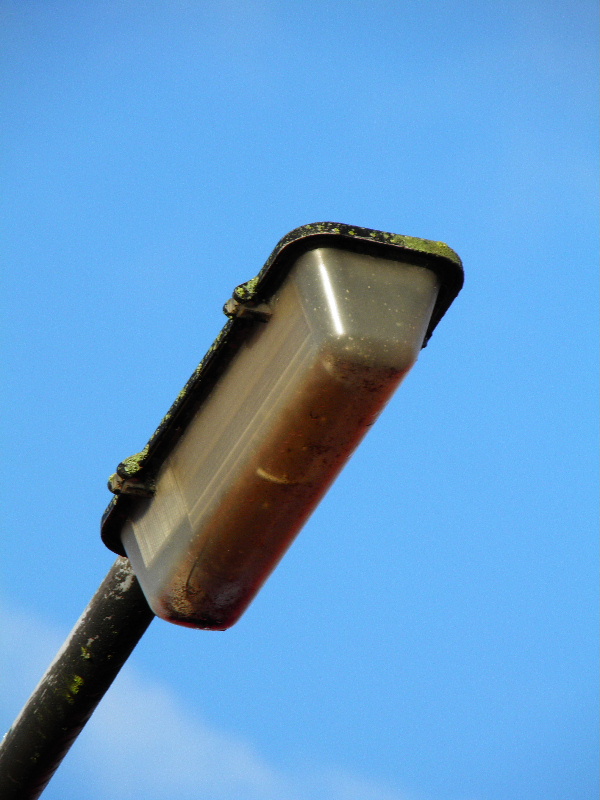

The bowl on this Aries was in a rather grubby state; the canopy wasn't in much better condition!

The new columns have been placed alongside the old columns.



The refractor panels on the Aries' bowl are visible in this view.





The final couple of columns were installed at the edge of the bridge deck.



The Aries lanterns would themselves have been fitted as replacements for Thorn Beta 7 125 Watt MBF lanterns.
