Derby's Street Lighting PFI Contract
Ward Street, City Centre
The existing lighting consisted of the following items in 1997.
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 36758 | OS NO 2 | SXPL1 | 35 | |
2 | 36759 | OS NOS 12/14 | SXPL1 | 35 | |
3 | 36760 | OS NOS 26/28 | SXPL1 | 35 | Y |
4 | 36761 | OS NOS 46/48 | SXPL1 | 35 | |
5 | 36762 | ADJ 42 LYNTON ST | SXPL1 | 35 | |
6 | 106402 | JUNC DREWRY LN | FL | 8 | |
7 | 106403 | ON L36760 - O/S NOS 26/28 | FL | 8 | |
8 | 106404 | JUNC LYNTON ST | FL | 8 | |
9 | 106405 | JUNC LYNTON ST | FL | 8 |

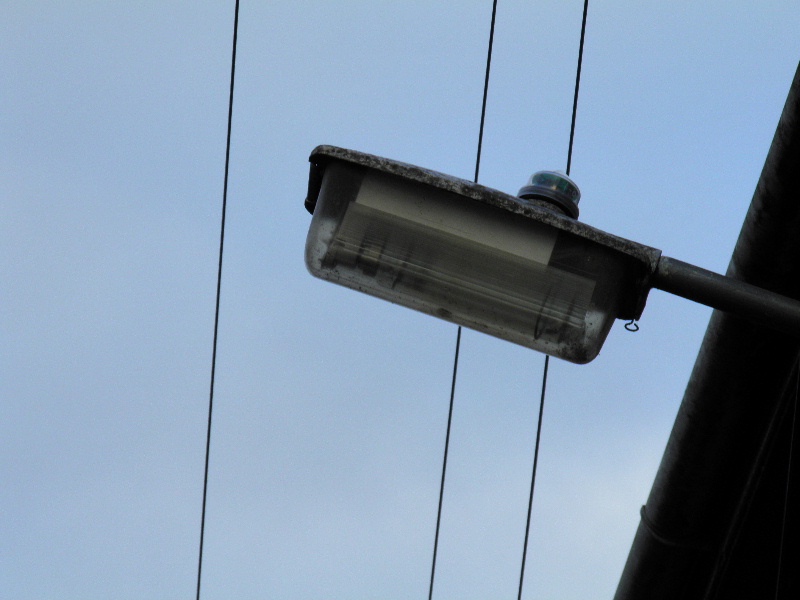

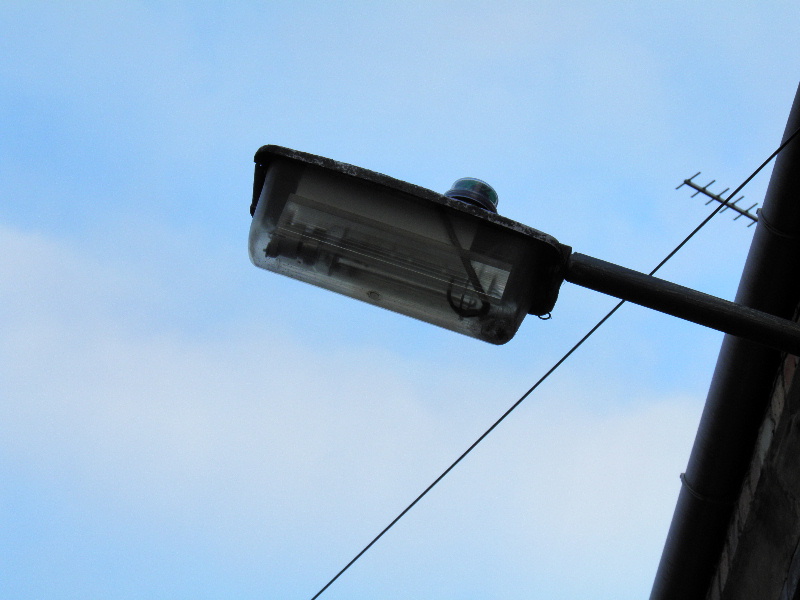

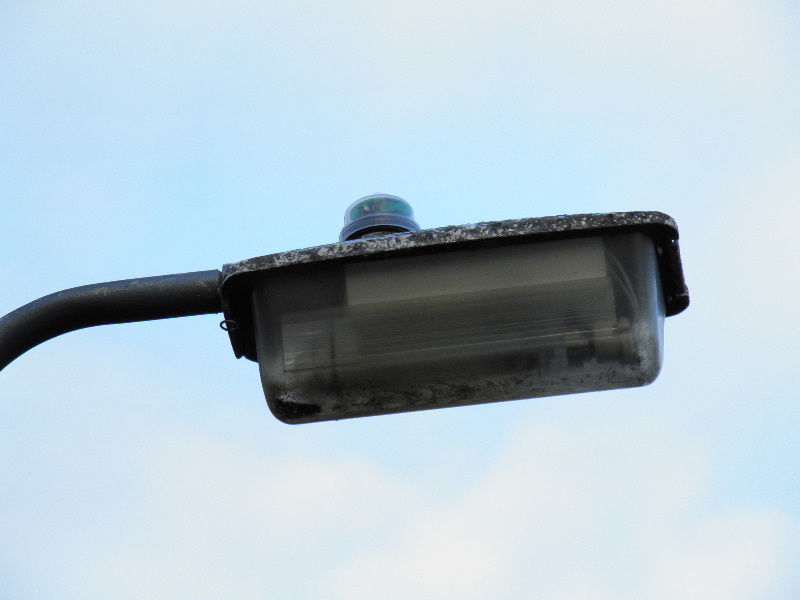

The following photographs were taken on Sunday, 12th December 2010. GEC Z9532s made up all of the outgoing lanterns on this road.

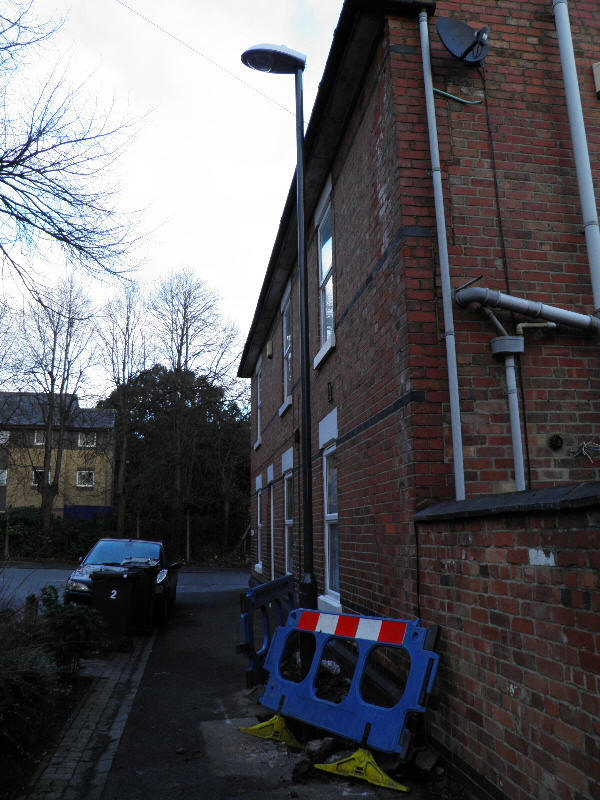

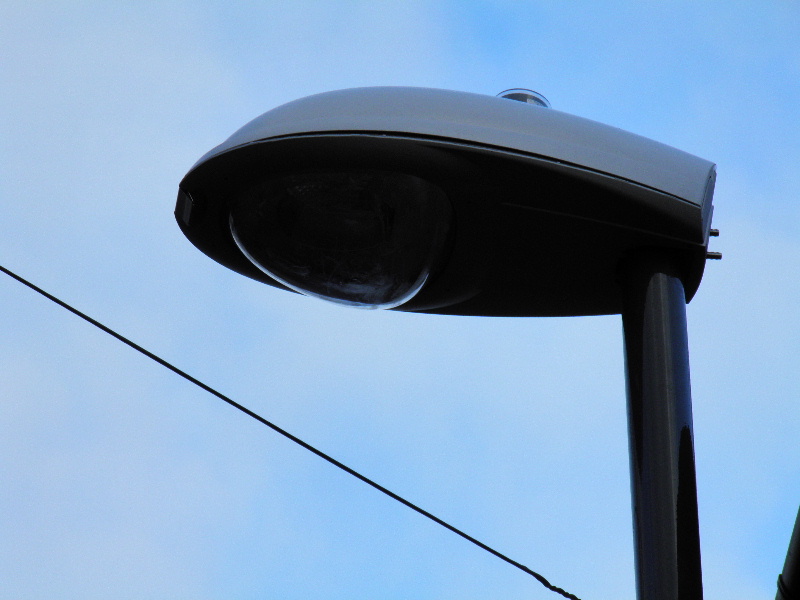

The first column from Drewry Lane had already been replaced when these photographs were taken.

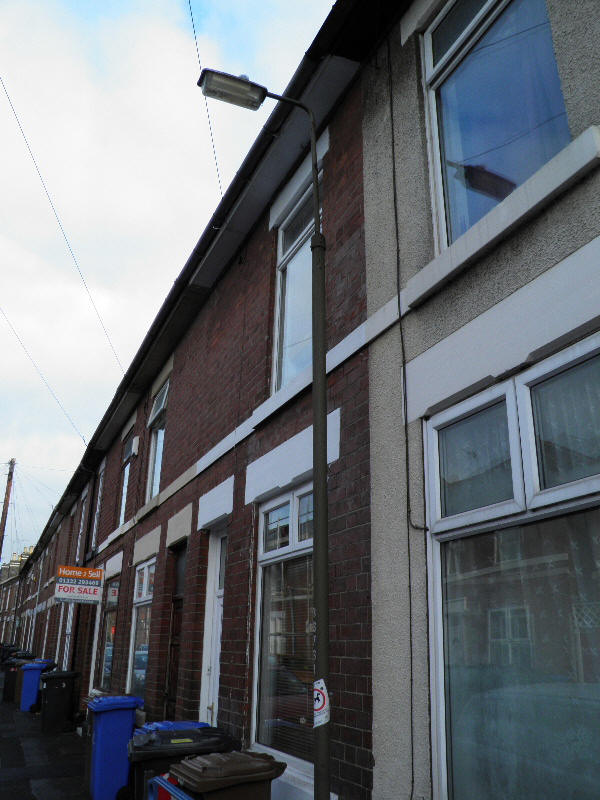

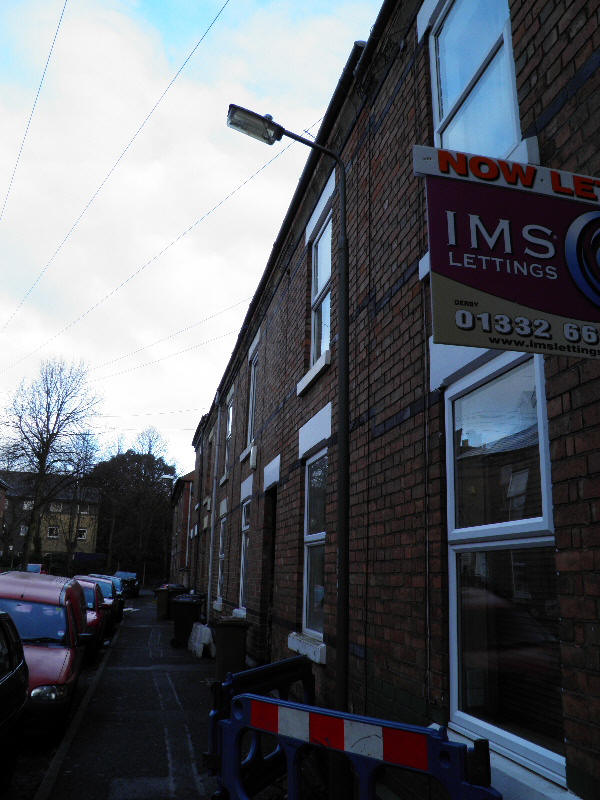

The rest of the outgoing installations still survived, however.

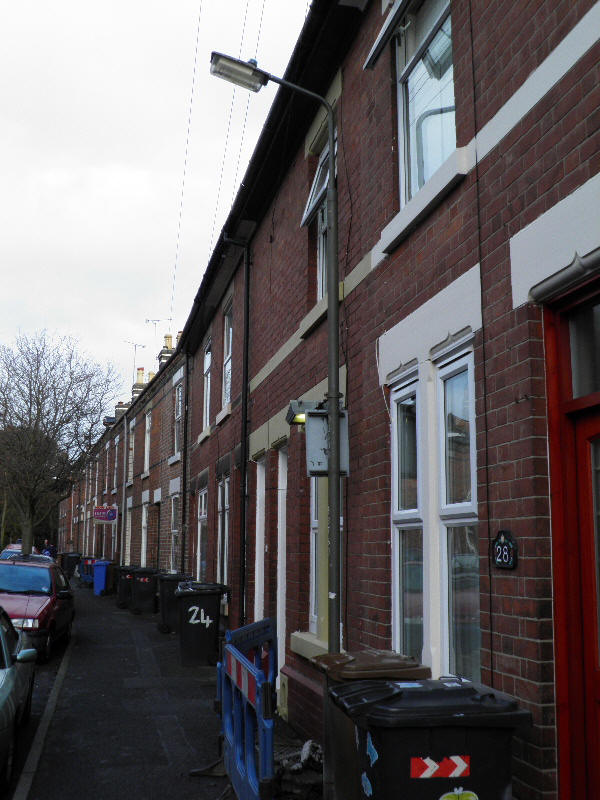

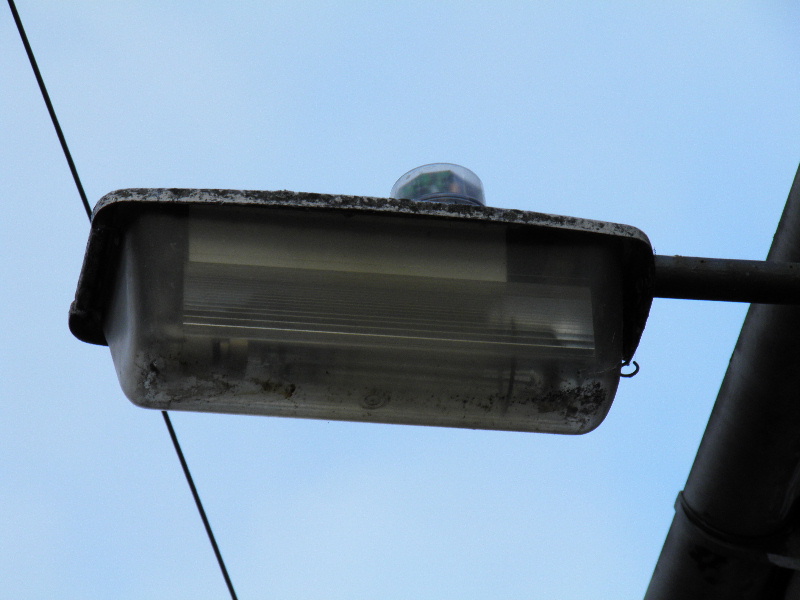

This column was also fitted with a Truesigns T8C signlight unit.

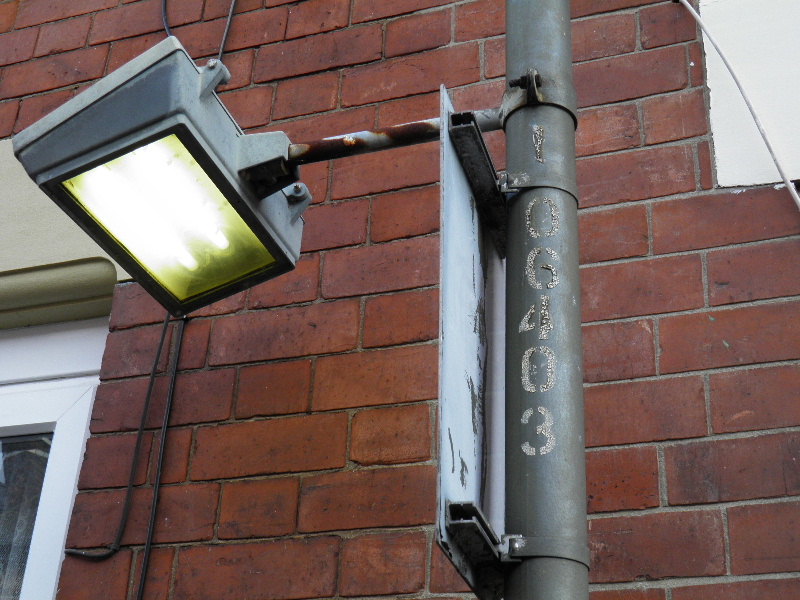

The T8C provided dedicated illumination to a 'One Way' sign plate.

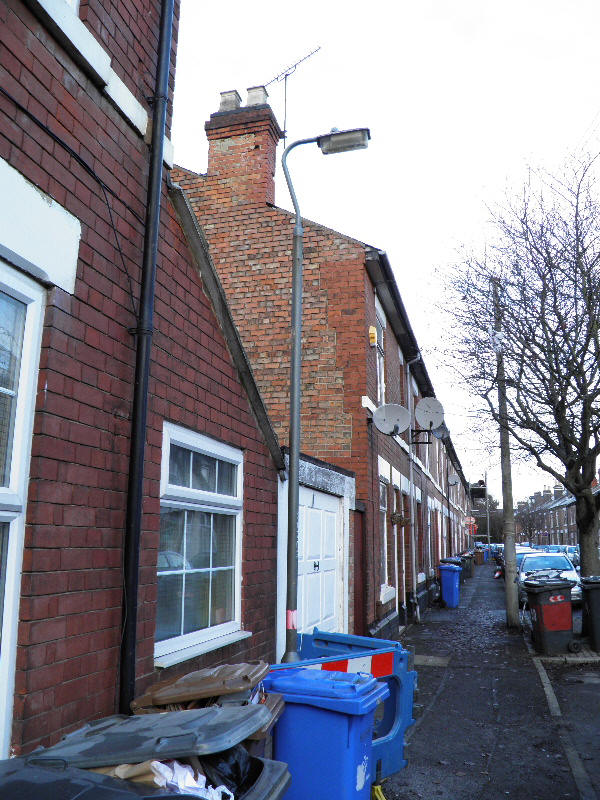

The final two columns both supported brackets that were unique to the street - this example featured a right-angled bracket.
