Pearce Gowshall L68/25

This signlight was installed on post 102294, on Vicarage Road in Mickleover, at the junction of Uttoxeter Road. It was removed for posterity on, or around, Tuesday, 11th May 2010, owing to it its rare internal wiring setup. A newer L68/25 was used as this signlight's replacement.

The inventory record for this sign (as it appeared in 1997) is displayed below:

Unique Number: 102294 Location: JUNC UTTOXETER RD
Postcode: DE3 5EA Road: VICARAGE ROAD
Road Number:   Parish: MICKLEOVER
Sequence Number: 27 Patrol: Y06

Lamp Type: FL Wattage: 8  W Control Type: NO
Lamps/Lantern: 2 Lanterns/Unit: 1 Control Setting: 5
Lantern Type: EX Lantern Manuf:   Control Gear:
Height: 3  m Support Type: SP SIGN ON PLASTIC COATED POST
Bracket Proj'n.:    m Support Finish: B PLASTIC COATED COL/SIGN/BOL
Bracket Type:   U/G or O/H: U UNDERGROUND
Board Code: E76 Status Code: 0 USUAL / NORMAL
Service Owner: U Is this lamp/sign an Isolation Point ?: N
EB Order number:
No-supply sheet: 0 Isol Pt:   / Circuit:   / Seq:

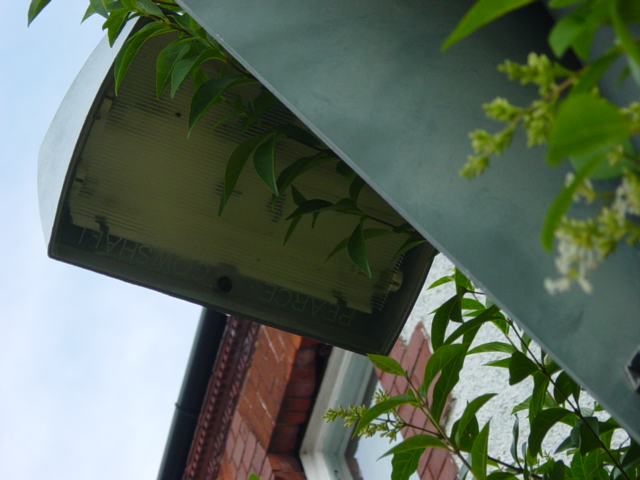

The first few photographs, taken in July 2004, show the signlight when installed.

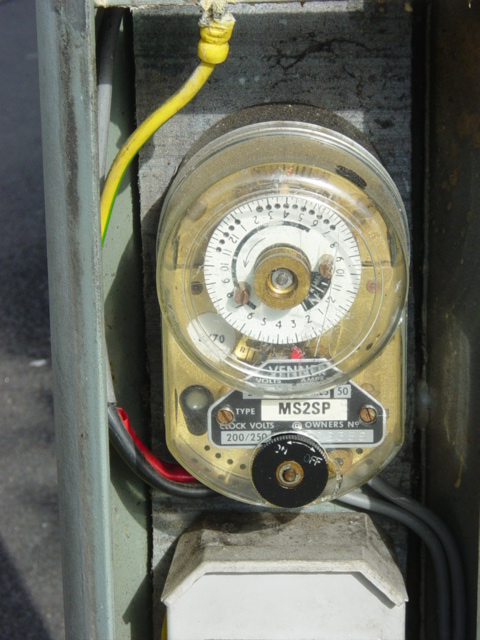

The reason that the signlight is not operating in daylight hours in these pictures (as was standard practice in Derbyshire for many years) was due to it being operated by a Venner MS2SP time switch, fitted in the base. The time switch was installed following complaints regarding the continuous burning of the signlight. However, in the signlight's latter years, the unit again remained lit constantly - perhaps due to the time switch developing a fault.

A double-arm example is pictured below; as can be seen, at least one lamp was operating within daylight hours when this picture was taken. The sign plate also looks old.

The signlight is still in a good condition for its age - the polycarbonate cover features a couple of discoloured lines directly 'below' where the lamps would be situated, though the plastic has not completely yellowed, as it has on some examples. The reduction in burning hours (as a result of the time switch operation) may be the reason behind this.

Surprisingly, the signlight body is not constructed of aluminium (as I thought it was), but of grey plastic, which appears to have once been painted silver.

If you hold your mouse cursor over the above image, the picture will swap to one that shows a similar view of the newer Signature 'Exlite Signlite' unit. The differences between the two designs are very noticeable, not least because of an increase in components on the newer fitting. The empty slots on the older fitting's reflector/gear tray are for fitting the lampholders in the position used when two 6 W lamps are fitted, instead of two 8 W lamps, as is the case here. The capacitor fitted to the older signlight is not original - its predecessor probably developed a fault; thus necessitating the need for it to be replaced.

The real differences between this signlight and later versions occur when the gear tray is removed - firstly, a single 13 W ballast operates both lamps in series, and secondly, the incoming supply cable connects into a terminal block that is fixed to the inside of the canopy. This type of terminal block would never be permitted on modern electrical equipment, owing to the fact that it offers no protection against touching live parts. As can be seen, the gear tray has been refurbished, and all wiring renewed.


The signlight was powered up on Sunday, 5th December 2010. The series operation of the lamps meant that there was a slight delay between the fitting being switched on, and the lamps activating.

Test Voltage (V) Current being drawn at full power (A) Measured wattage (W) Apparent Power (VA) Frequency (Hz) Power Factor True Power (W) Difference (W) Percentage Difference
240.4 0.07 16 17 50 0.91 15.31 -0.69 -4.29
