Derby's Street Lighting PFI Contract
John Street, City Centre
The equipment being removed consisted of the following items in 1997:
Seq. No. | Lamp Number | Location | Lamp Type | Watt | Isolation Point |
1 | 29240 | 1 FROM SIDDALS RD | SXPL2 | 55 | |
2 | 29241 | O/S M. & B. MOTORS | SXPL3 | 55 | |
3 | 29242 | OPP NEW ST | SXPL3 | 55 | |
4 | 29243 | 1ST PAST NEW ST | SXPL3 | 55 | |
5 | 29244 | 2 PAST NEW ST | SXPL2 | 55 | |
6 | 29245 | 3 PAST NEW ST | SXPL2 | 55 |
The following photographs were taken on Sunday, 24th October 2010:

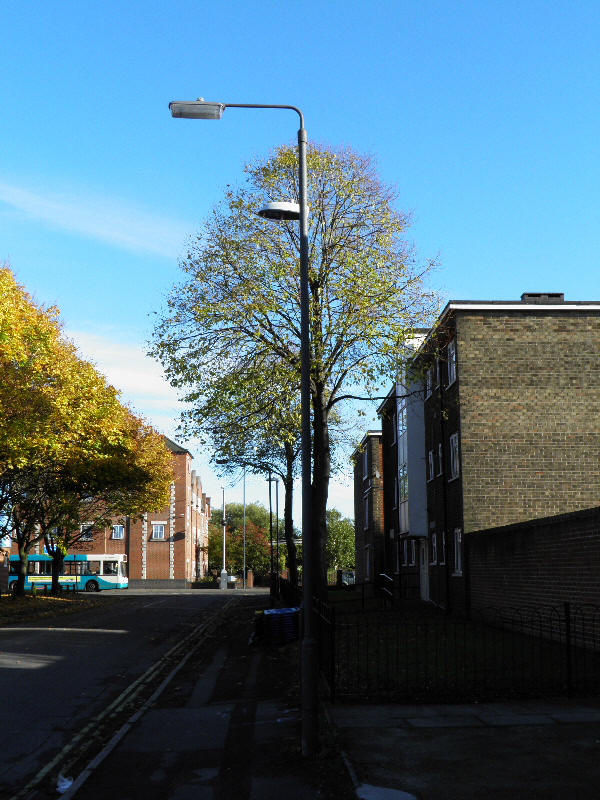

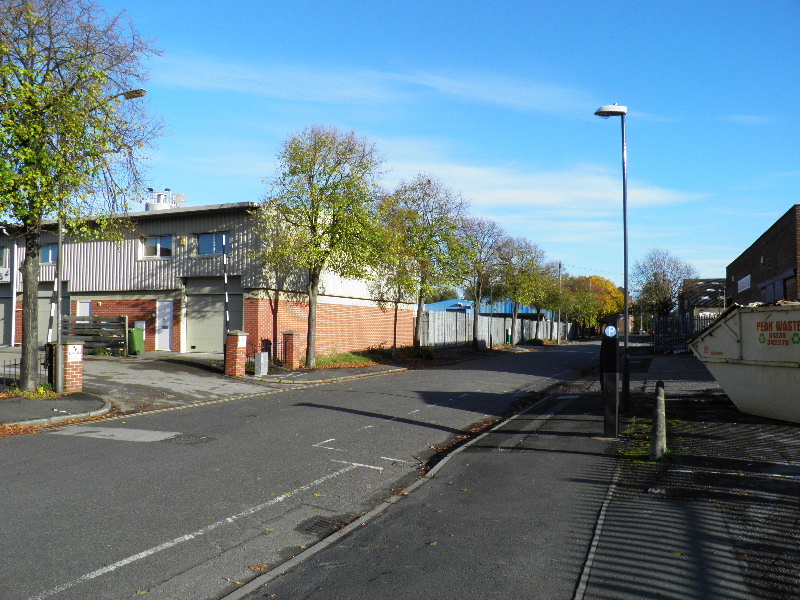

Many of the new columns were installed away from the outgoing columns; presumably, the new locations were found to allow for a more uniform light distribution than the previous column positions did.

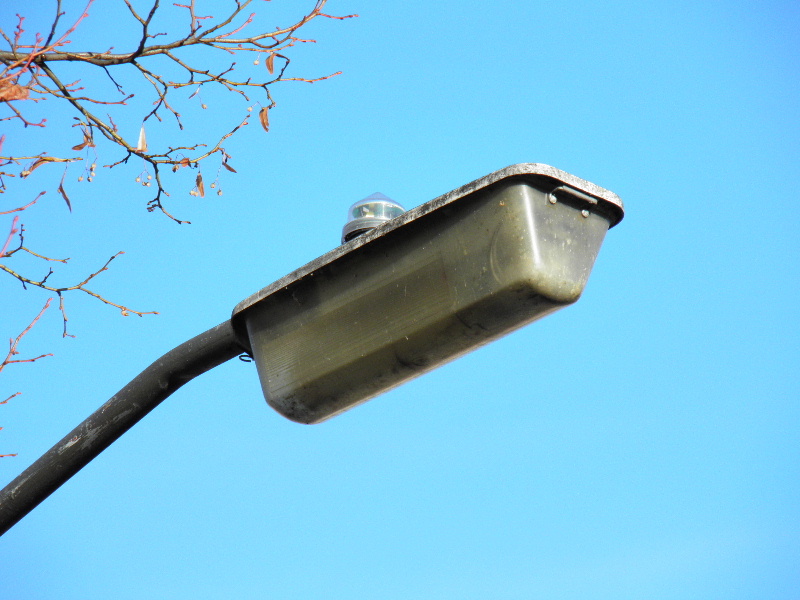

Most of the outgoing lanterns were GEC Z9538s.

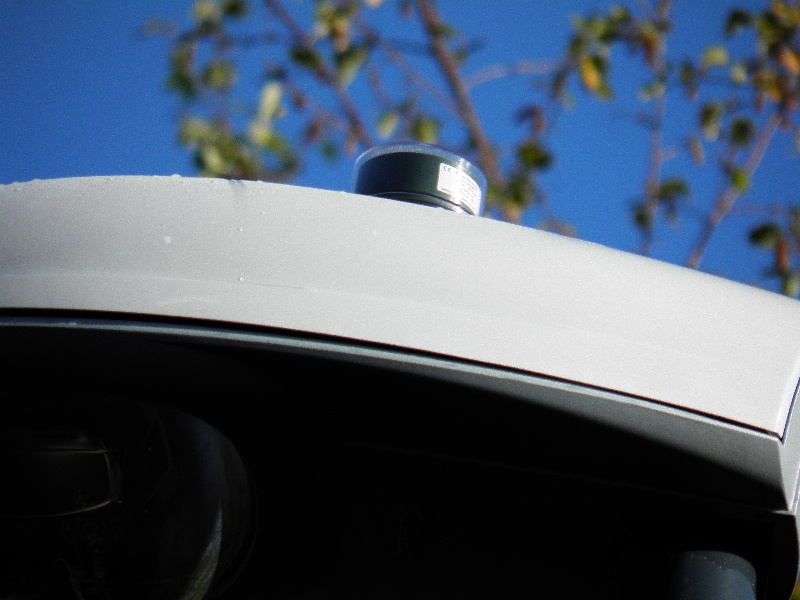

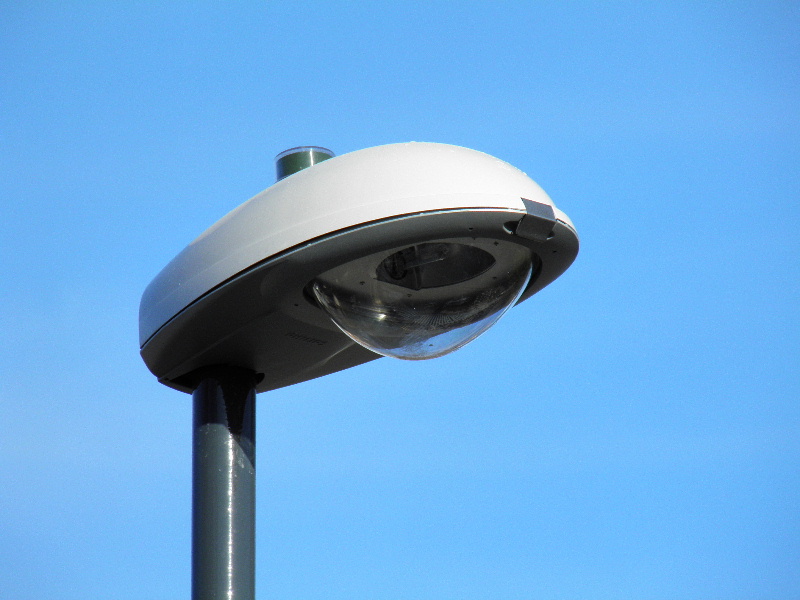

This somewhat abstract view of the replacement Iridium clearly shows the PFI-specification Royce Thompson SC1000 35 Lux photocell.
The solar-powered parking meter will no doubt benefit from having the new Cosmo-White lantern installed alongside it!

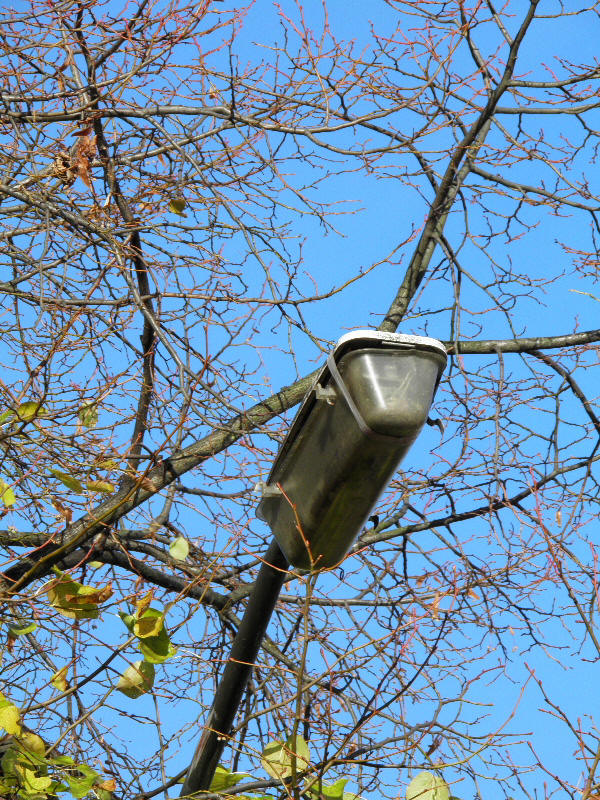

The bowl fitted to this Z9538 was not original - it was actually a second-hand bowl from a Simplex Aries. Owing to the different methods of securing an Aries bowl in comparison to a Z9538 bowl, a length of insulation tape has been wrapped around the assembly, in a vain attempt to hold the bowl in place.

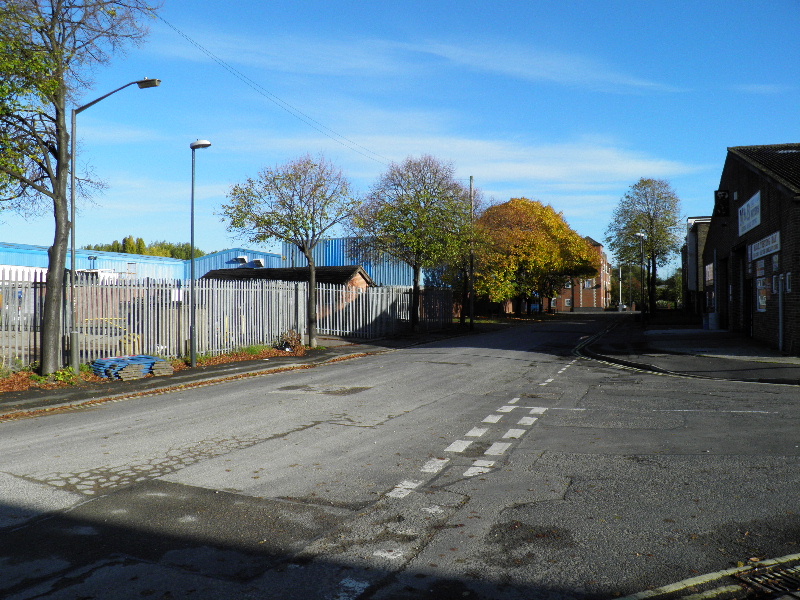

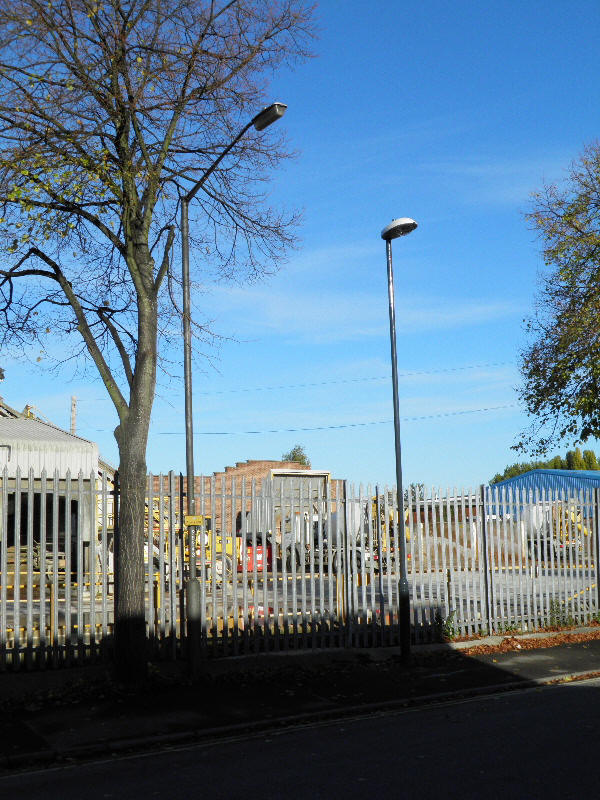

The installation outside the cement works was one of the few to see the new column installed near the outgoing column.
A narrow reflector surrounded the lamp in the new lanterns:

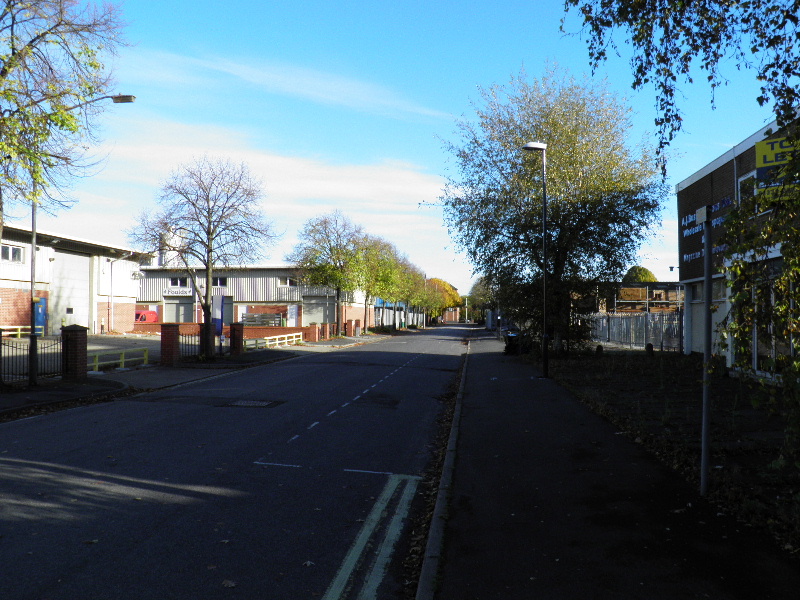

The new column here was installed opposite the aptly-named New Street:
A newer column supporting a Thorn Beta 2 was installed after the junction.

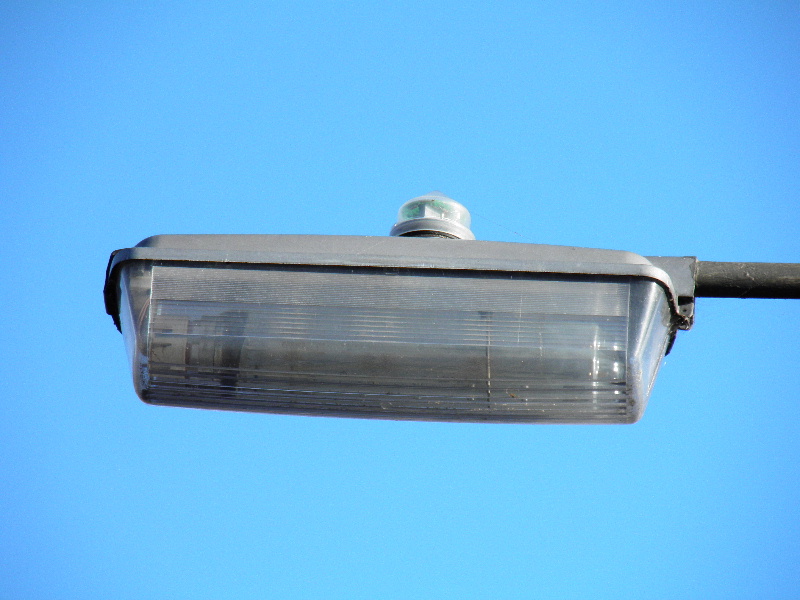

A Philips SOX lamp was fitted in this lantern.

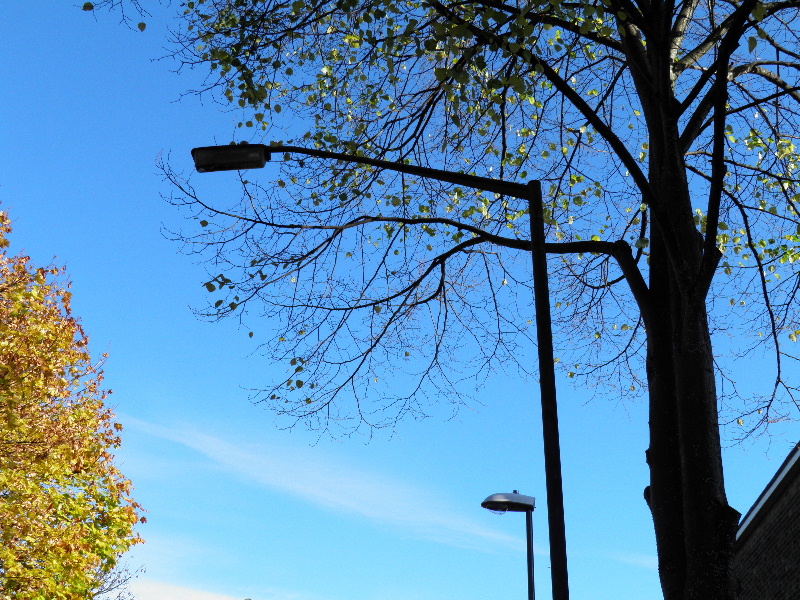

A final Z9538 appears in silhouette below.
