Derby's Street Lighting PFI Contract

Litchurch Lane, City Centre

The equipment being removed consisted of the following items in 1997; given the locations provided for some of the lighting columns, engineers would solely have had to rely on the numbering scheme in order to find individual columns:

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 30156 BY RAILWAY SXPL1 55
2 30157 BY RAILWAY SXPL1 35
3 30158 OPP B R SCHOOL SXPL1 35
4 30159 OS B R SCHOOL SXPL1 35
5 30160 NONE STATED SXPL1 35
6 30161 NONE STATED SXPL1 35
7 30162 NONE STATED SXPL1 35
8 30163 NONE STATED SXPL1 35
9 30164 OPP NIGHTCLUB SXPL1 35
10 30165 OS B R ENG WORKS SXPL1 35
11 30166 OS B R ENG WORKS SXPL1 35
12 30167 OS B R ENG WORKS SXPL1 35
13 30168 NONE STATED SXPL1 35
14 98276 NONE STATED SXPL1 35
15 101239 CORNER OSMASTON RD SXPL3 90
(The sequencing for the signs and feeder pillar is separate to the lighting)
100001 102635 JUNC LONDON RD FL 8
100002 102636 JUNC OSMASTON ROAD FL 8 Y
100003 129039 SPLITTER JUNC OSMASTON RD FL 11
100004 129038 SPLITTER JUNC OSMASTON RD FL 11
200001 107162 CNR OSMASTON RD N/A N/A Y

The following photographs were taken on Sunday, 8th May 2011:

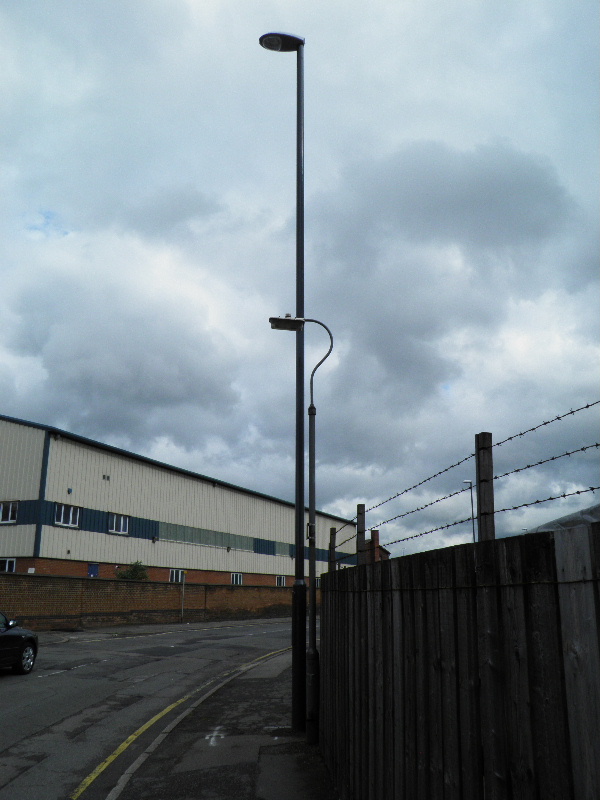

A 6 m hockeystick column supporting a Philips MI 36 55 W SOX lantern was first from London Road.

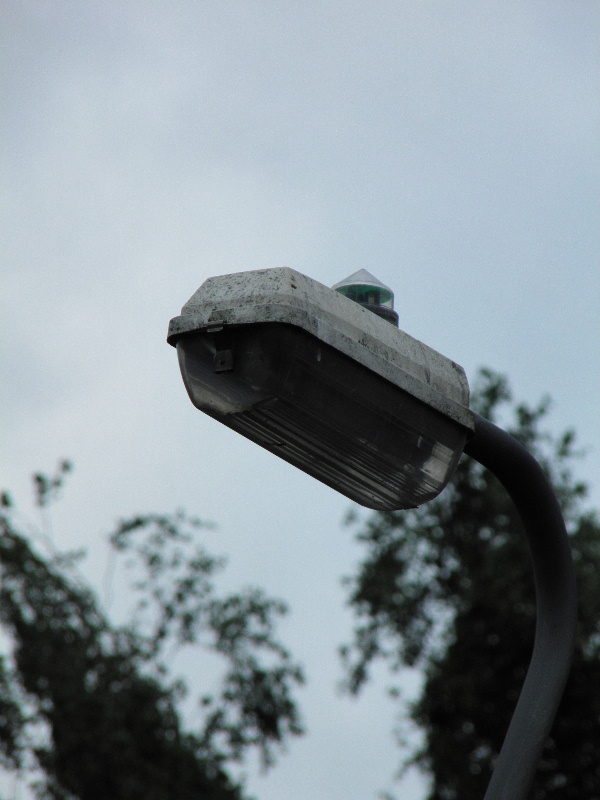

A Royce Thompson Monostar 1000 photocell was fitted to this lantern.

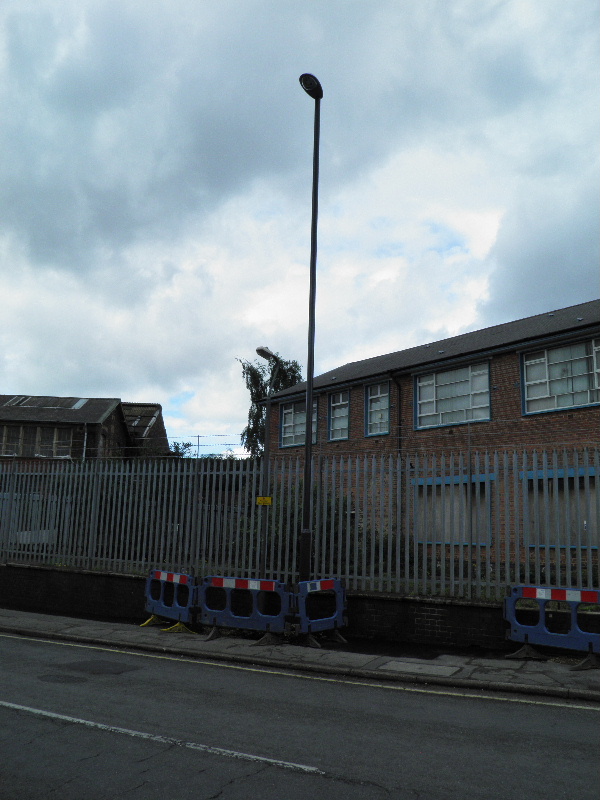

The new columns are 10 m in height, and are fitted with 'medium' (SGS 253) Iridium lanterns; each running 140 W CPO-TW. On the opposite side of the road, a GEC Z9532 35 W SOX lantern can be seen attached to a 15 ft tubular steel column.






The Z9532 may have replaced an earlier lantern, running 80 W MBF, in the late 1970s/early 1980s.






Another Z9532 followed; its column appeared to be slightly newer than the previous example had been.






A Philips MI 26 was next - this is likely to have replaced a faulty Z9532 in the mid-1990s.





The next couple of outgoing installations retained their Z9532s until the end, however.








A small pool of water had gathered in the lowest portion of this lantern's bowl; suggesting either a leaking canopy or loose gasket.




After this, another older swan-necked column (this time, supporting another MI 26) came into view.





A small amount of the bracket's original light green paint could be seen immediately adjacent the lantern.





The subsequent installation was largely the same, although, a Simplex Aries lantern was fitted here. The outgoing column's inspection door had been secured using a 'Tamtorque' band, and was positioned upside-down.

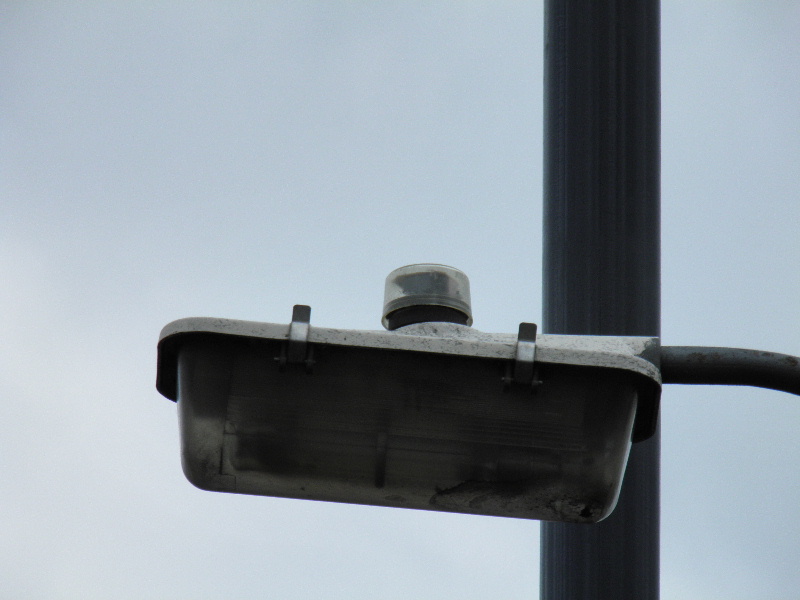

A 1990s' Hy-lite HL4N photocell still continued to switch this lantern.






Another column supporting an MI 26 came next.



The GE SOX lamp fitted in this lantern looked as if it had seen many hours' use. Given that the last of GE's SOX lamps were produced towards the end of 2007, this lamp would probably have completed about three years of nightly service by the time that the column was removed.



A replacement column, likely to date from the 1990s, was fitted with a Thorn Beta 5 lantern.



A length of insulation tape secured the Beta 5's bowl. Also just about visible is the small airgun pellet hole on the lower right-hand portion of the bowl. A Zodion SS3DR photocell was fitted here.



Looking the other way, towards the entrance to the famous railway rolling stock factory (the last manufacturer of rolling stock in Britain, as of 2011), two further outgoing columns can be seen.



Yet another MI 26 was first...



...with a second Beta 5 being next. The angular bracket linking the Beta 5 to the column was the only type of this kind installed on the road. The front of a Class 377 'Electrostar' EMU in Southern Railway livery can just be seen on the right in this picture.
