Derby's Street Lighting PFI Contract

Stockbrook Street, City Centre

The existing lighting consisted of the following items in 1997.

Seq. No. Lamp Number Location Lamp Type Watt Isolation Point
1 107098 OS STOCKBROOK REC N/A N/A Y
2 107099 ADJ B/BROOK CENTRE N/A N/A Y
3 107100 ADJ L35626 N/A N/A Y
4 35608 OS NOS 4/6 SXP1 55
5 35609 O/S NOS 16/18 SXP1 55 Y
6 35610 OPP SIDE OF 34 SXP1 55
7 35611 O/S NOS 38/40 SXPL3 55
8 35612 OPP PRIMARY SCHOOL SXPL1 55
9 35613 OPP NO 62 SXPL1 55
10 35614 OPP PELHAM ST SXPL1 55
11 35615 O/S BURNAGE CT CAR PARK SXP3 55
12 35616 SIDE NO 10 BURNAGE CT SXPL3 55
13 35617 OPP SIDE OF 84 SXP1 55
14 35618 OS NOS 98/100 SXPL1 55
15 35619 OS CHURCHSIDE WALK SXPL3 55 Y
16 35620 NEAR CHURCHSIDE WK SXP1 55
17 35621 ON GREEN AREA SXPL1 55
18 35622 ON GREEN AREA SXP1 55
19 35623 OPP NO 215 SXPL1 55
20 35624 ON BUS STOP NR 79 SXP1 55
21 35625 OPP COMMUNITY CENTRE SXPL3 55
22 35626 OPP COMMUNITY CENTRE SXP3 55
23 35627 NEARLY OPP NO 290 SXP1 55
24 35628 OS NO 306 SXP1 55
25 35629 OPP MOSS ST SXPL3 55
26 101626 OPP NOS 338/340 SXPL1 55
27 106388 JUNC ABBEY ST FL 8
28 106389 JUNC WOODS LN FL 8
29 106390 JUNC WOODS LN FL 8

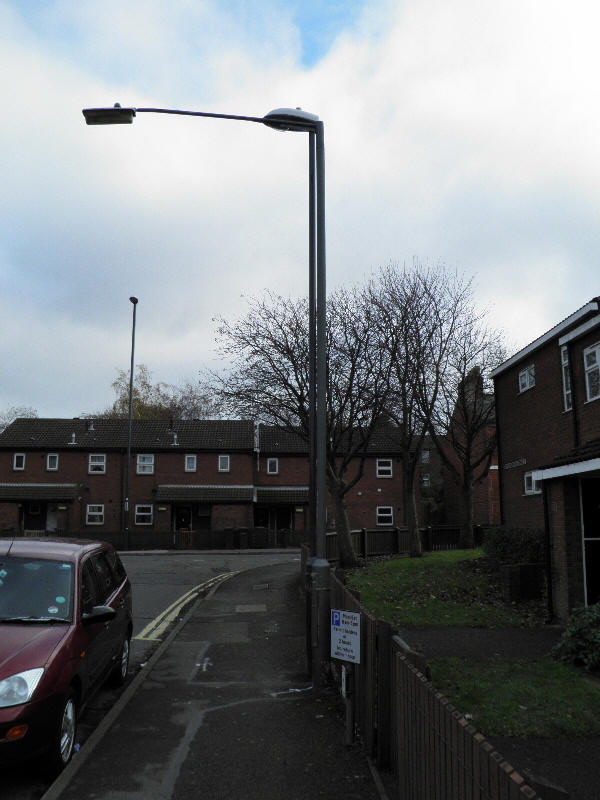

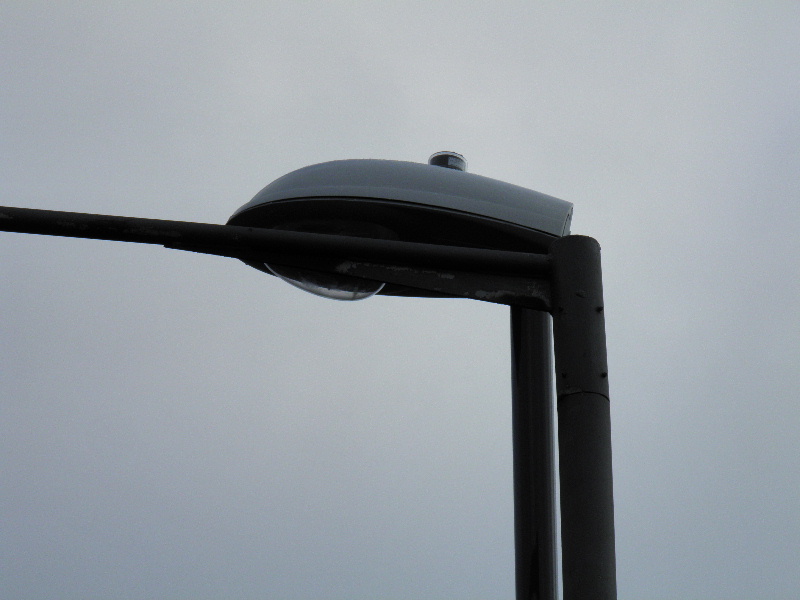

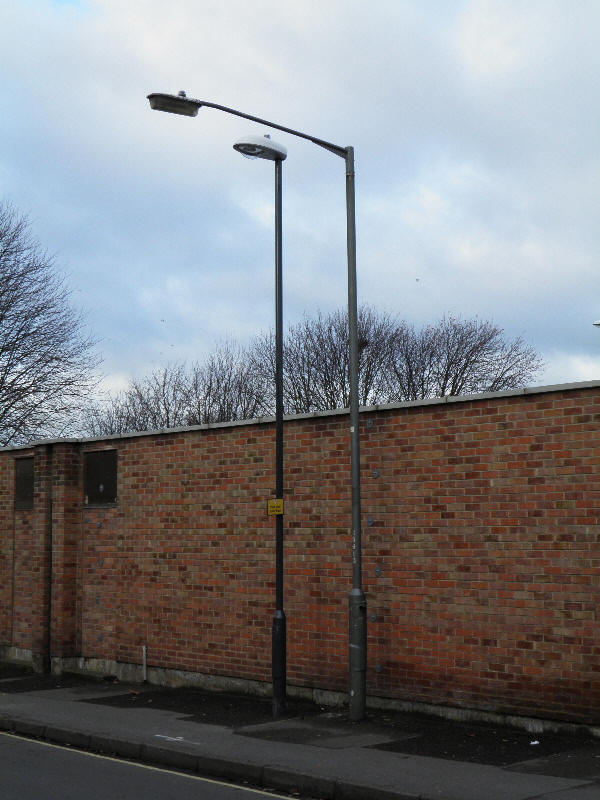

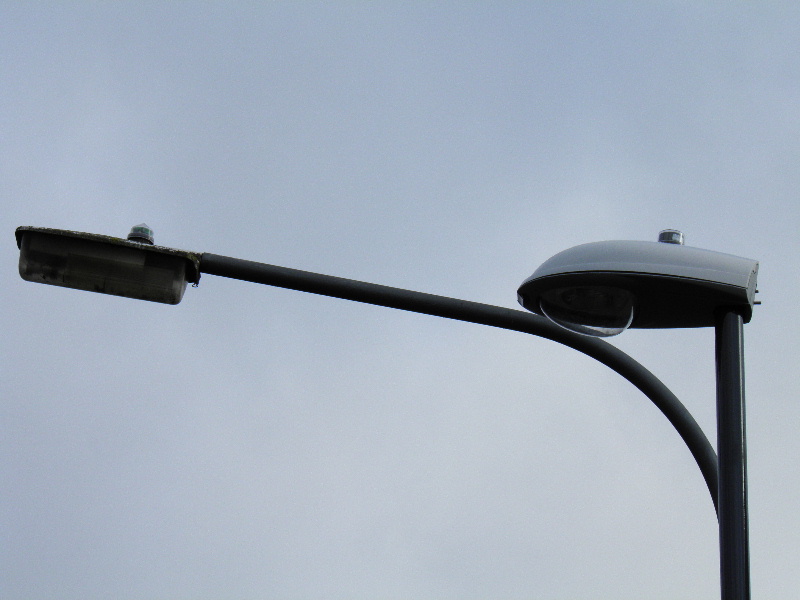

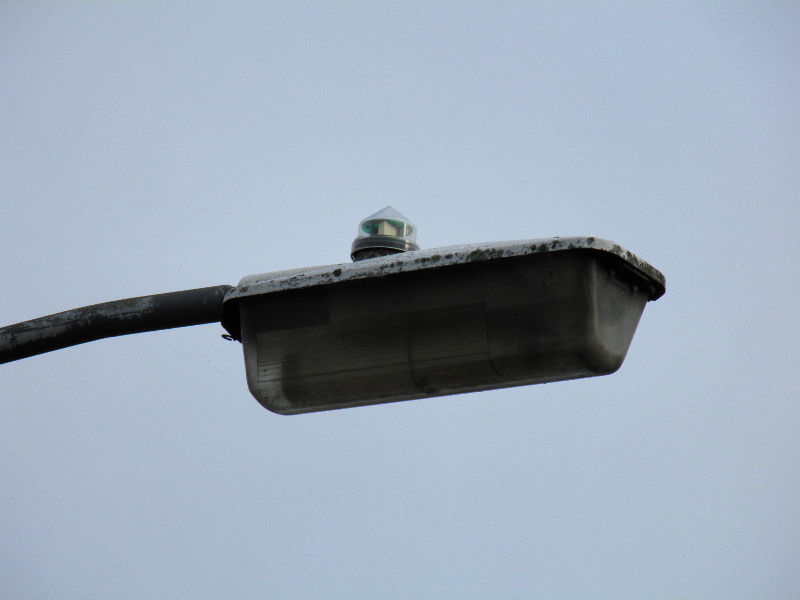

The following photographs were taken on Sunday, 21st November and Saturday, 27th November 2010. Most of the outgoing lanterns along this road were GEC Z9538s.

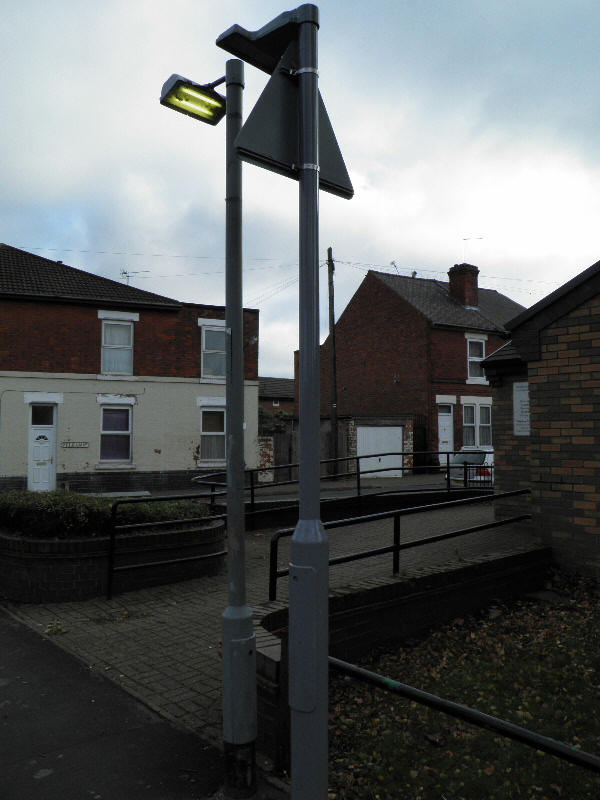

The illuminated signposts were also up for renewal at the time - the sign plate warning of road humps had already been transferred to the new post at the time of photographing. The still-operating outgoing Forest City LA428 signlight suggests that the new Simmonsigns LUA was not yet in use, however.

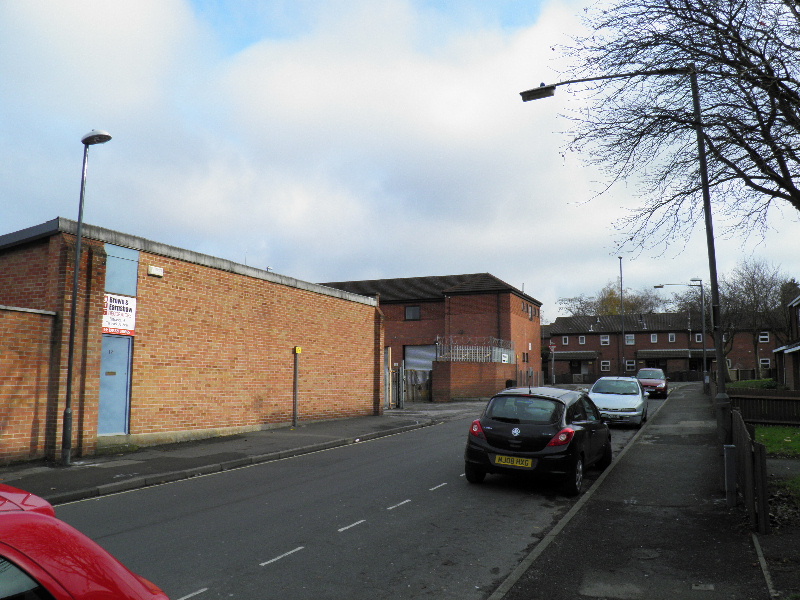

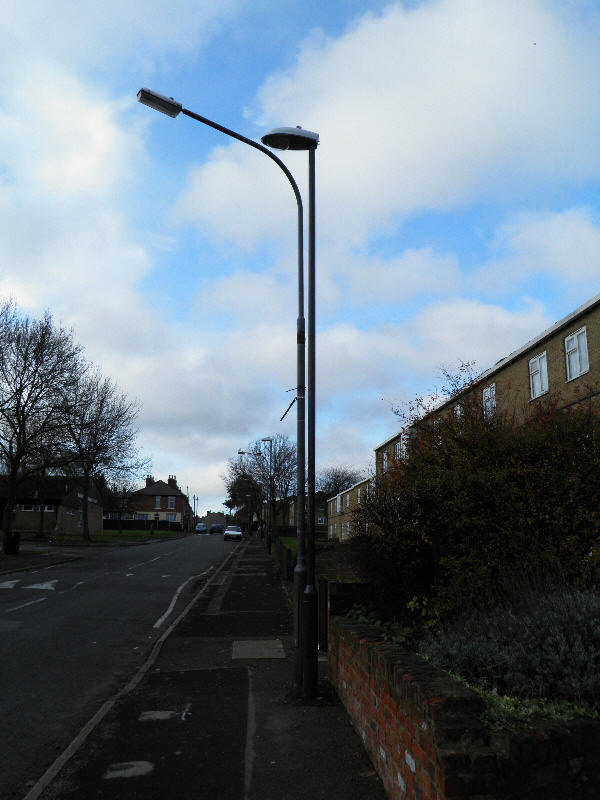

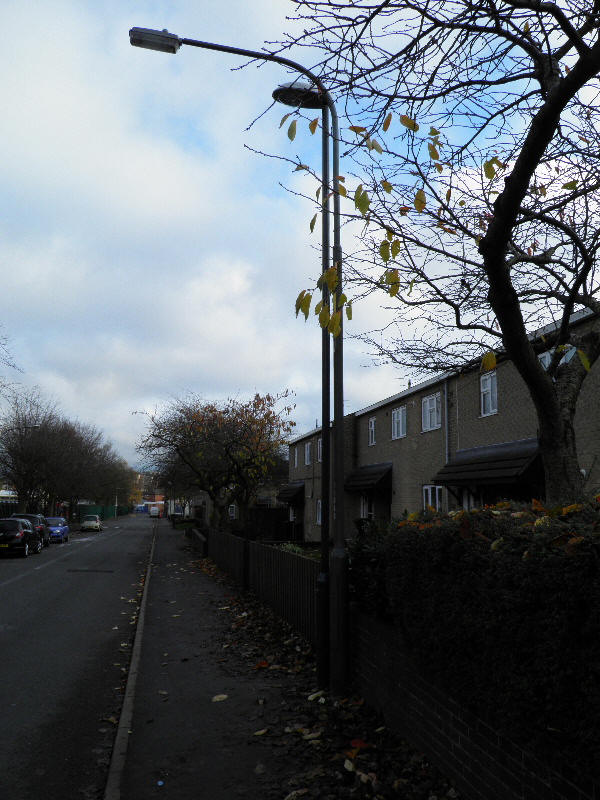

The columns on the longer part of Stockbrook Street were of a different design to those seen earlier were.

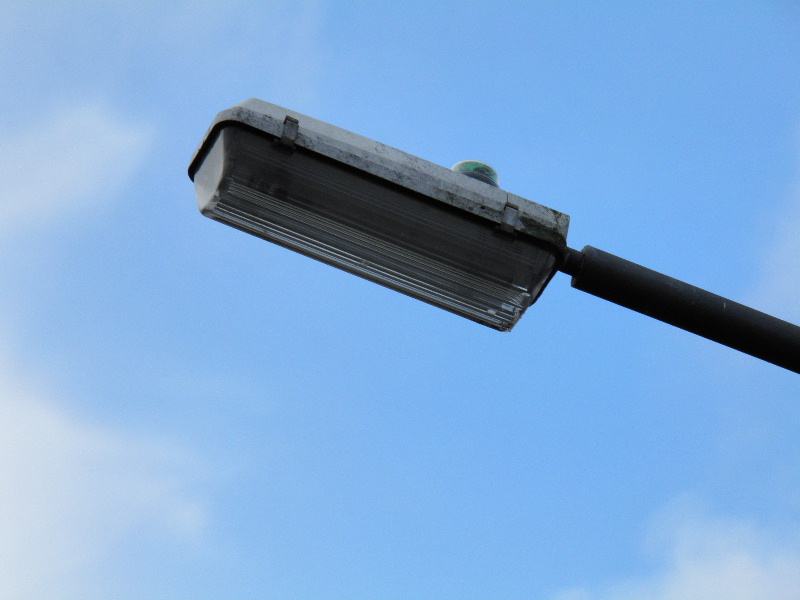

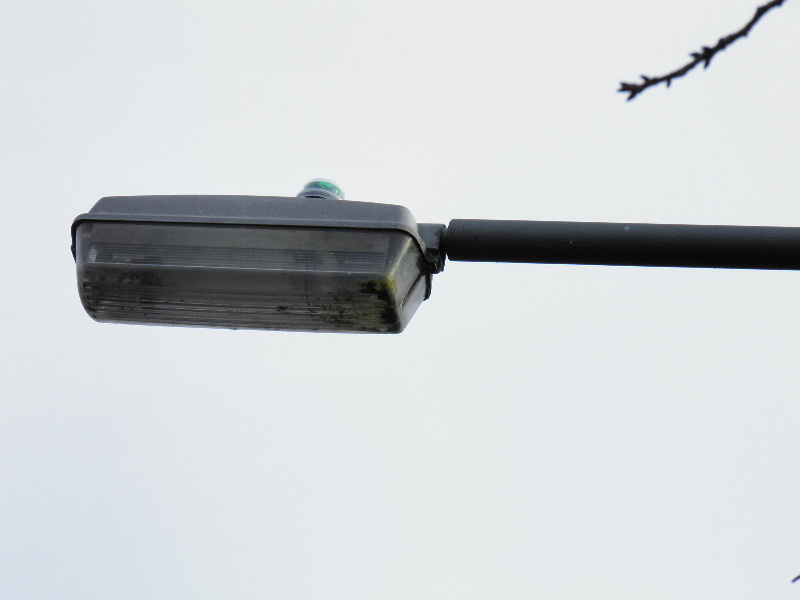

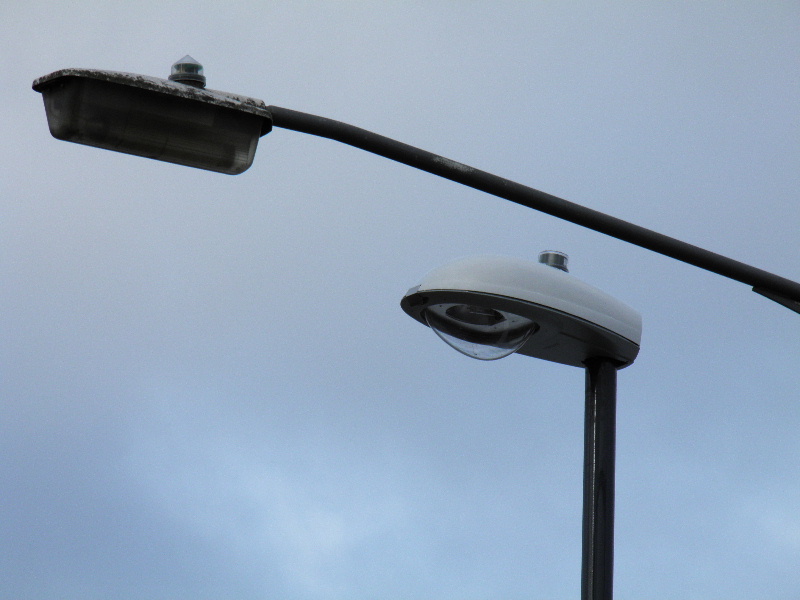

A 1980s' Thorn Beta 2 brought a temporary change to the outgoing lantern type.

A Philips MI 8 / CU Phosco P224 followed.

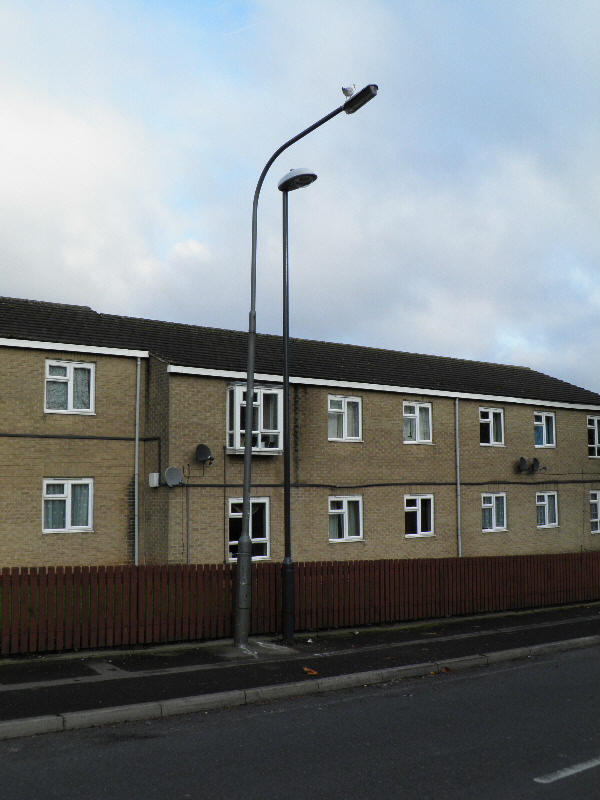

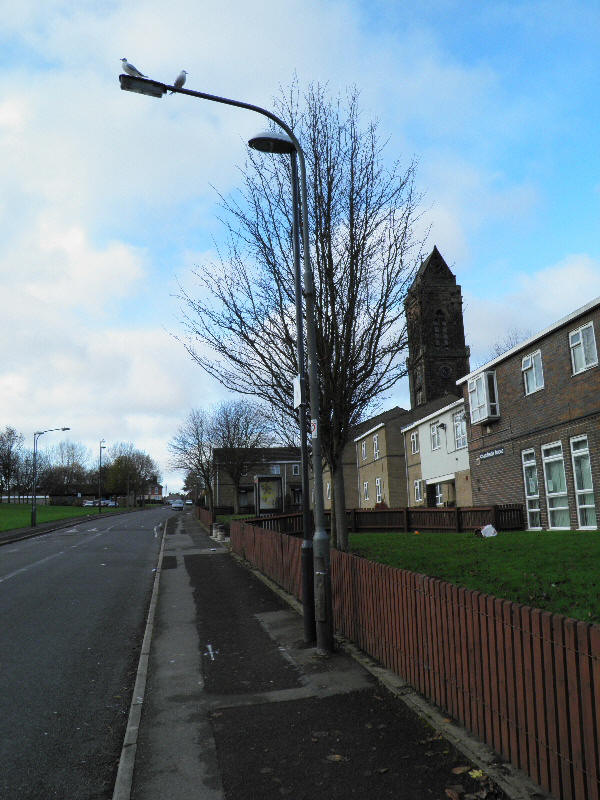

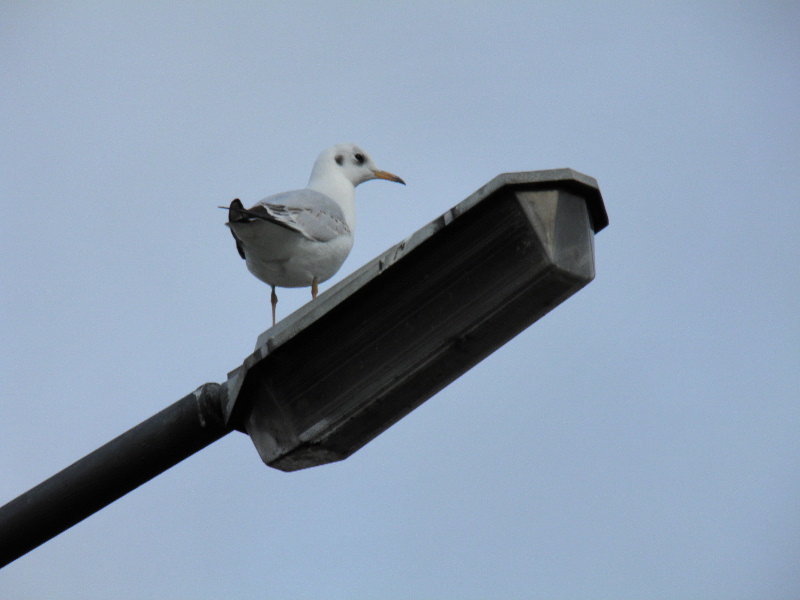

I think the gull may have been a little lost!

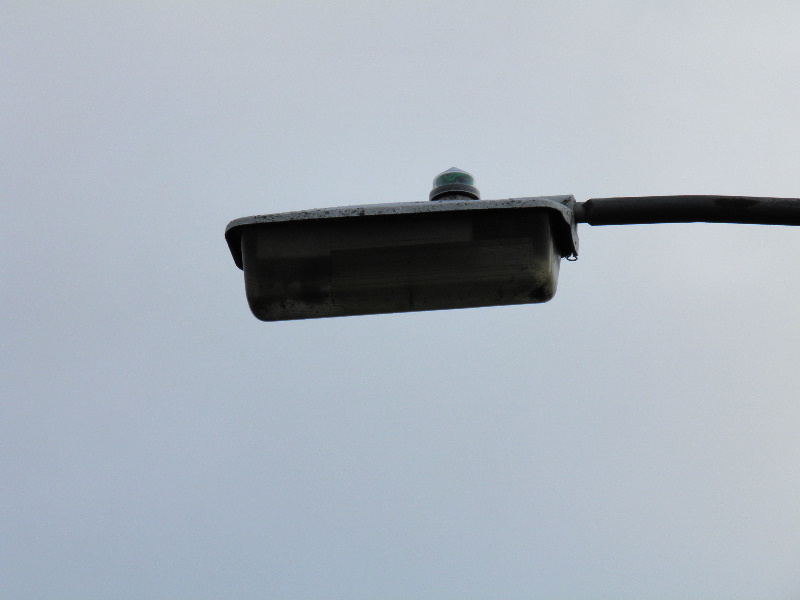

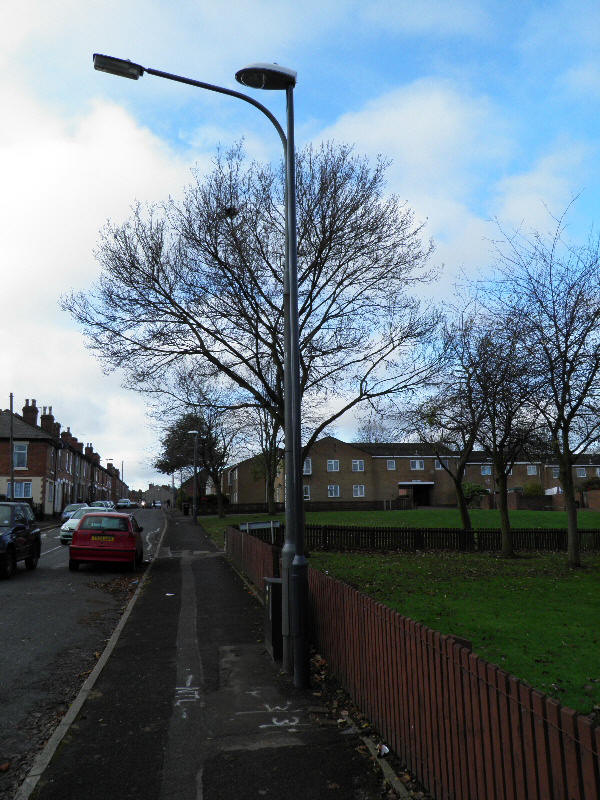

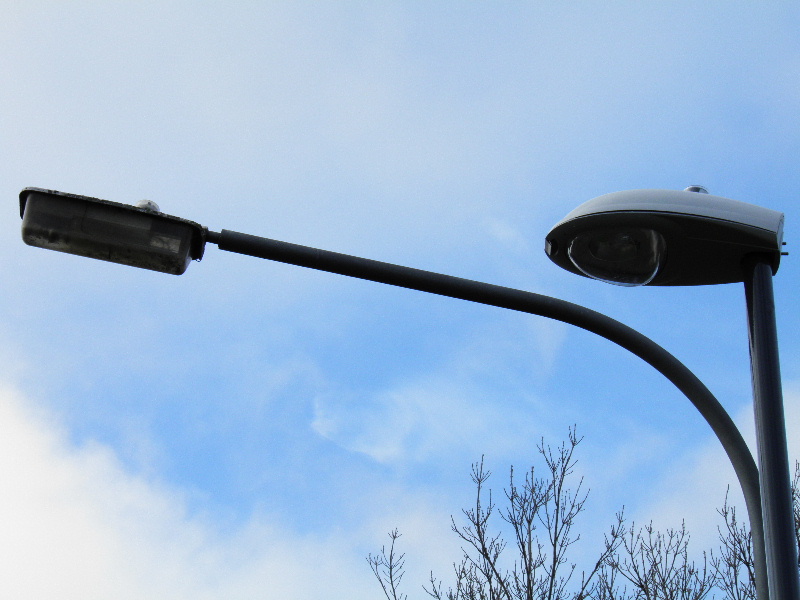

Philips MI 36s were also fitted to a couple of columns:

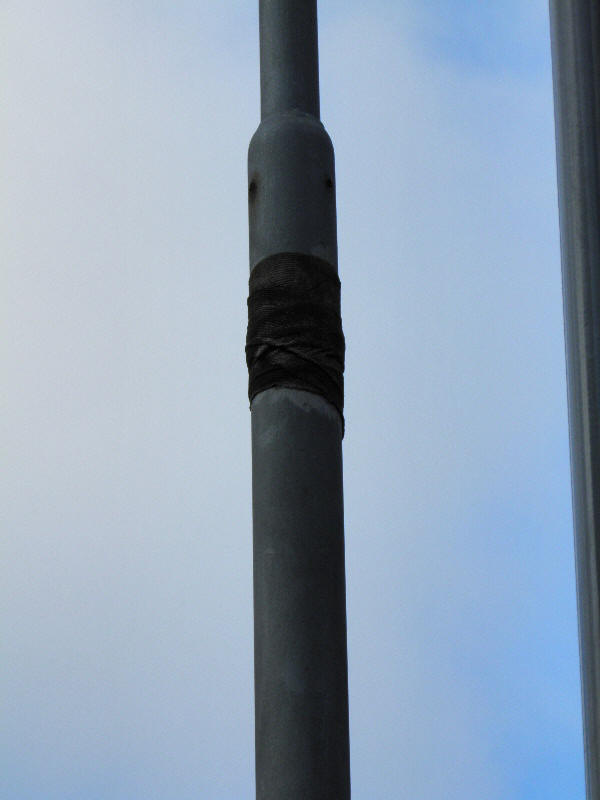

A length of "Denso" tape had been wrapped around the column/bracket joint; presumably in an attempt to protect the metal against corrosion. These Stewart and Lloyd columns were probably over 40 years old by the time that they were removed, so they'd had a good innings.

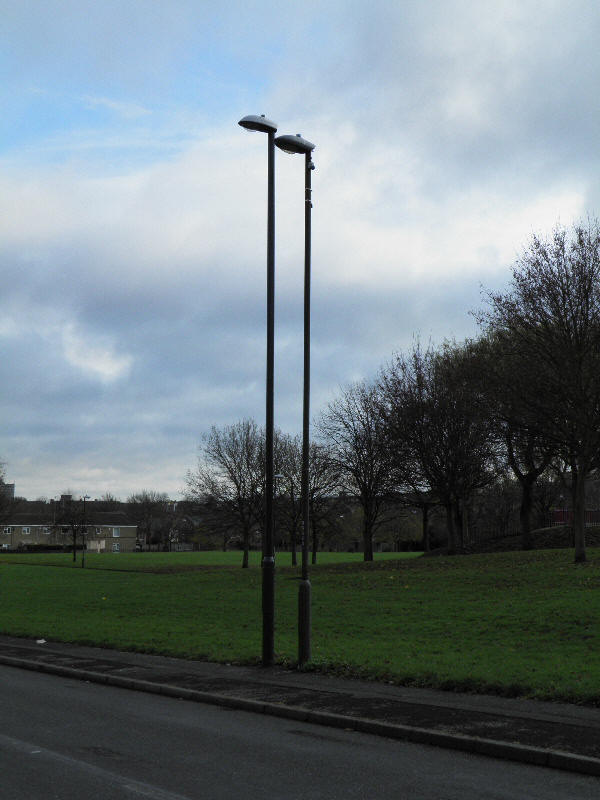

An 8 m column supporting a WRTL Arc was also due for replacement. The column was fitted with an outdoor power socket, which would have provided a power supply to a portable CCTV camera when required. The replacement column is also 8 m in height (in comparison to the other new columns, which are 6 m in height), so the camera will probably be fitted to this column from time-to-time as well.

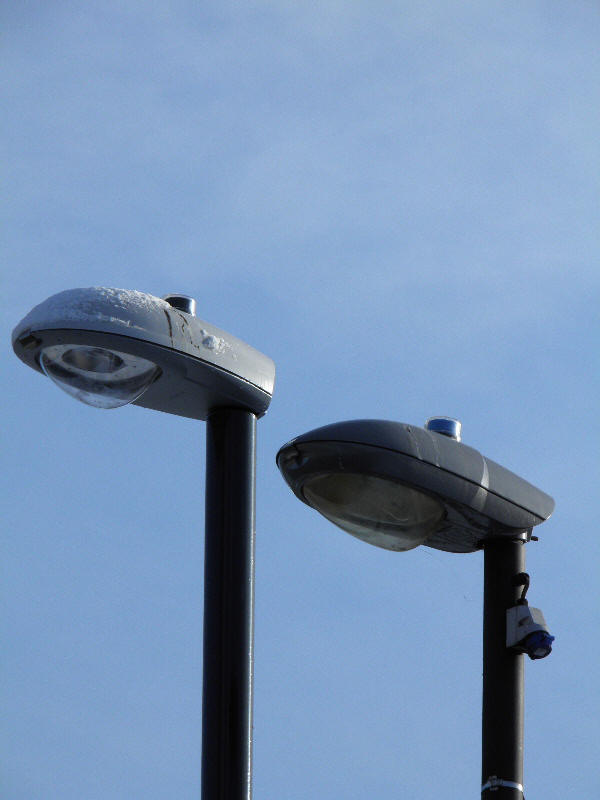

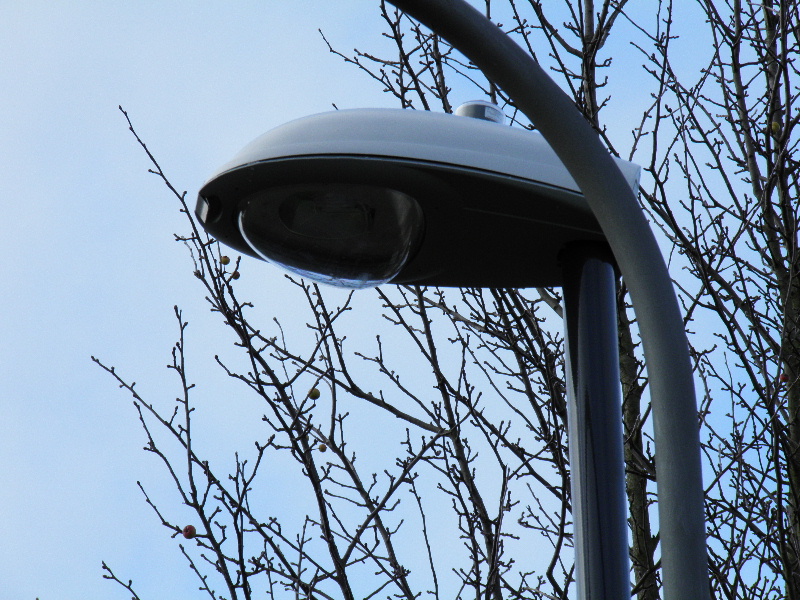

The similarities between the new Iridium and Arc are very apparent here:

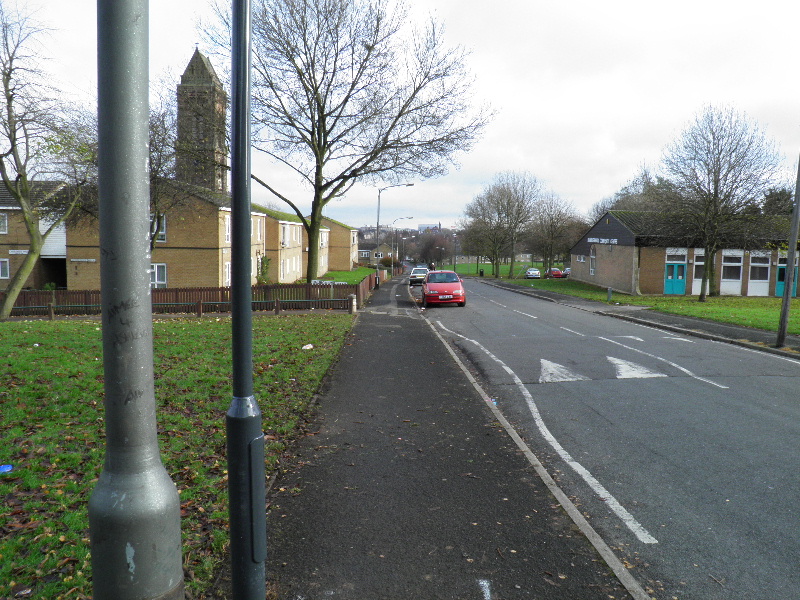

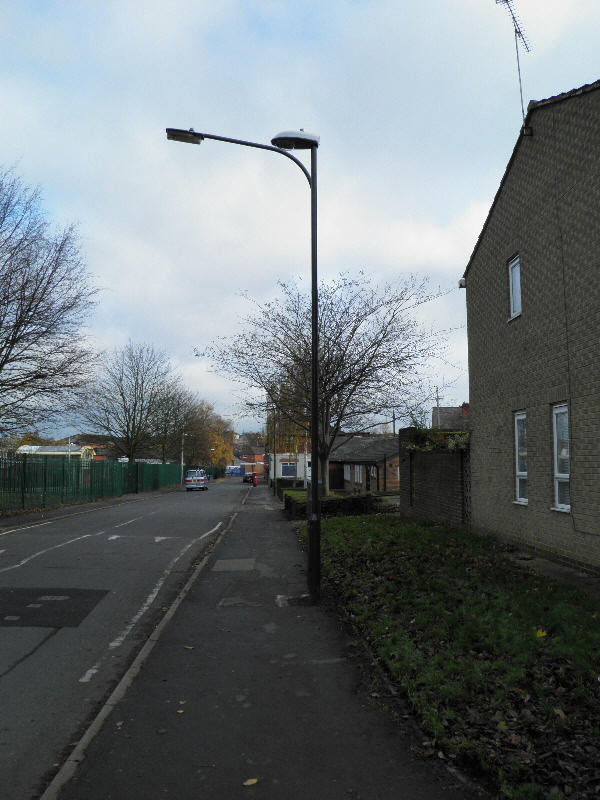

Looking back down the hill for the final photograph:
